Description
This kit fits a 1979-1993 Fox body and has the A-Pillar bars routed thru the dash and will certify 25.2 (6.00 seconds at 3200 lbs max) or 25.3 (6.50 seconds at 3600 lbs max).
Trying to decide what level of cage you need for your hot rod?

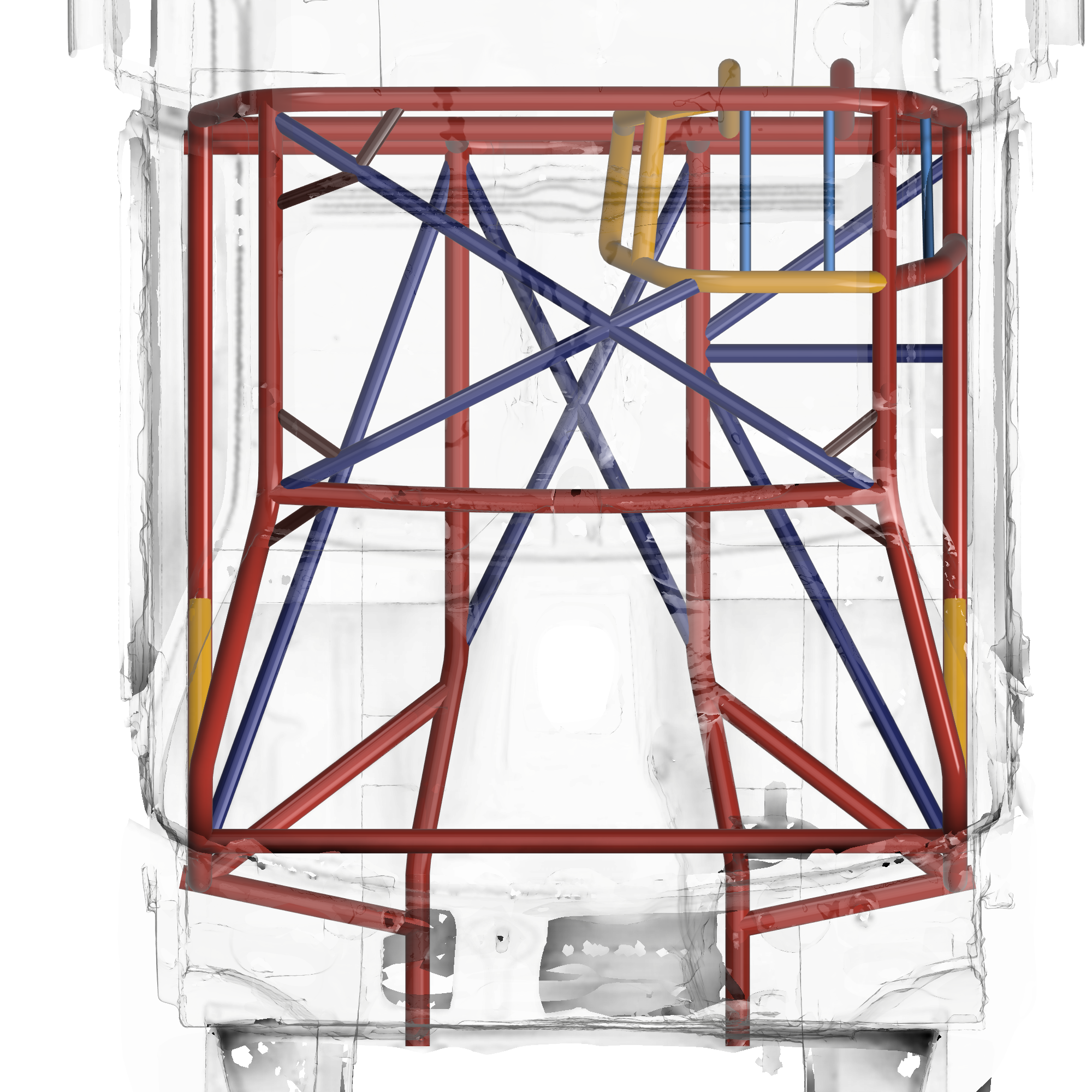

Our Cages are CAD designed from cars we 3D scan to give you a great fit! Only available in 4130 chromoly and should be tig welded.
Standard Options
- Tubes are cnc notched and bent!
- We etch the saddle marks into the tubes to show where they land, no measuring! This saves you valuable time fitting the assembly together.
- We also etch a mark in the middle of the main hoop to quickly center it to your chassis.
- Each tube has a specific part number etched in it so you can quickly locate it in you instructions.

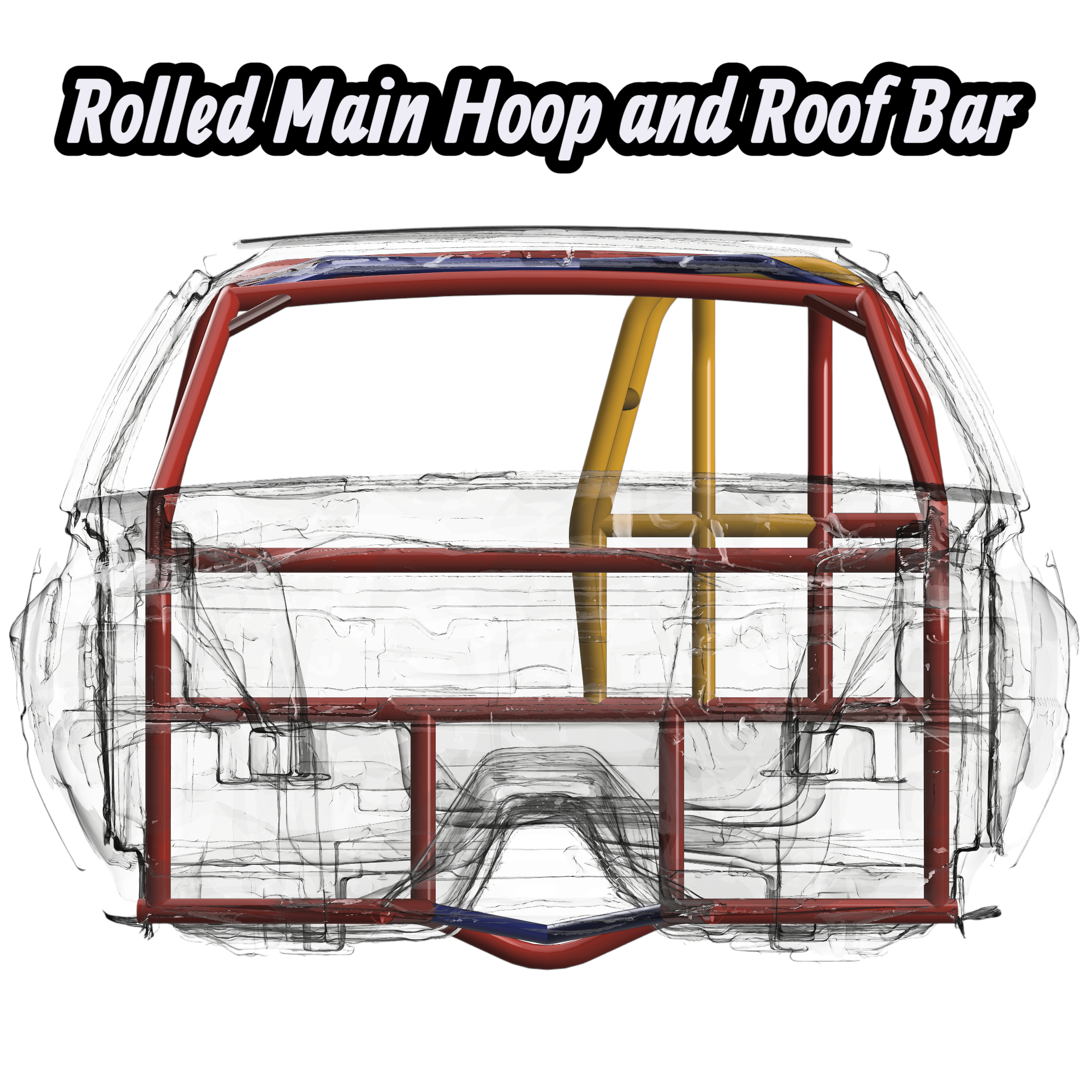

- Main hoops and roof bars come “rolled” for a natural fit to the roof line.
- 1-piece A-Pillar bars make is easier to assemble and saves on welding.

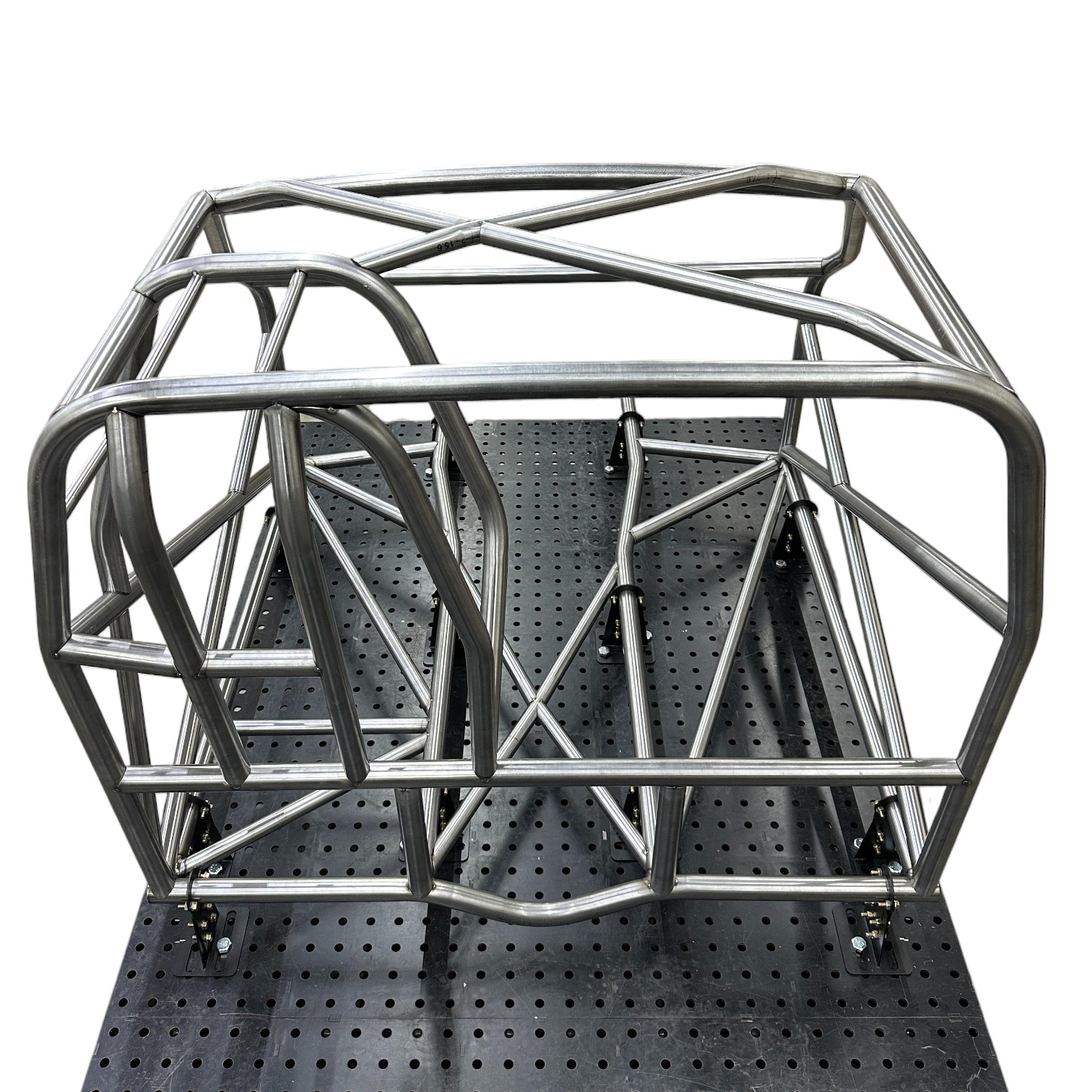

- This cage version is designed to fit between the factory inner rockers so the cage can be welded outside of the car. If you opt for the optional “containment” funny car cage that is wider for the wrap around style seats the cage will become wider than the inner rockers and must be welded in the car or the rockers will need spread to install.
Additional Options
- Get your kit “Fully Prepped”
- Tubes are fully polished are ready to weld. This also makes them ready for paint.
- Saddles are hand barrel sanded.
- Inside of tube is sanded near the weld zone.
- Outside of tube is deburred.
- Cages can be customized to fit your specific needs, check the drop downs or contact us.

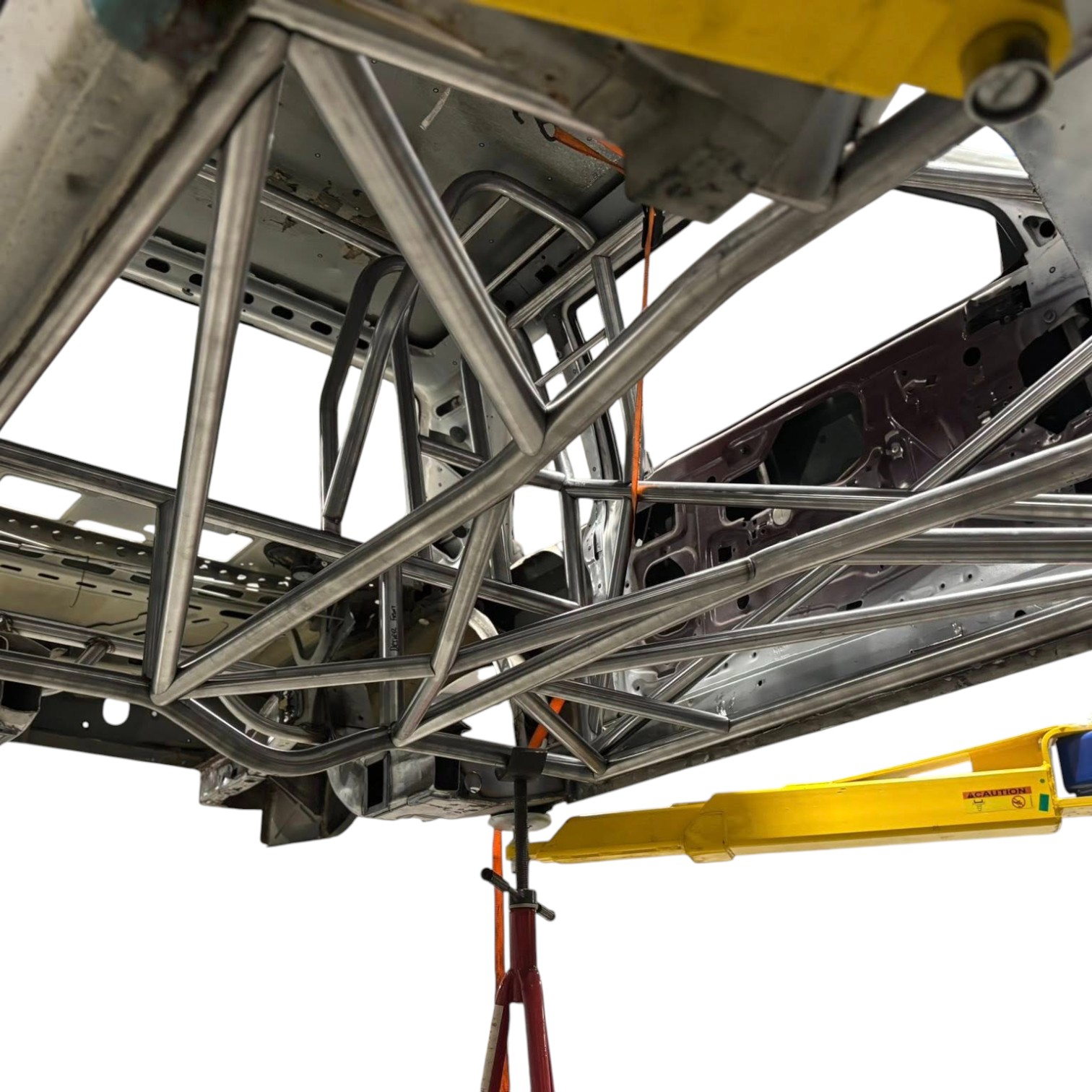

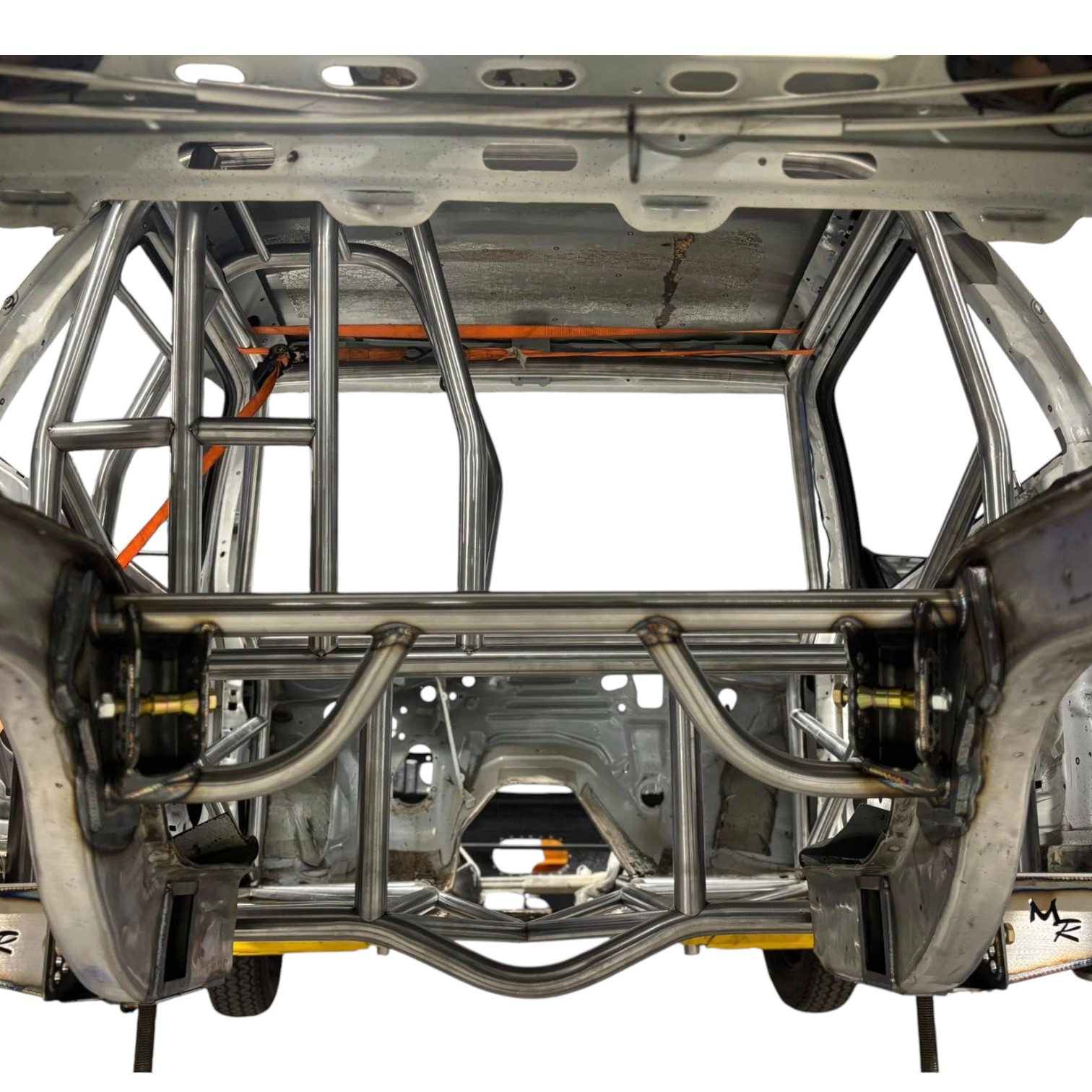

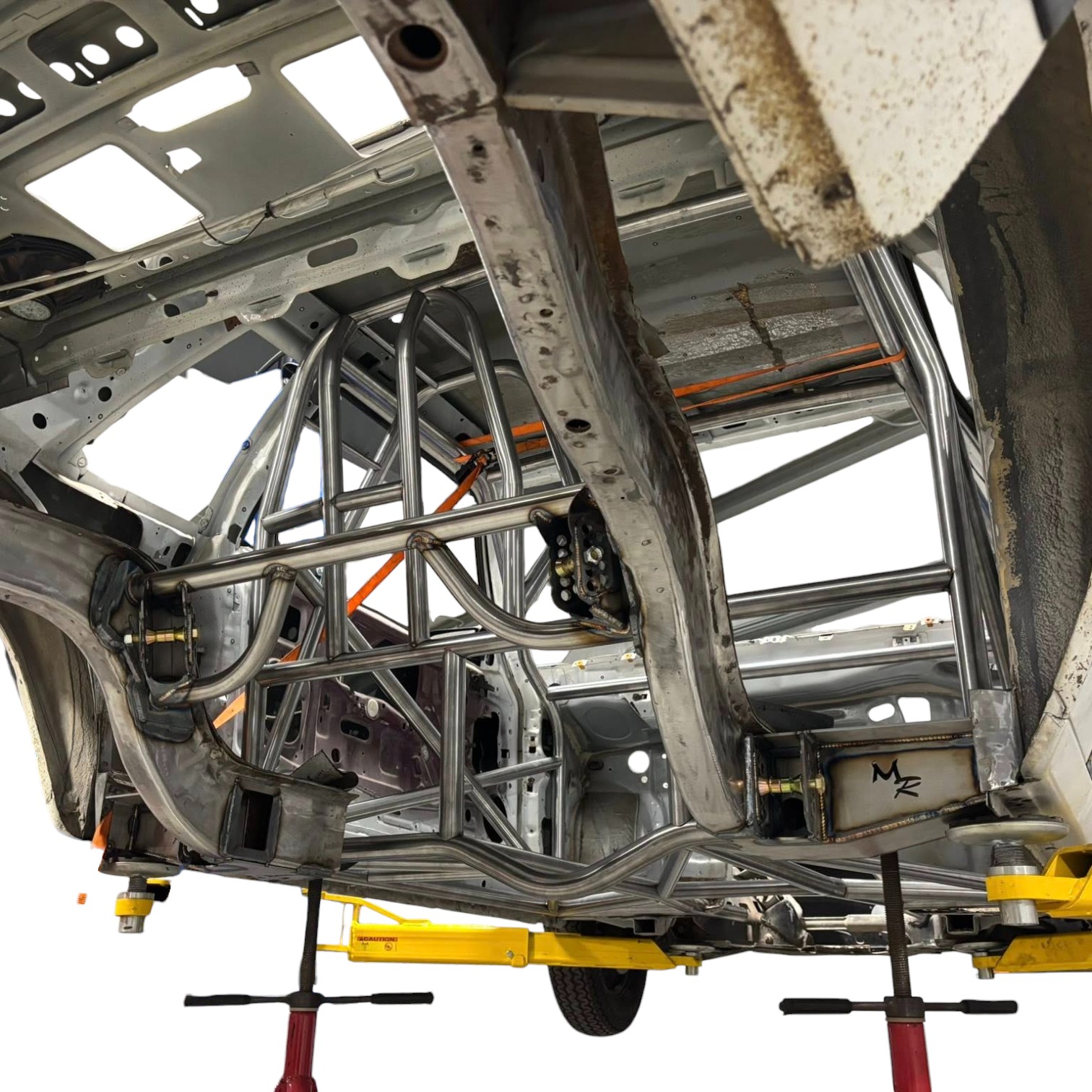

Check out our cage going into Vasko Speed and Performance’s shop car build!
https://www.youtube.com/watch?v=yZOJhTuKlsU&t=10s
https://www.youtube.com/watch?v=Z3g109eIfaI&t=38s
Click the links below for popular items you may want with your cage!

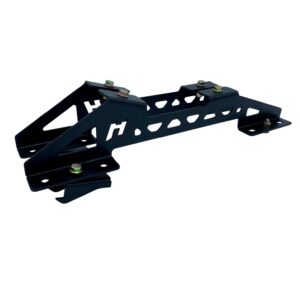

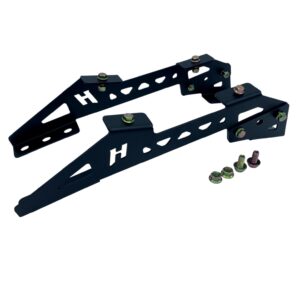

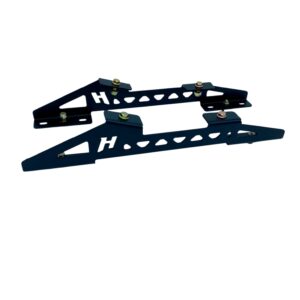

HRS Seat Mounts and Accessories
Shipping
- We use oversized pallets made to ship your cage.
- Tubes are banded and screwed to pallet
- Entire pallet is protected with shrink wrap
- A packing list is included for tubes ordered
- We ship flat rate LTL in the US 48 contiguous states,
- You will need a commercial location with unloading capability
- Additional charge for residential
- Custom shipping quotes made for other destinations
- Select “Ground Shipping” at checkout or pickup if you’re local (Overnight not available)
- No returns on roll cage purchases
