Description
This kit fits a 1979-1993 Fox body and has the A-Pillar bars routed thru the dash and will certify 8.50. This cage version is designed to have a tight fit to the roof, A-pillars and doors. It will be built in the car but may be dropped down slightly to help weld it if you put access holes under the floor plates. The main hoop lands on the bulkhead to give the driver more room in the car.
Trying to decide what level of cage you need for your hot rod?
Our Cages are CAD designed from cars we 3D scan to give you a great fit! Only available in 4130 chromoly and should be tig welded.
Standard Options
- Tubes are cnc notched and bent!
- We etch the saddle marks into the tubes to show where they land, no measuring! This saves you valuable time fitting the assembly together.
- We also etch a mark in the middle of the main hoop to quickly center it to your chassis.
- Each tube has a specific part number etched in it so you can quickly locate it in you instructions.

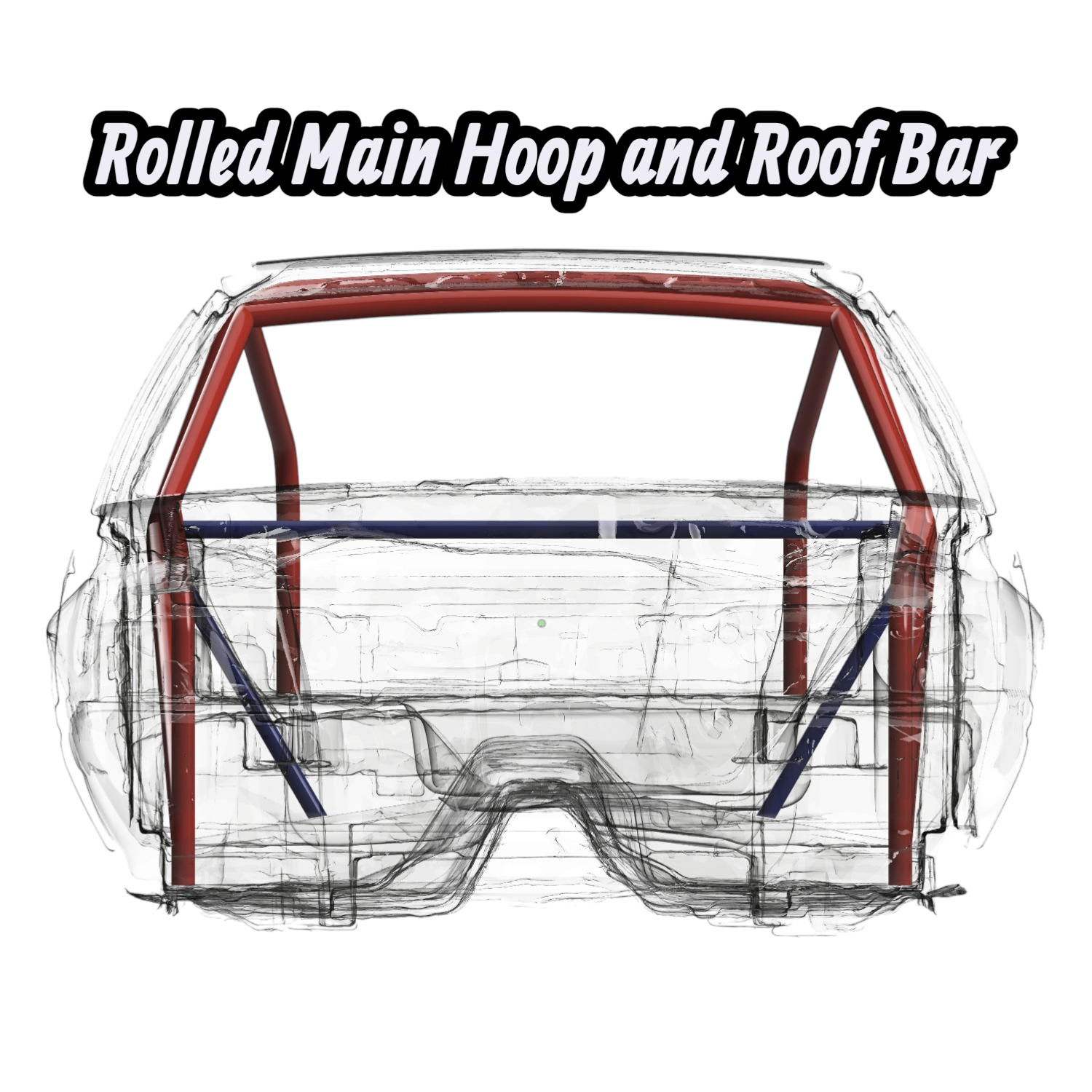

- Main hoop, roof bar and optional roof diagonal come “rolled” for a natural fit to the roof line.

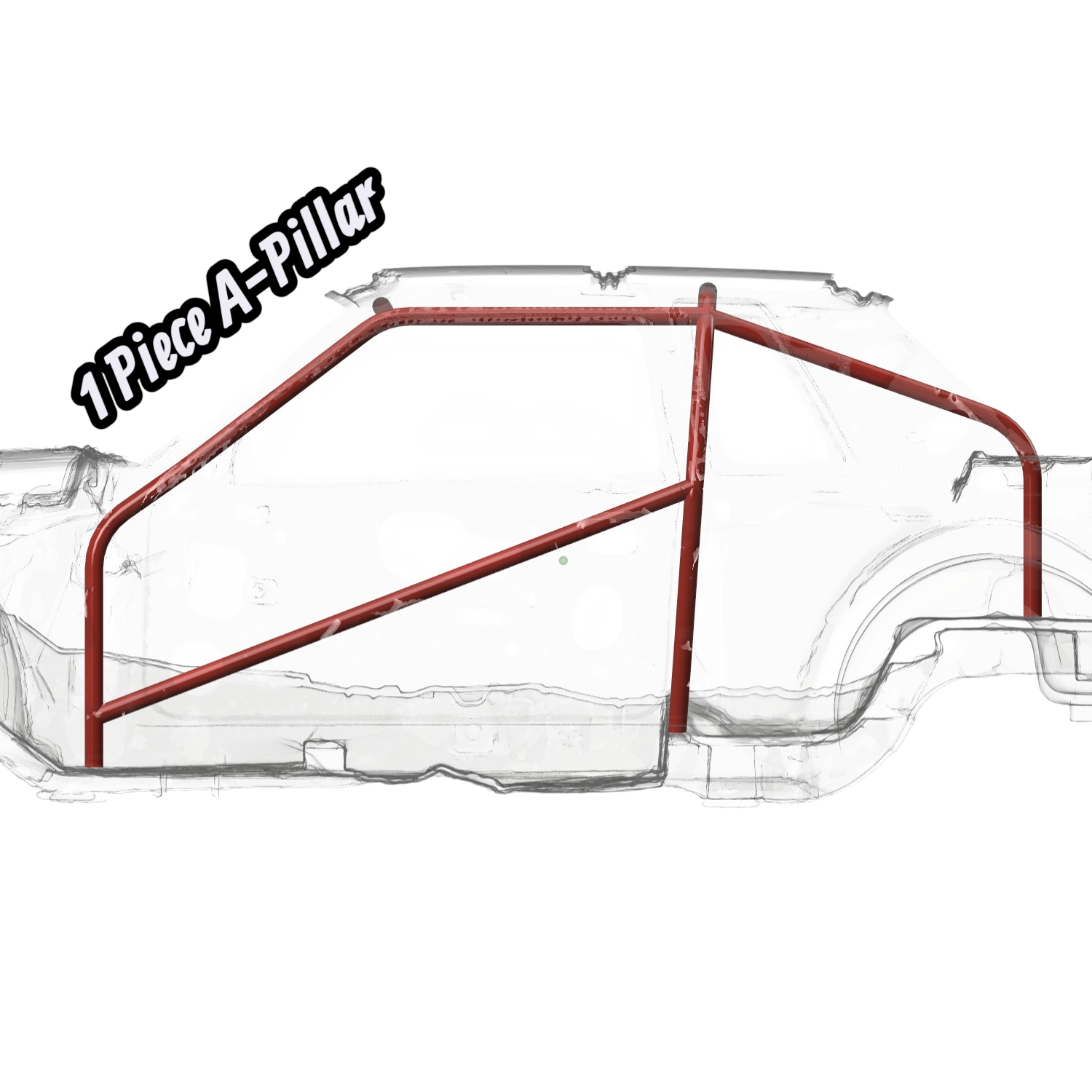

- 1-piece A-Pillar bars make is easier to assemble and saves on welding.
Additional Options
- Get your kit “Fully Prepped”
- Tubes are fully polished are ready to weld. This also makes them ready for paint.
- Saddles are hand barrel sanded.
- Inside of tube is sanded near the weld zone.
- Outside of tube is deburred.
- Custom floor plates available to make installation easy.
- Cages can be customized to fit your specific needs, check the drop downs or contact us.
Click the links below for popular items you may want with your cage!
HRS Seat Mounts and Accessories
Shipping
- We use oversized pallets made to ship your cage.
- Tubes are banded and screwed to pallet
- Entire pallet is protected with shrink wrap
- A packing list is included for tubes ordered
- We ship flat rate LTL in the US 48 contiguous states,
- You will need a commercial location with unloading capability
- Additional charge for residential
- Custom shipping quotes made for other destinations
- Select “Ground Shipping” at checkout or pickup if you’re local (Overnight not available)
- No returns on roll cage purchases
