!Description

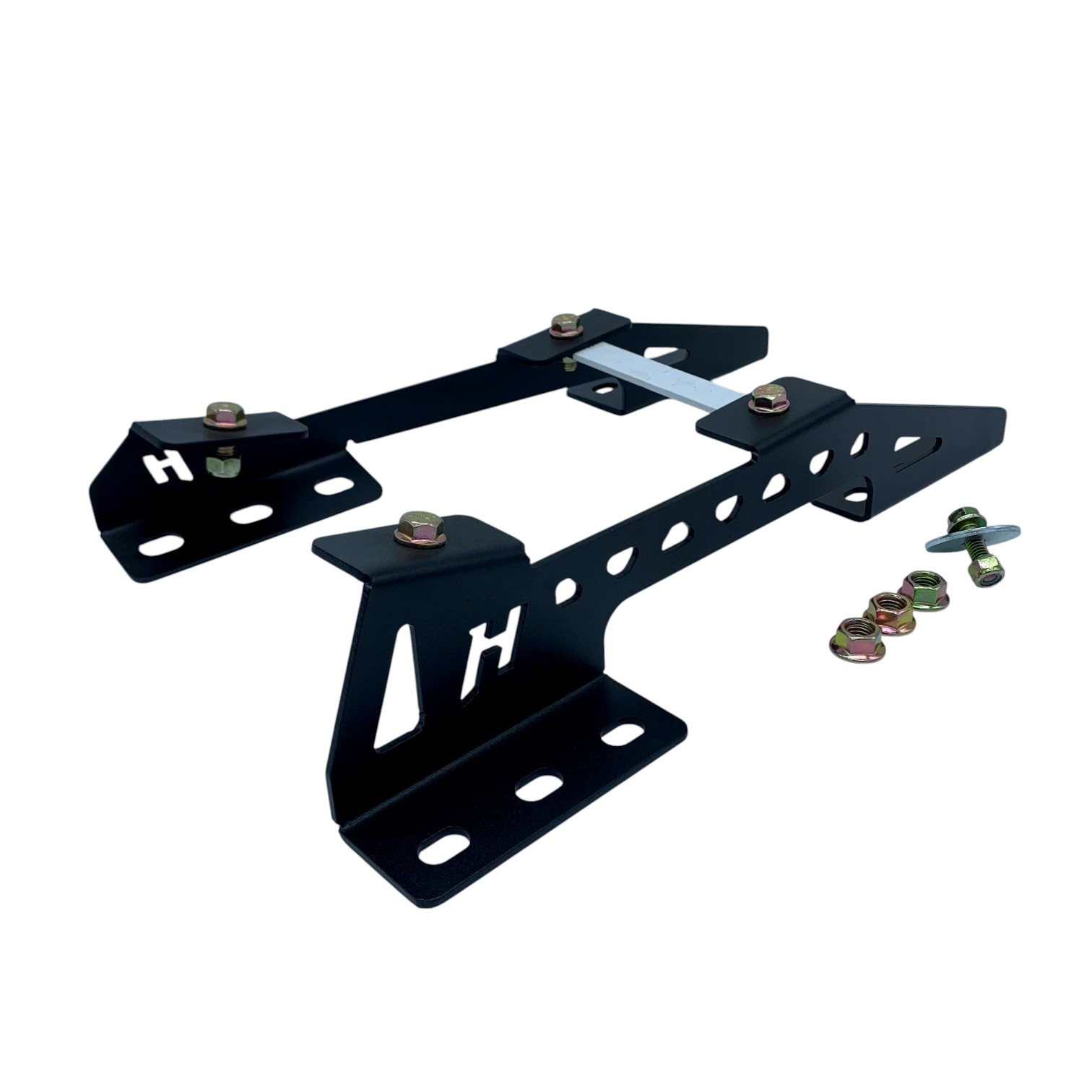

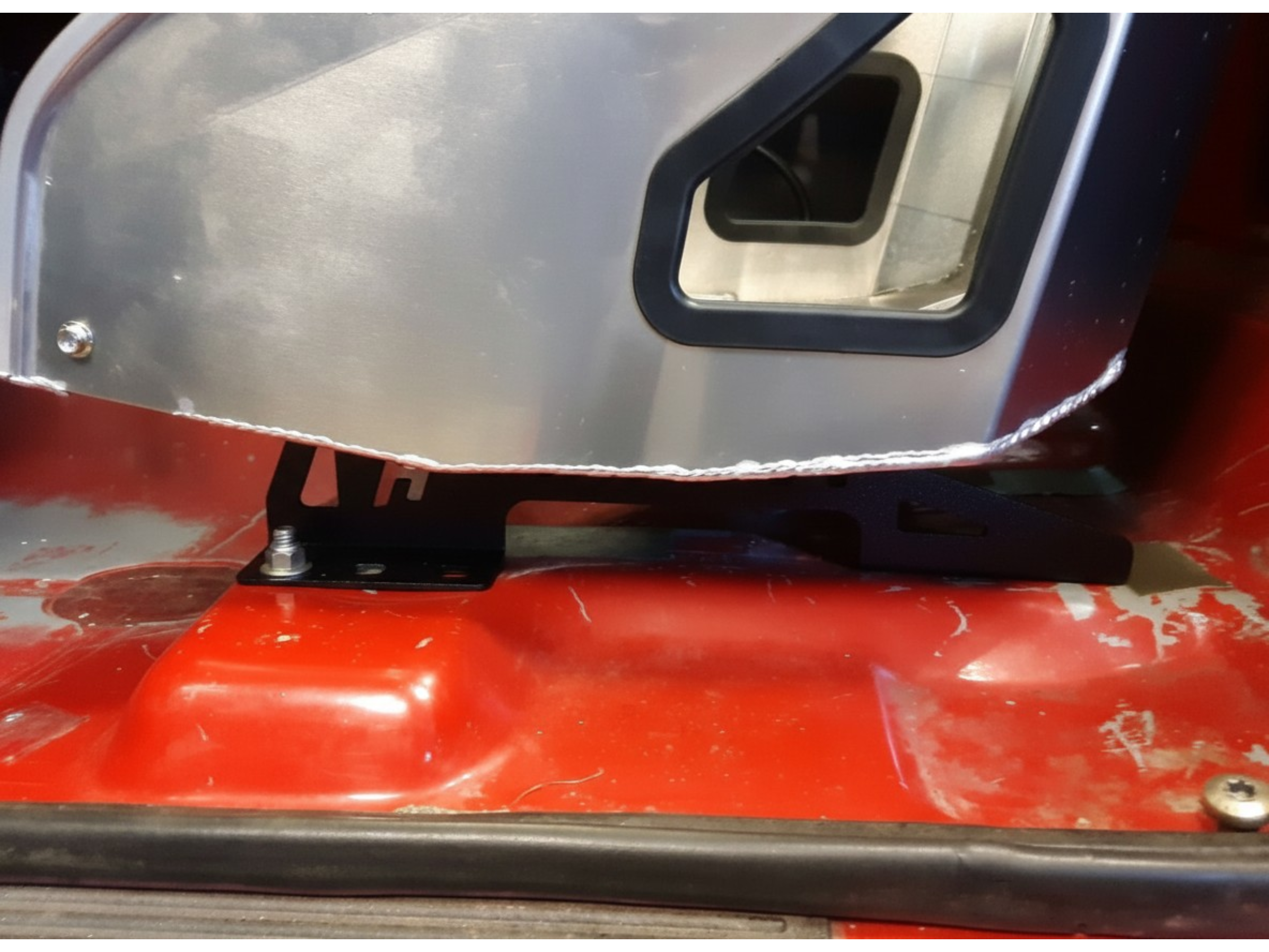

These will bolt Kirkey high-back style 55s into 1st gen S-series trucks and hide under the seat. Brackets are made of powder coated 11 Ga steel that is CNC Plasma cut and has multiple mounting holes at the floor for 3″ of travel. Upper holes can be enlarged to use Dzus fasteners for faster seat removal. Comes with Grade 8 hardware to mount the bracket to the seat and floor. Sold as a pair per seat. Weight is 3lbs w/o hardware. The back of the seat should be supported per NHRA if there is a roll bar.
** Driver and Passenger inside brackets must have the front location drilled through the floor and supported with a heavy fender washer that is supplied. The passenger inside bracket requires slight massaging of the floor depending on the hole location.**
Click the links below for popular items you will want with you seat mounts!
Weld-in Floor Mount for 5 Point Harness Submarine Belt
Bolt-In 5 Point To Floor Adapter
