8.50 Roll Cage – 1979-1993 Fox Body Mustang Convertible

This kit fits a 1979-1993 Fox body convertible. The A-Pillar bars are routed thru the dash and is designed to have a tight fit to the roof, A-pillars and doors.

Trying to decide what level of cage you need for your hot rod?

Selecting A Roll Cage

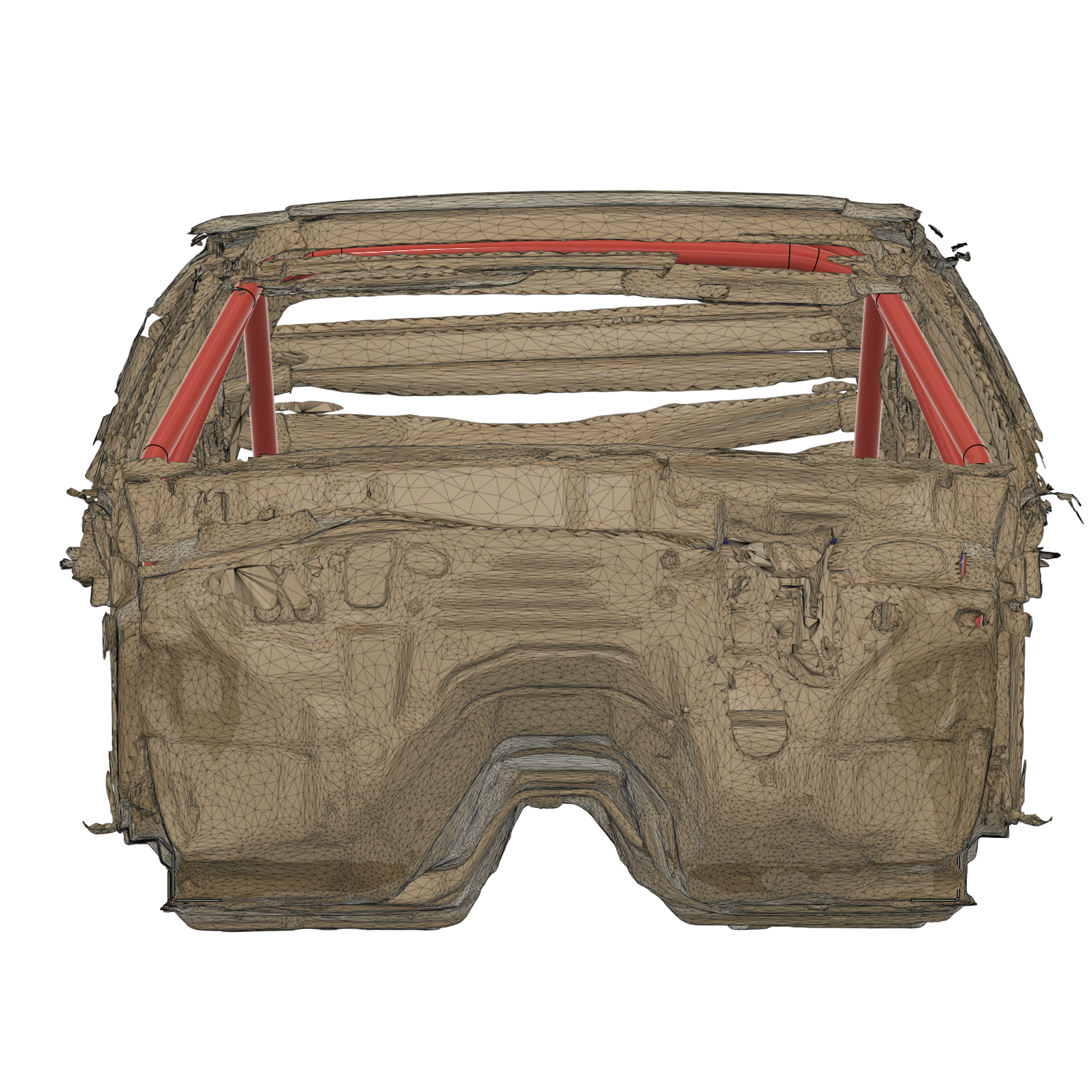

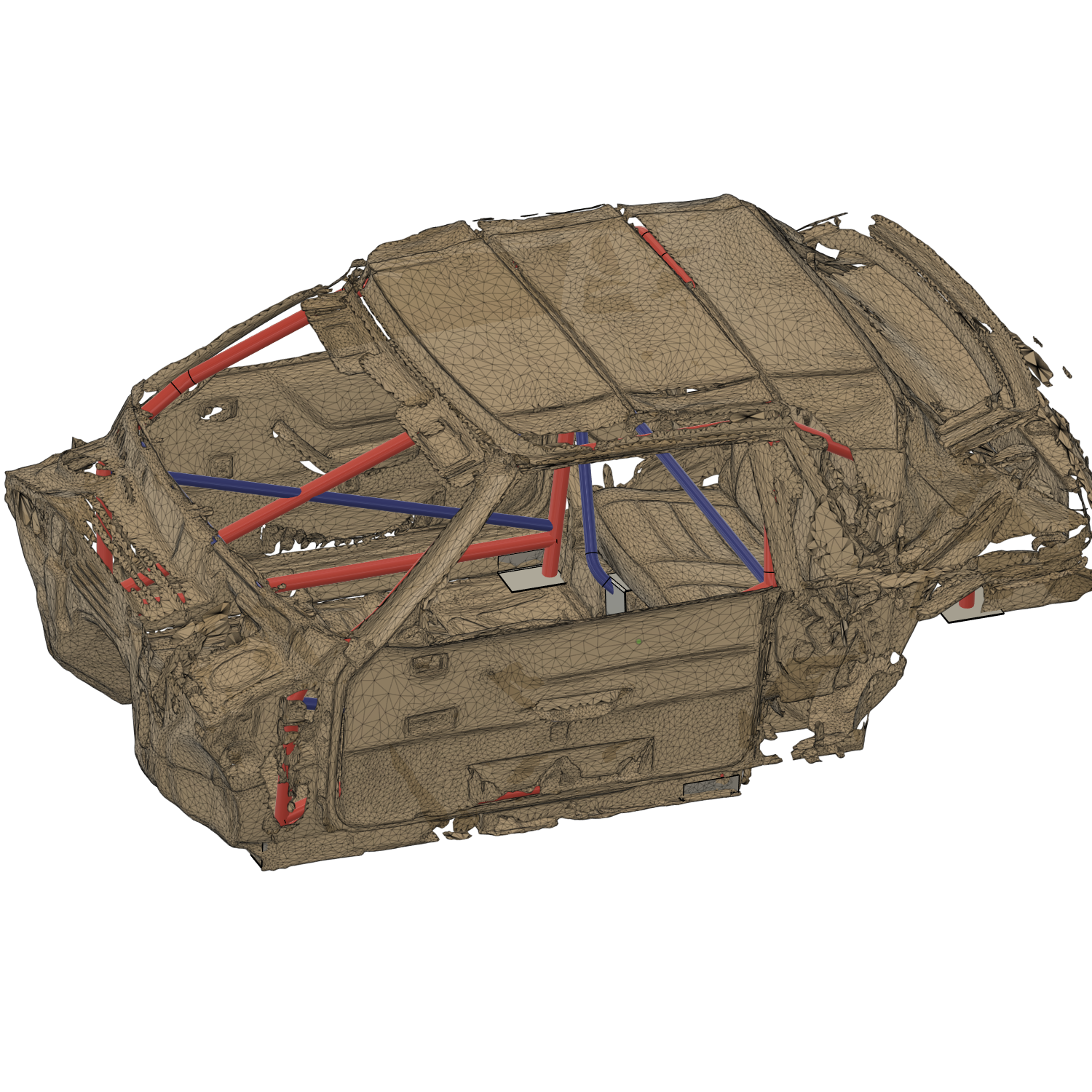

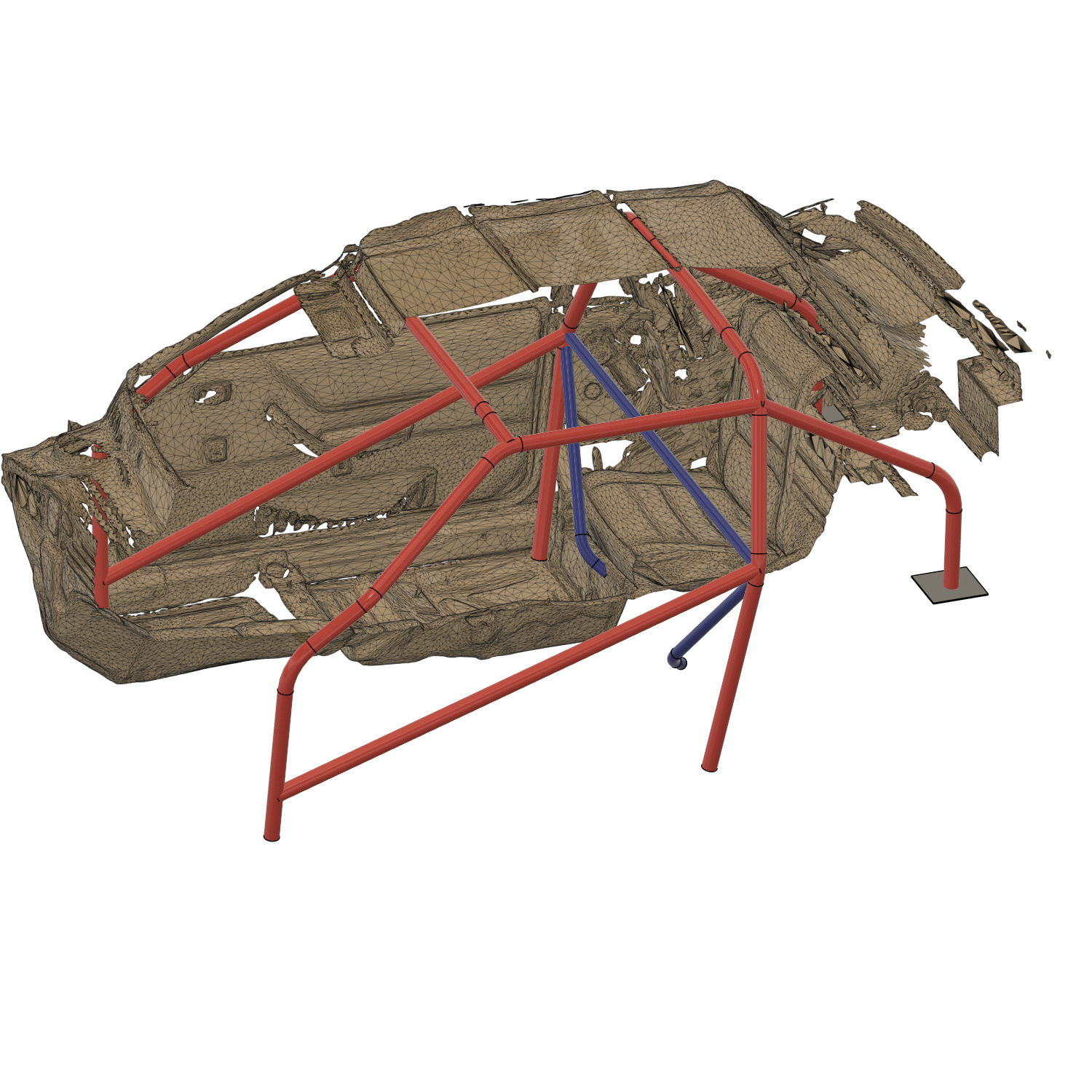

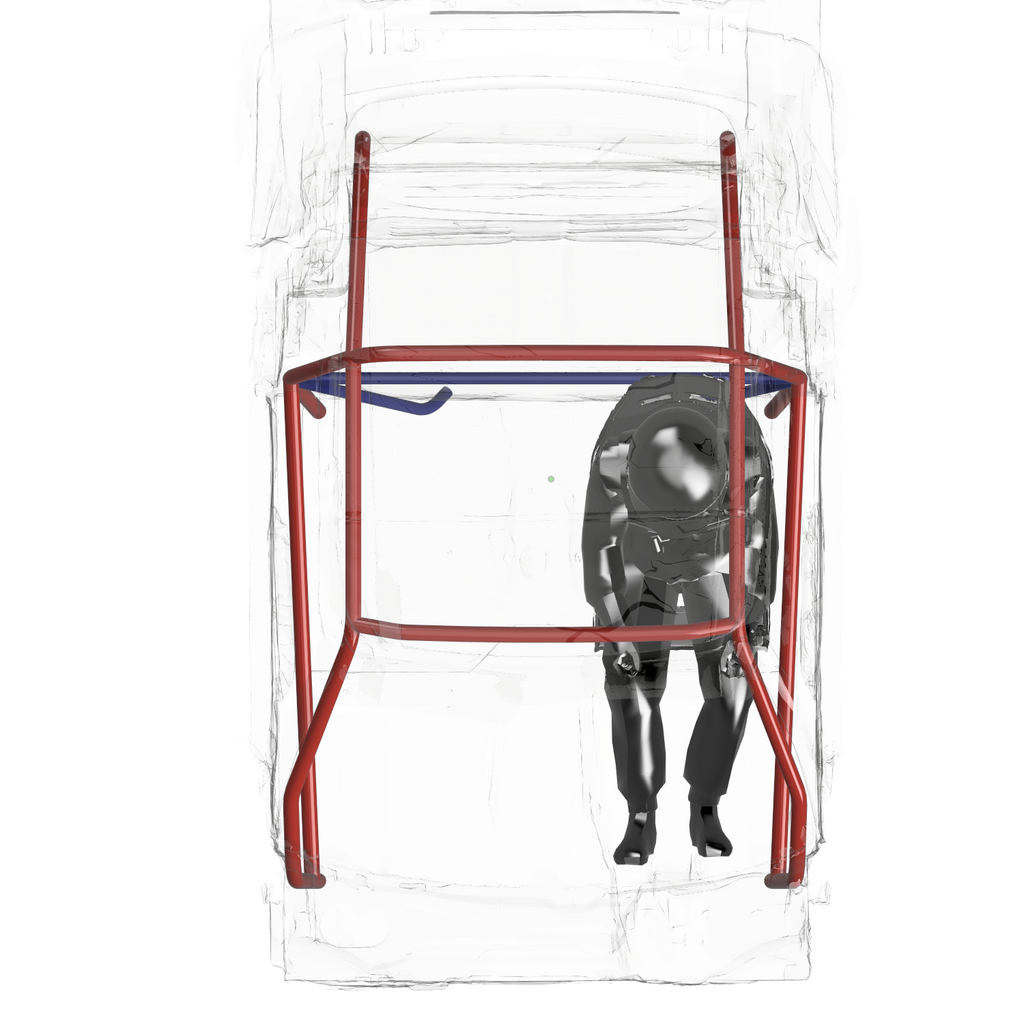

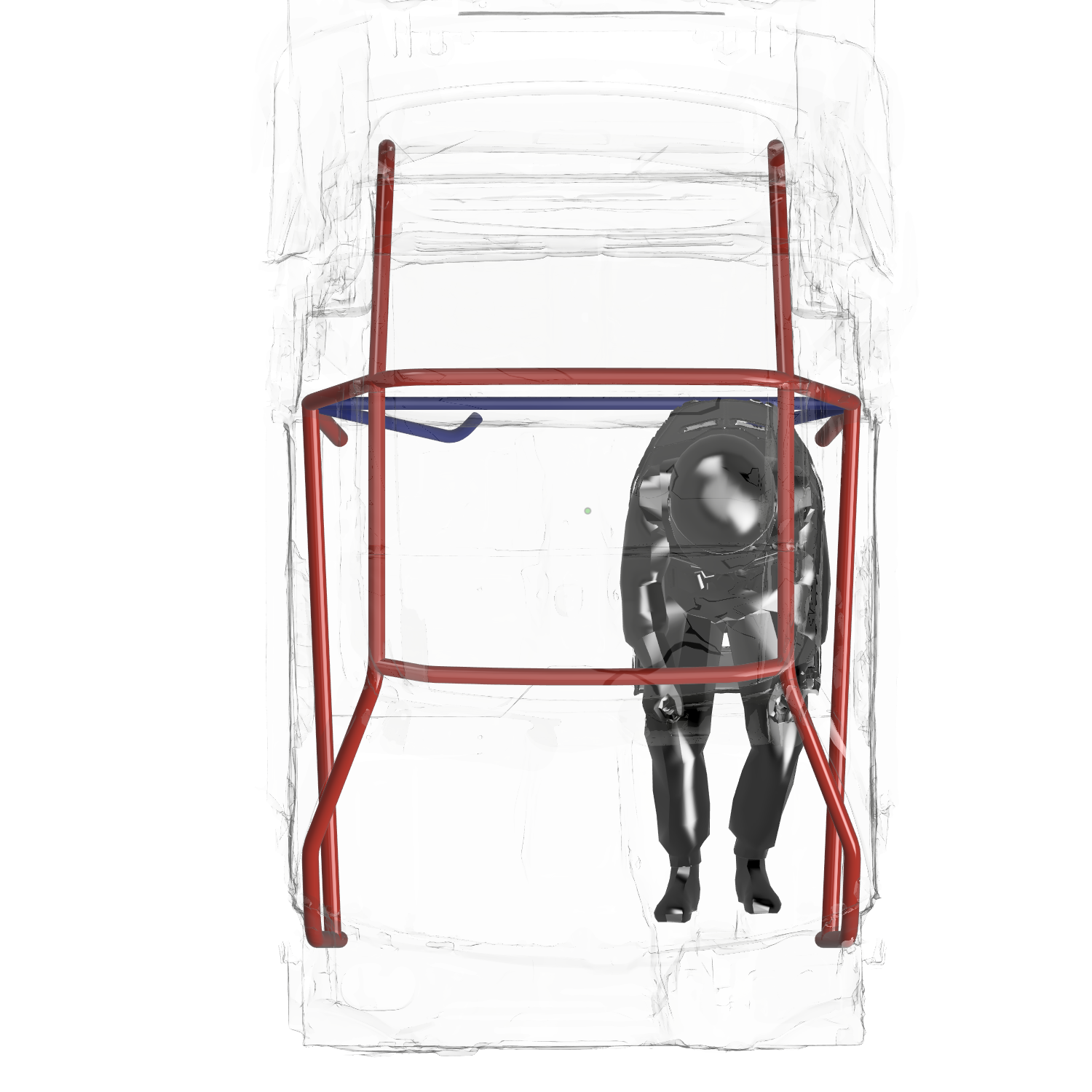

Our Cages are CAD designed from cars we 3D scan to give you a great fit! Available in 4130 chromoly and DOM. Comes with straight door bars only as the cage is narrower to clear the convertible floor structure so the door bars naturally clear the armrests.  Only one rear bar arrangement available to work with the convertible top.

If you see this symbol over a photo, it's actually a 3D viewable file. Click on it and rotate it around to get a 360 degree look!

Standard Options

• Tubes are cnc notched and bent!
• We etch the saddle marks into the tubes to show where they land, no measuring! This saves you valuable time fitting the assembly together.
• We also etch a mark in the middle of the main hoop to quickly center it to your chassis.
• Each tube has a specific part number etched in it so you can quickly locate it in you instructions.

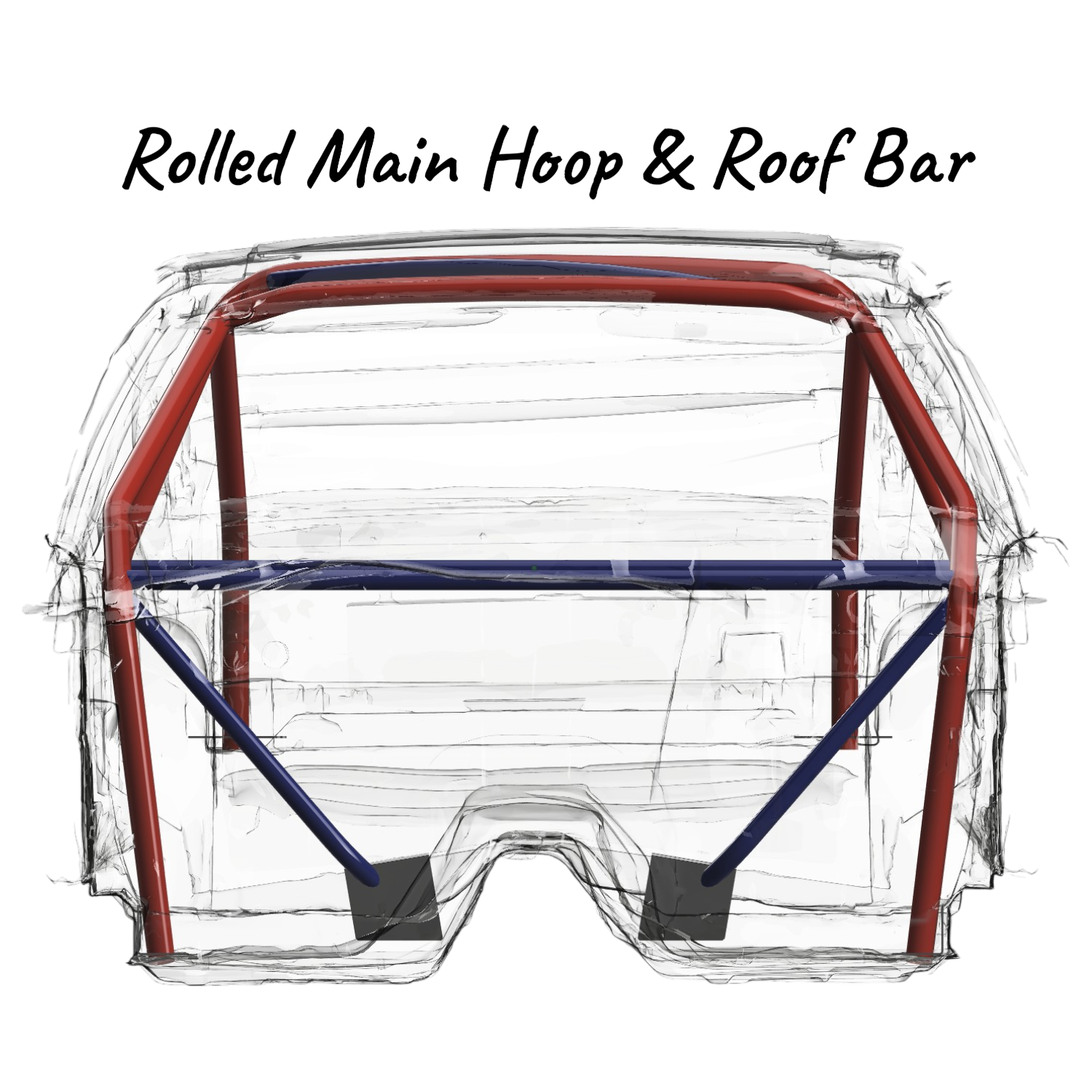

• Main hoop, roof bar and optional roof diagonal come “rolled” for a natural fit to the roof line.

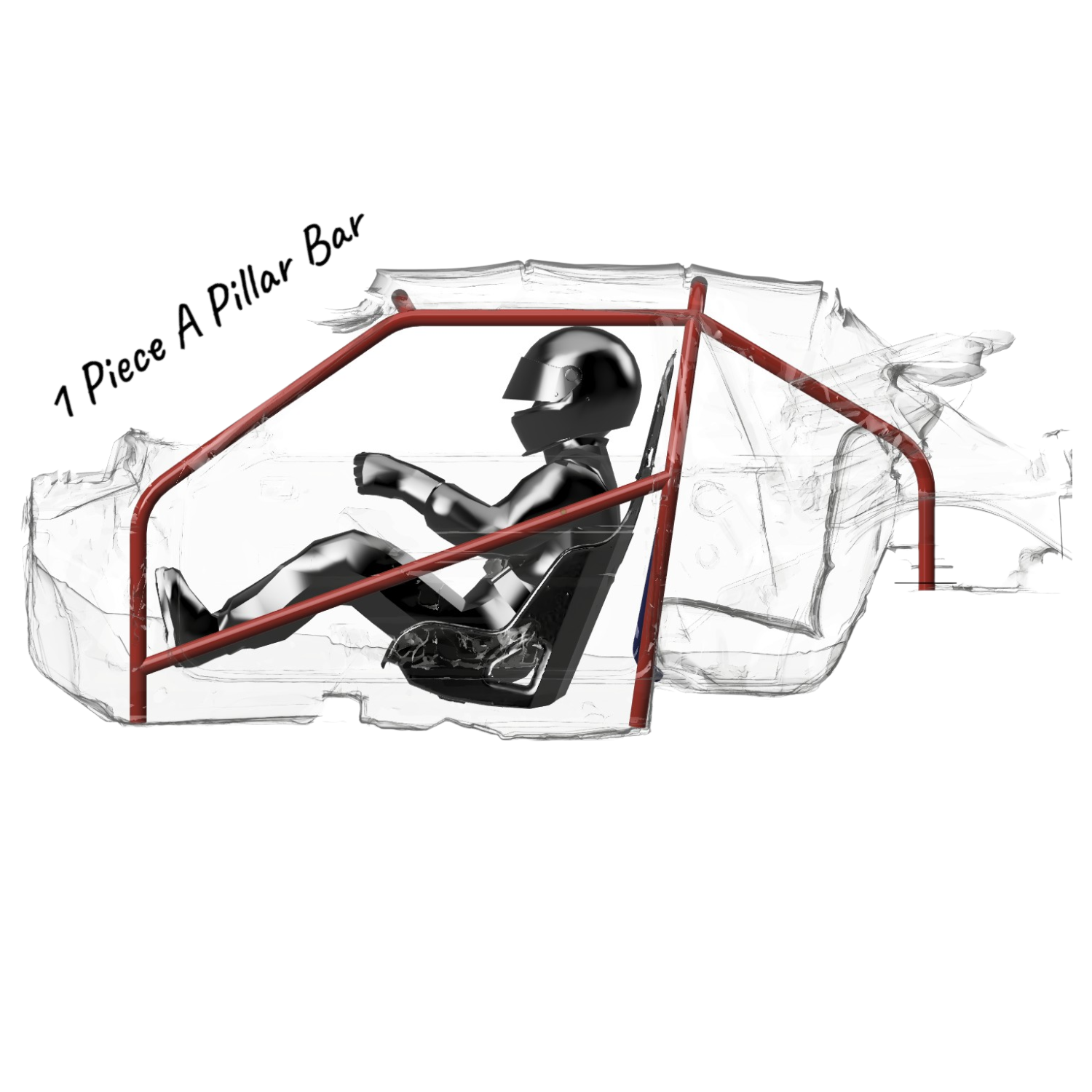

• 1-piece A-Pillar bars make is easier to assemble and saves on welding.

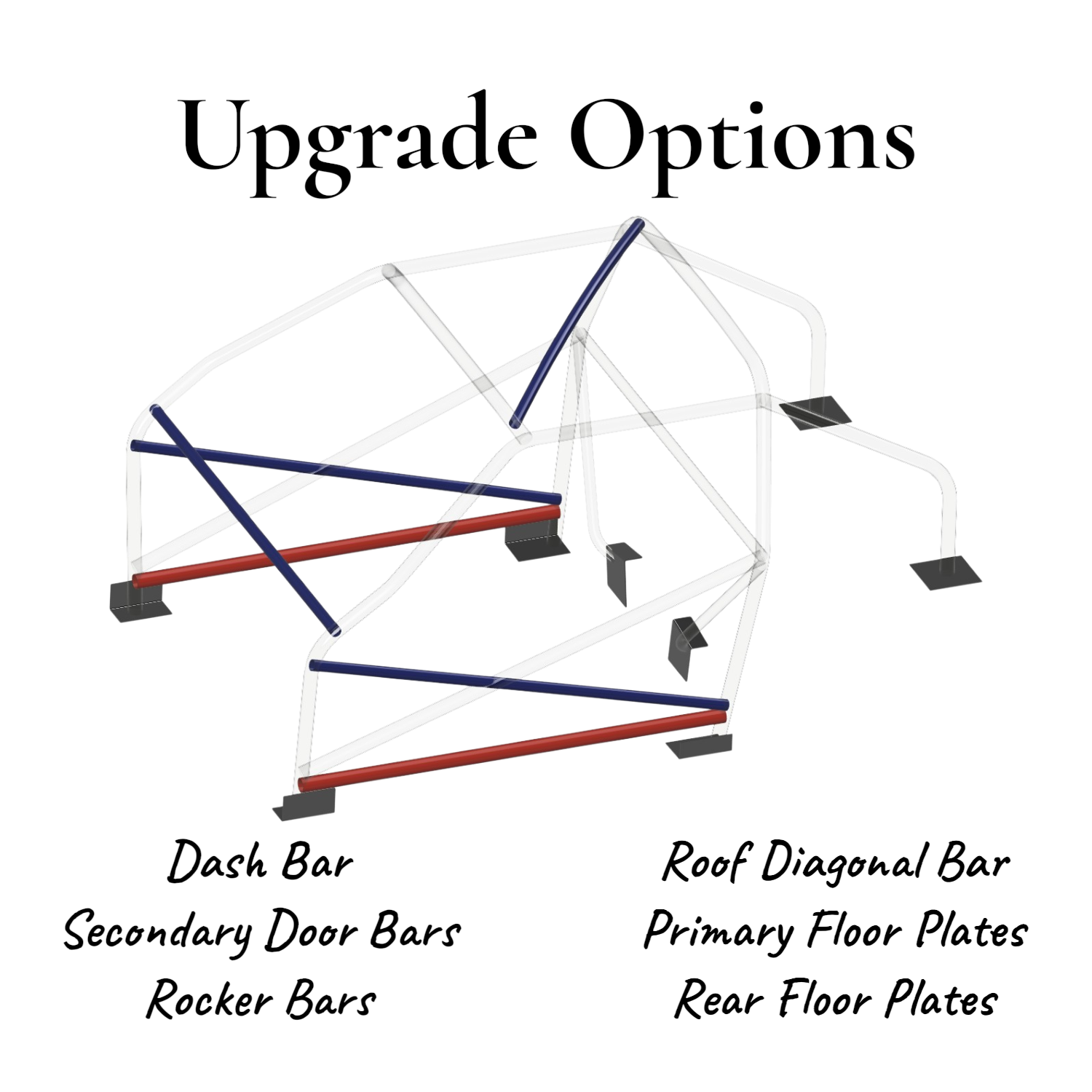

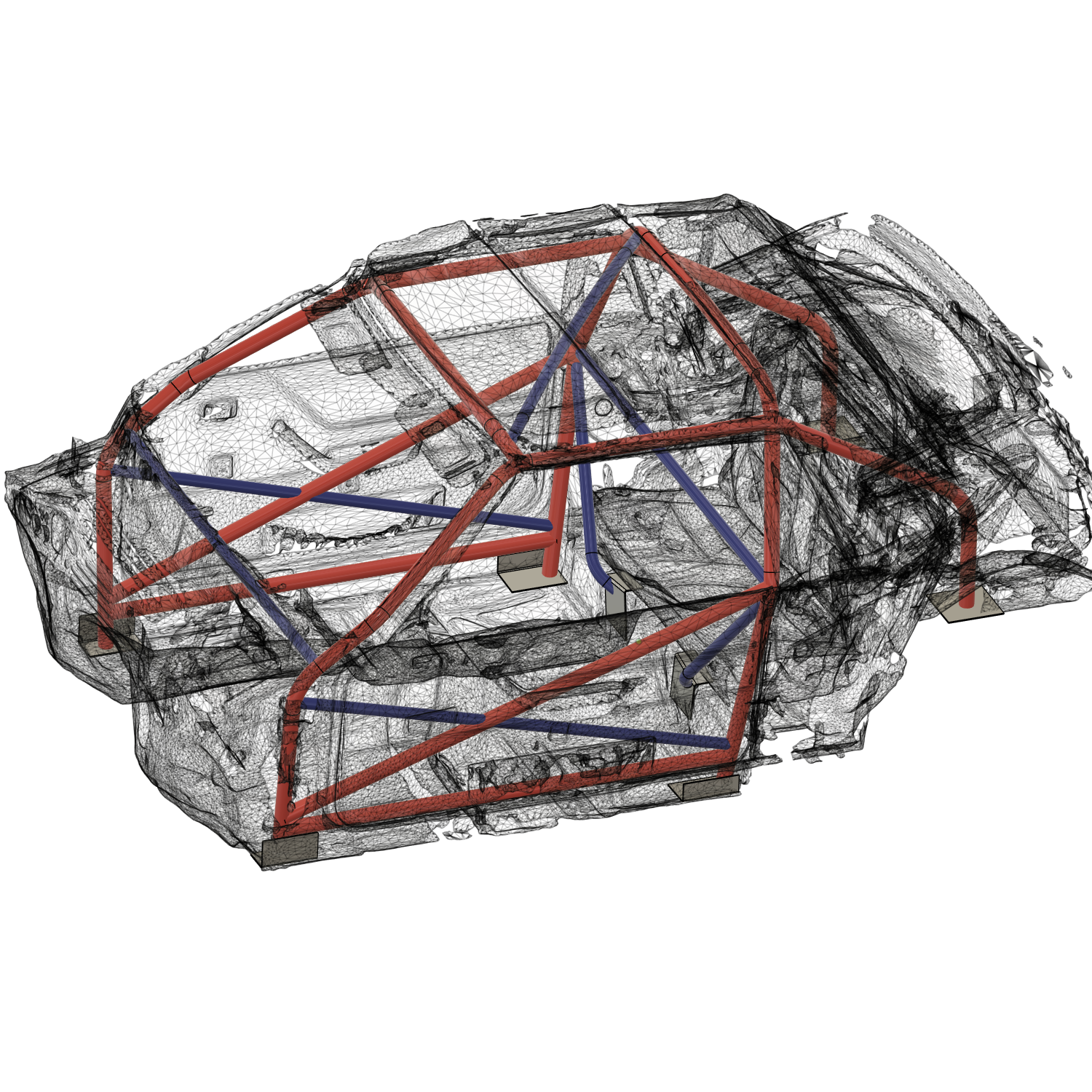

Upgrade Options

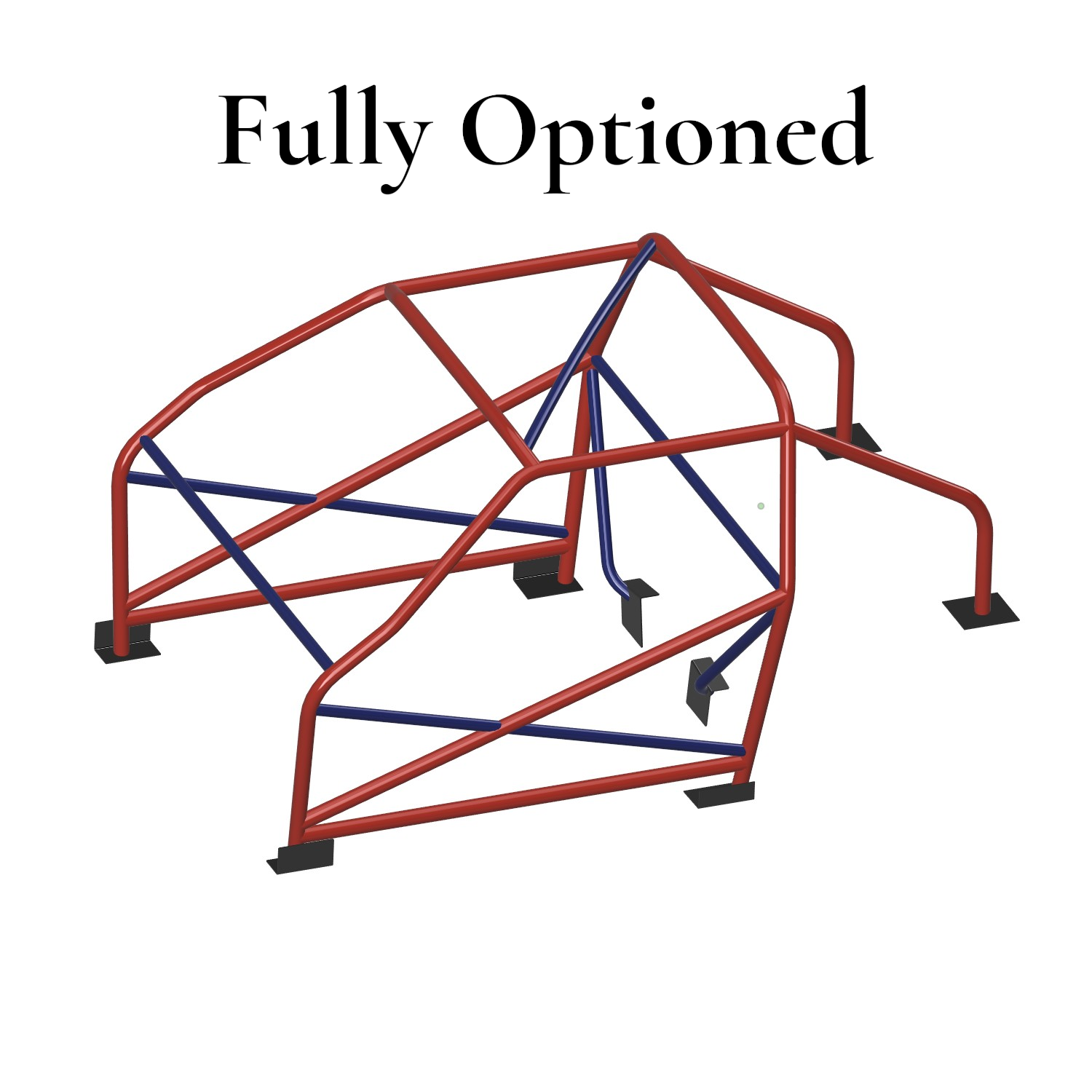

• Add these popular tubes for a premium 8.50!
  • Dash Bar (Required with modified firewall).
  • Secondary Door Bars
  • Rocker Bars
  • Roof Bar

  • Fitted Floor Plates

Additional Options

• Get your kit “Fully Prepped”
  • Tubes are fully polished are ready to weld. This also makes them ready for paint.
  • Saddles are hand barrel sanded.
  • Inside of tube is sanded near the weld zone.
  • Outside of tube is deburred.
• Custom floor plates available to make installation easy.
• HRS Billet Swing Outs for your door bars. Tight clearance with integrated stops.
• Cages can be customized to fit your specific needs, check the drop downs or contact us.

Click the links below for popular items you may want with your cage!

Kirkey and Racetech Seats

HRS Seat Mounts and Accessories

Shipping

• We use oversized pallets made to ship your cage.
  • Tubes are banded and screwed to pallet
  • Entire pallet is protected with shrink wrap
  • A packing list is included for tubes ordered
• We ship flat rate LTL in the US 48 contiguous states,
  • You will need a commercial location with unloading capability
  • Additional charge for residential
  • Custom shipping quotes made for other destinations


• No returns on roll cage purchases
