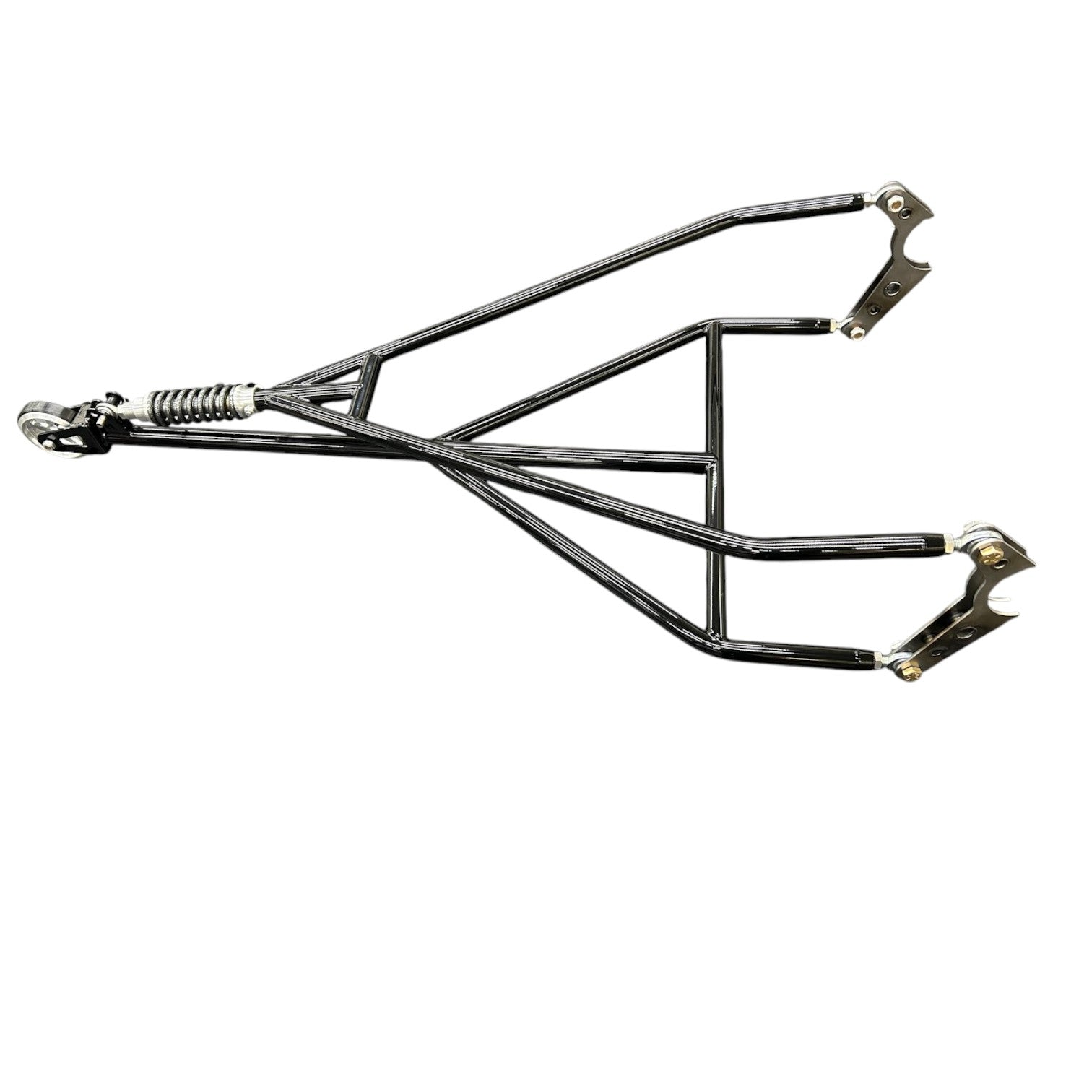

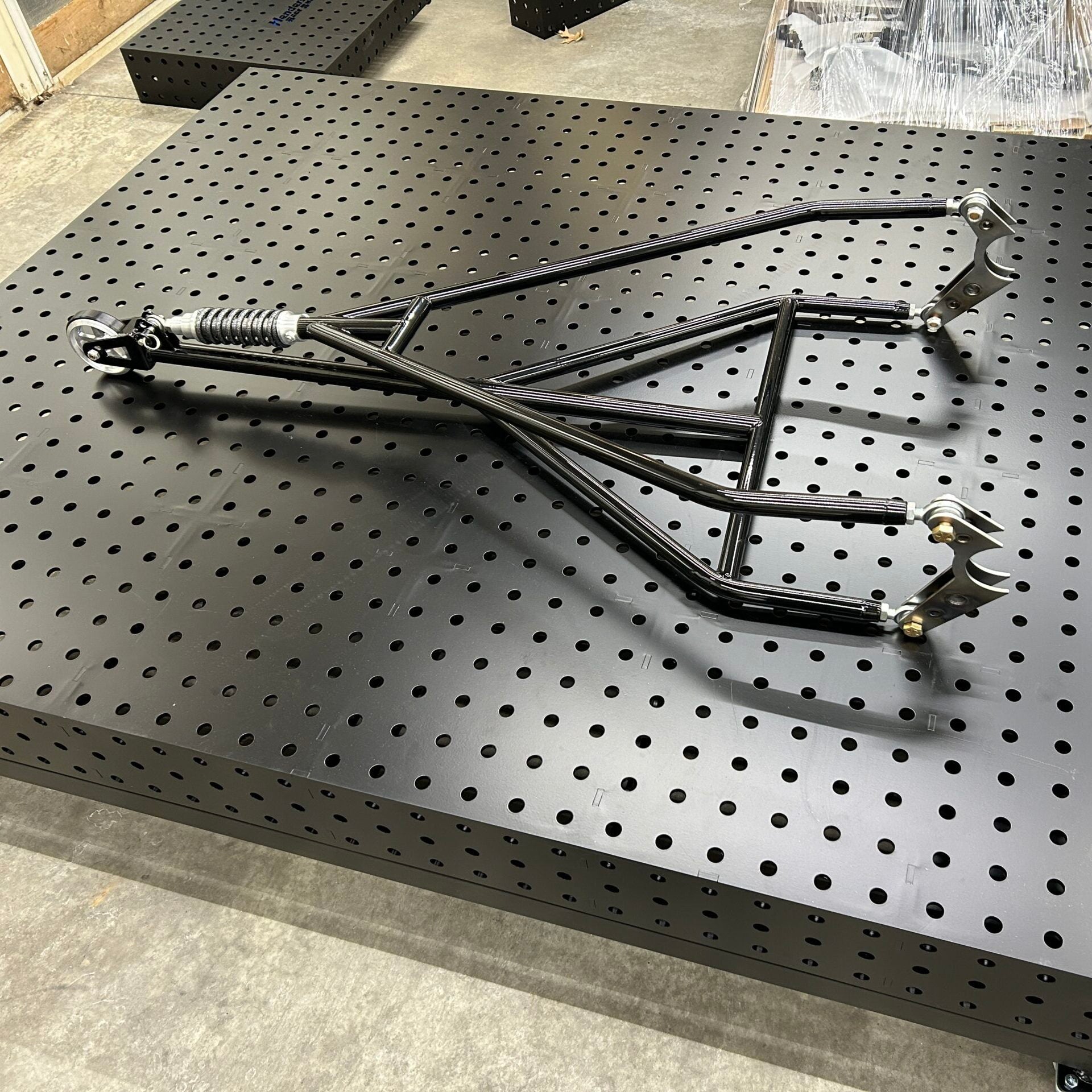

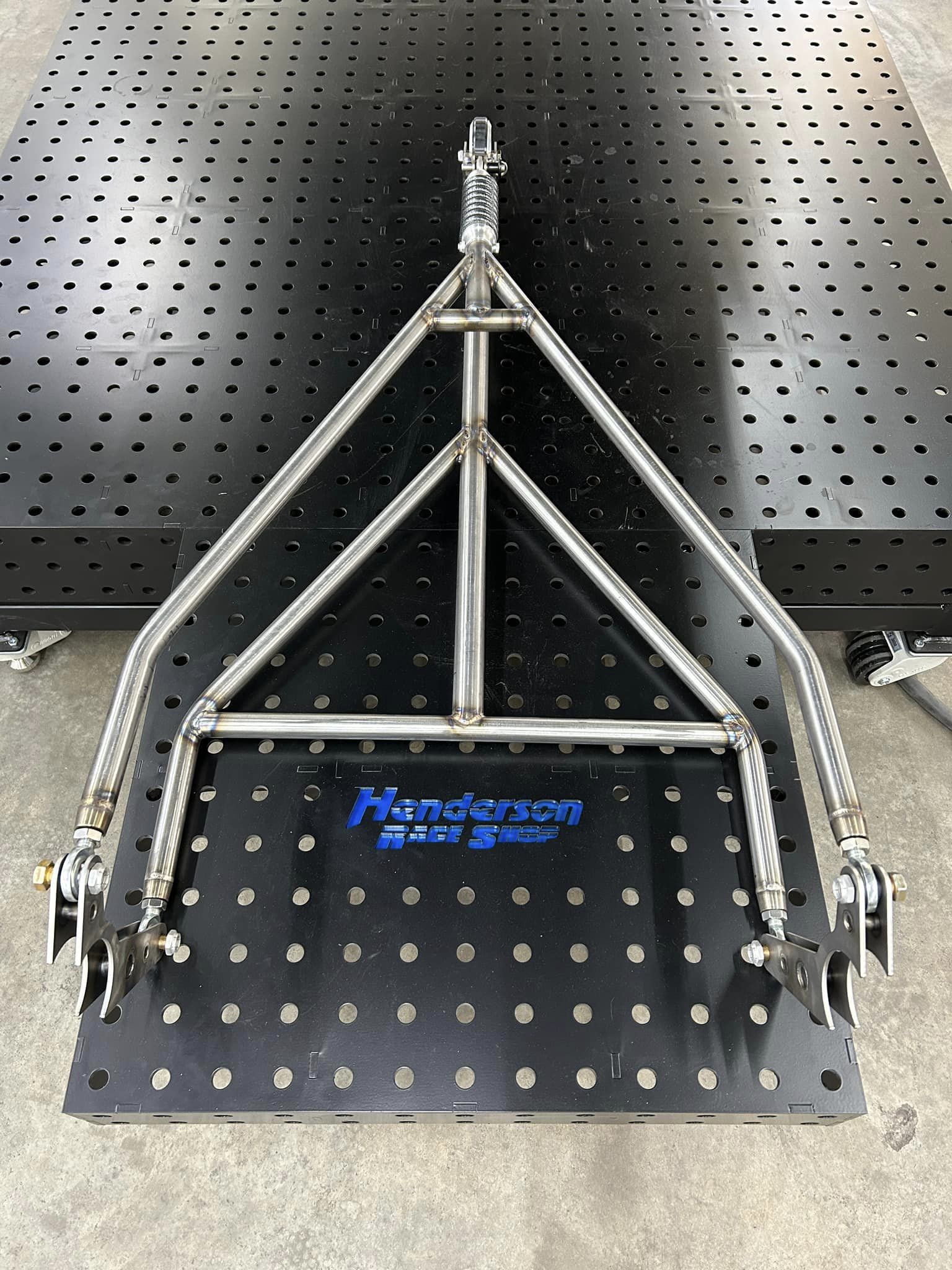

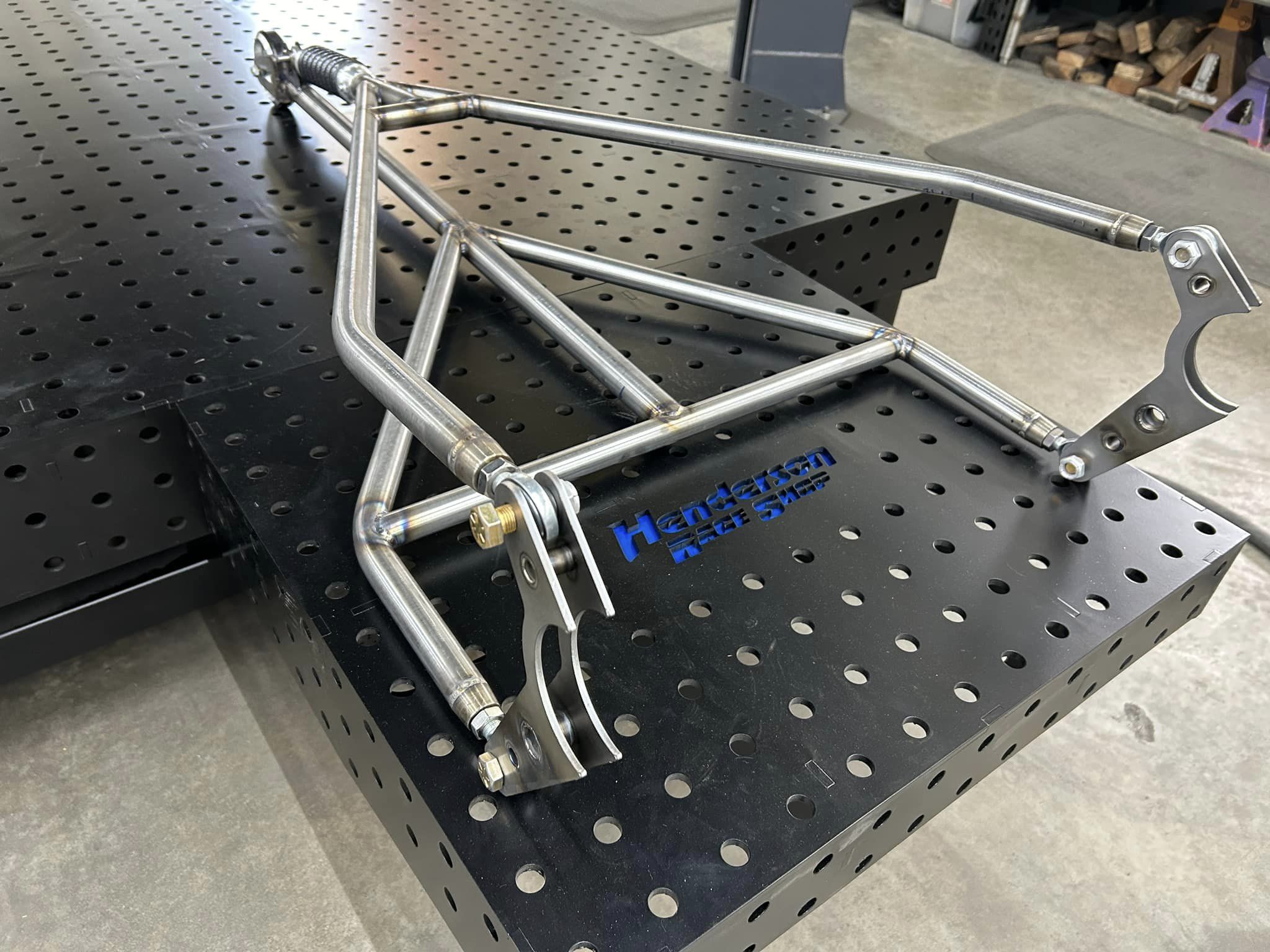

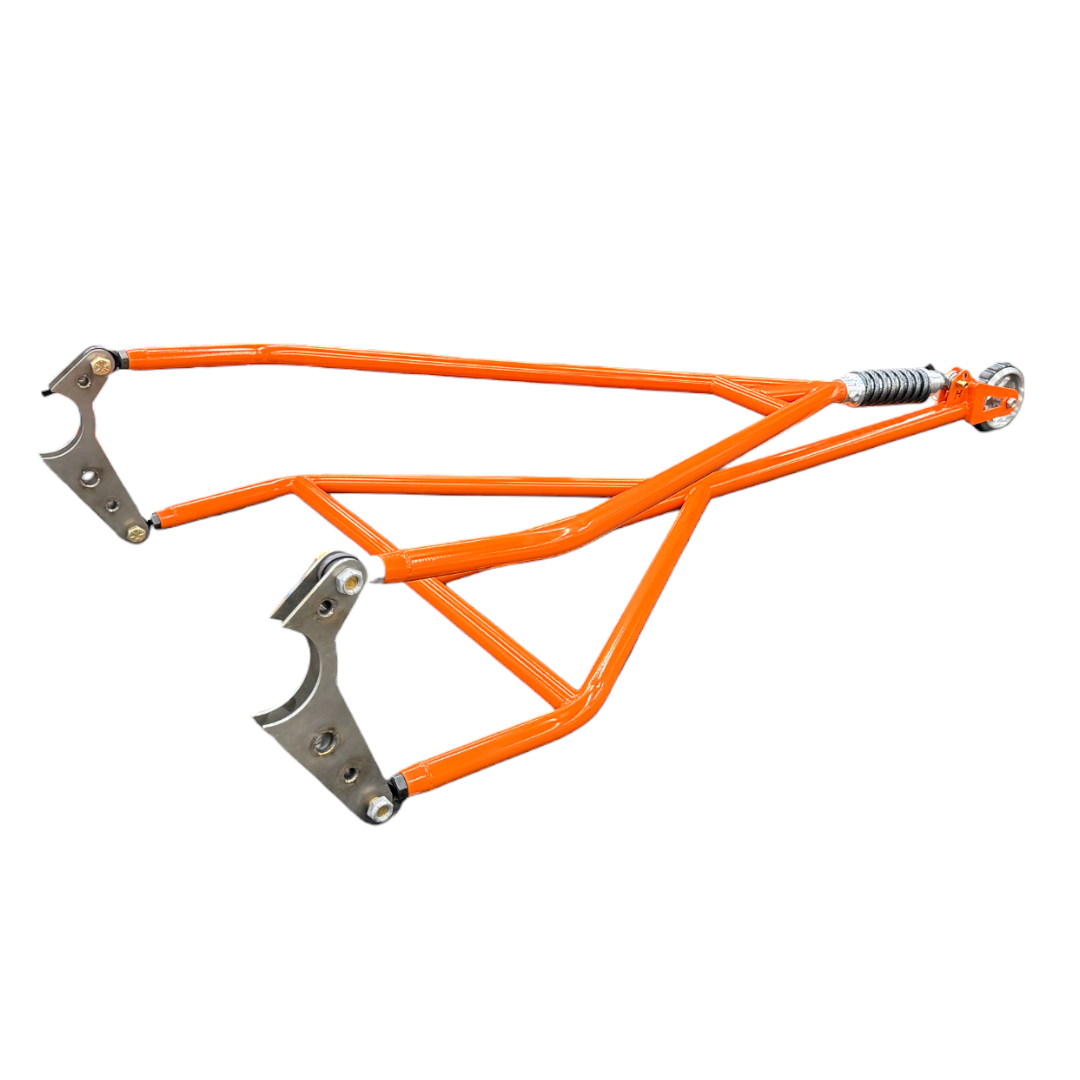

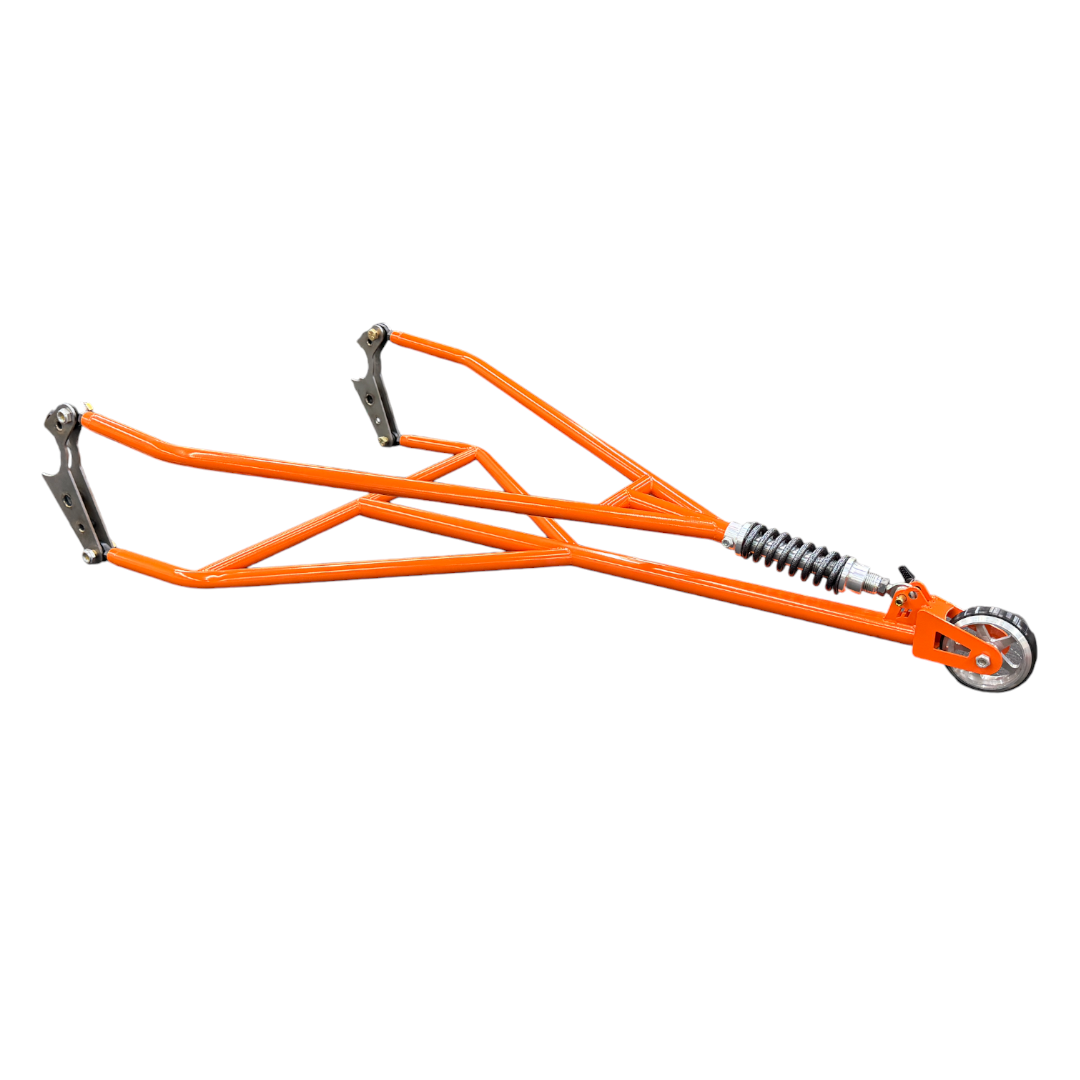

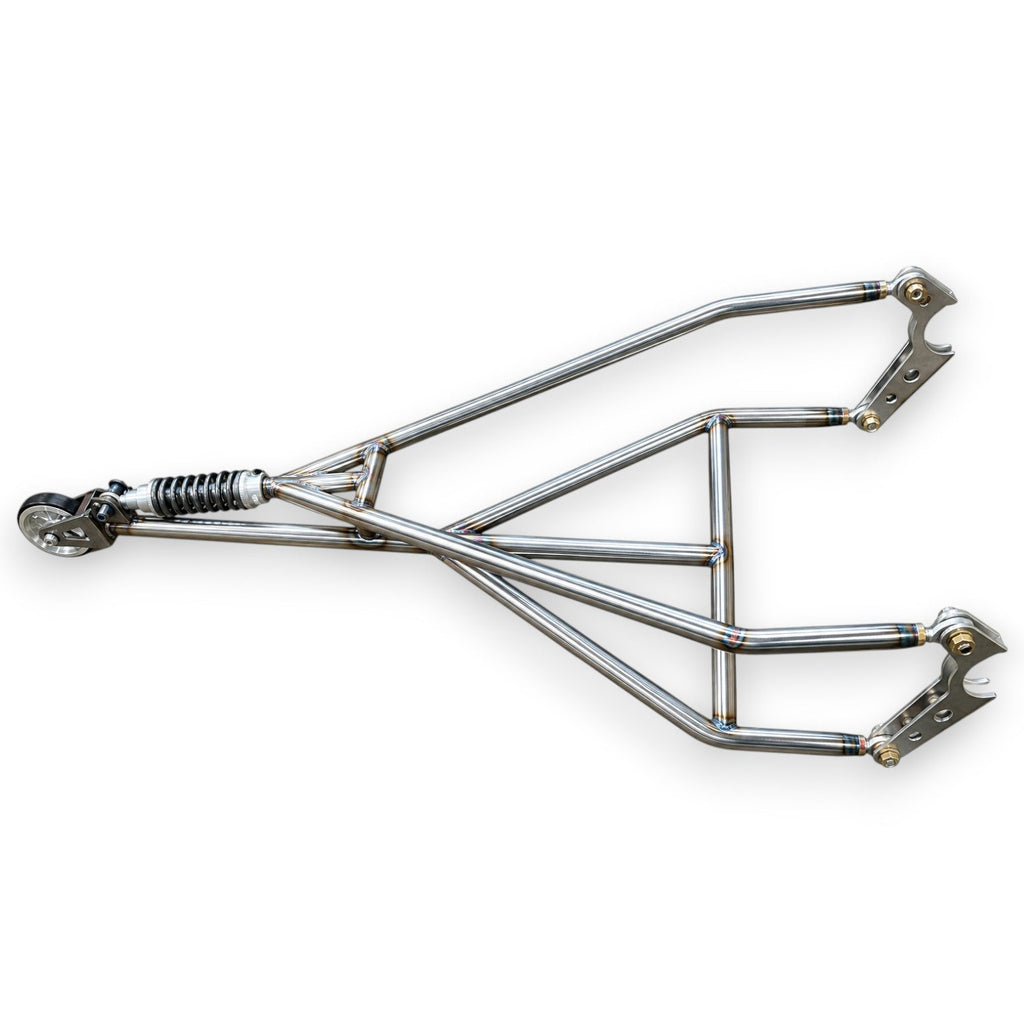

HRS Single Wheelie Bar and Spring Slider

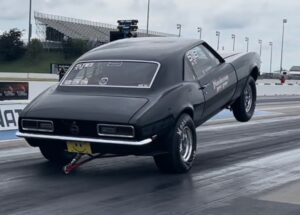

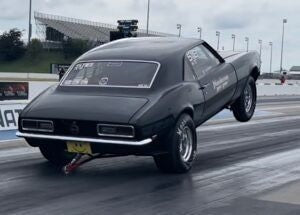

Developed from years of real-world use on our own race cars, the HRS Spring Slider Wheelie Bar is a high-quality solution designed to help control wheel stands and provide a smoother, more predictable launch.

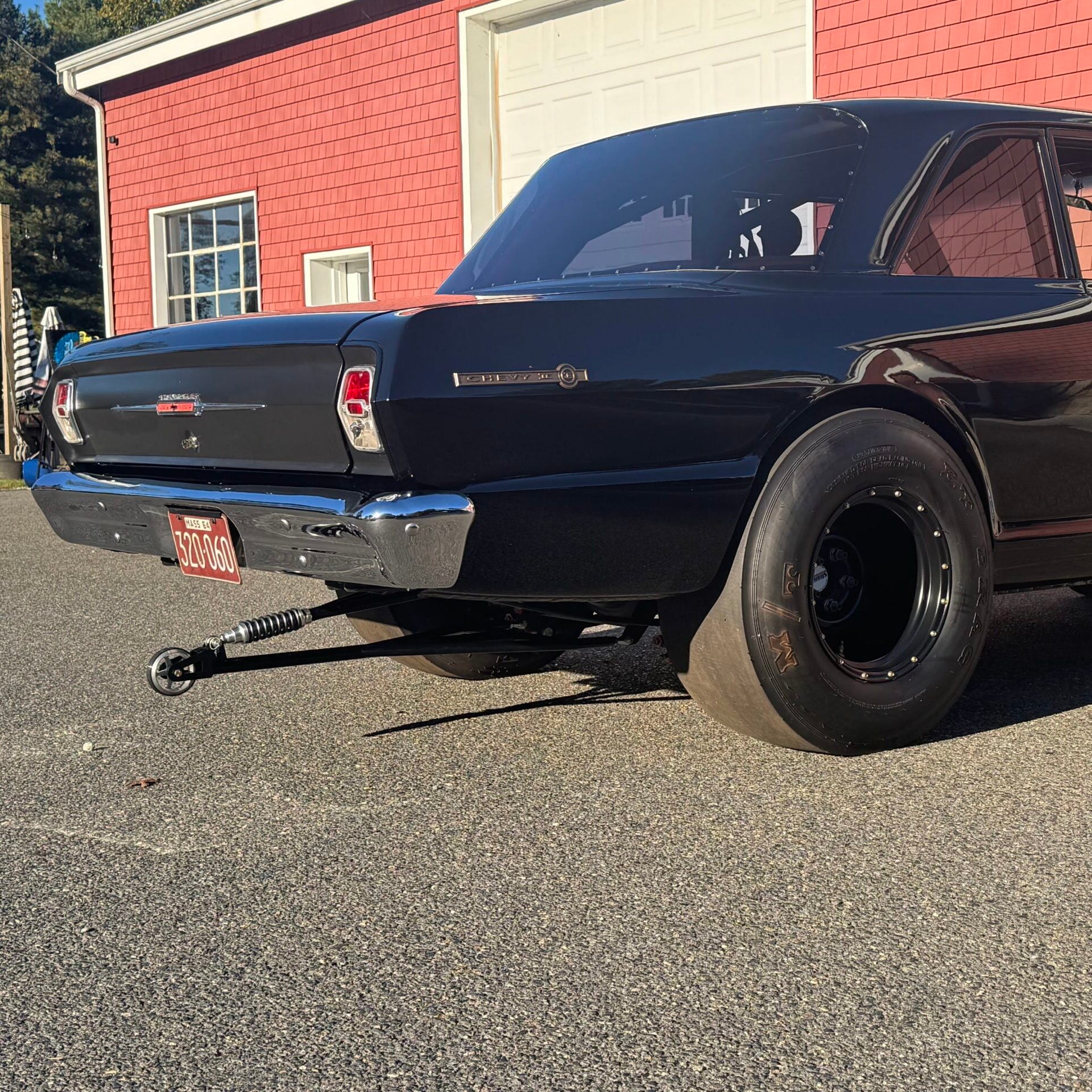

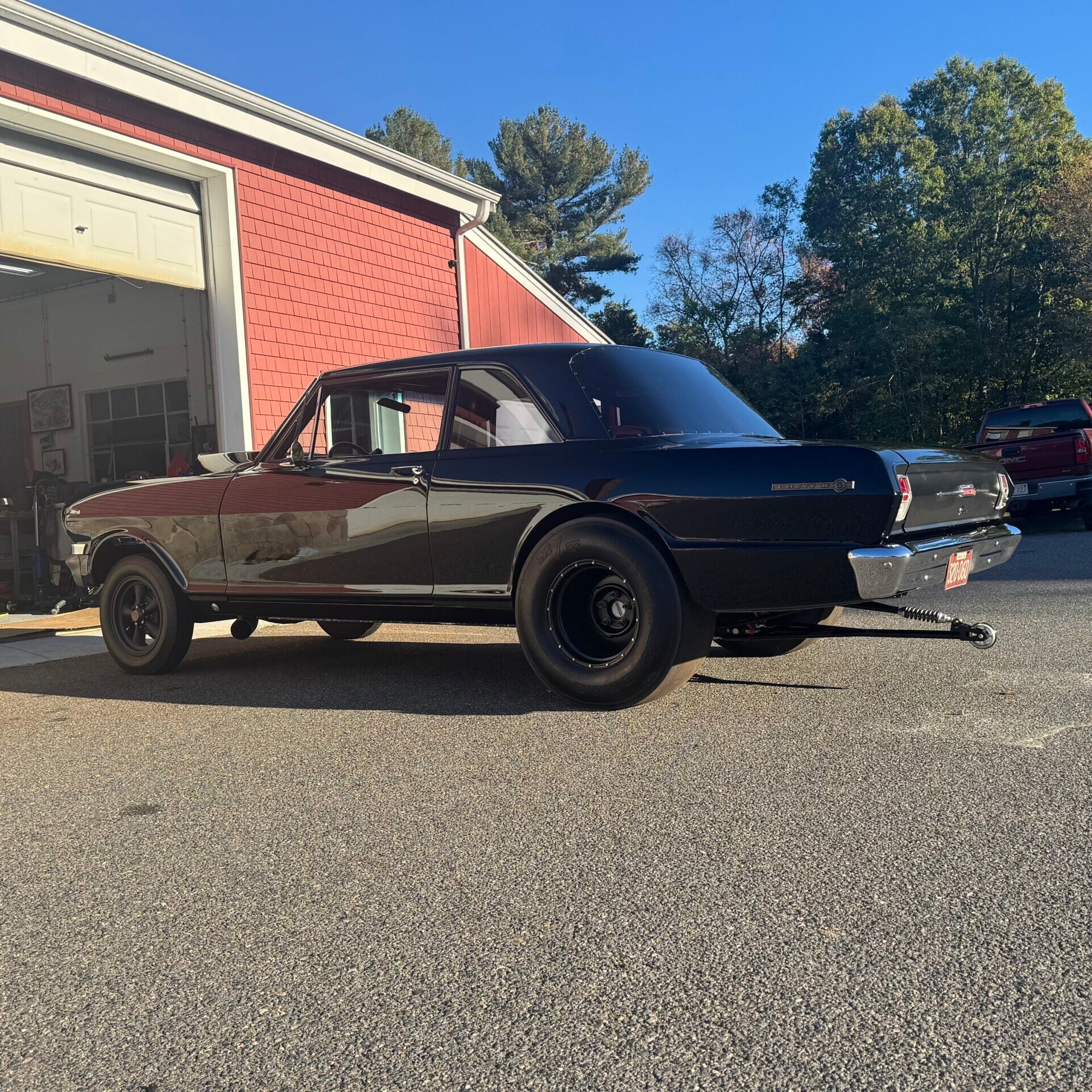

The standard wheelie bar is designed to mount to any 3" axle housing tubes at a 22" mounting width, with custom widths available.  Its targeted more towards a small tire car on stock style suspension and needs the wheelie bar on the rear end tubes.

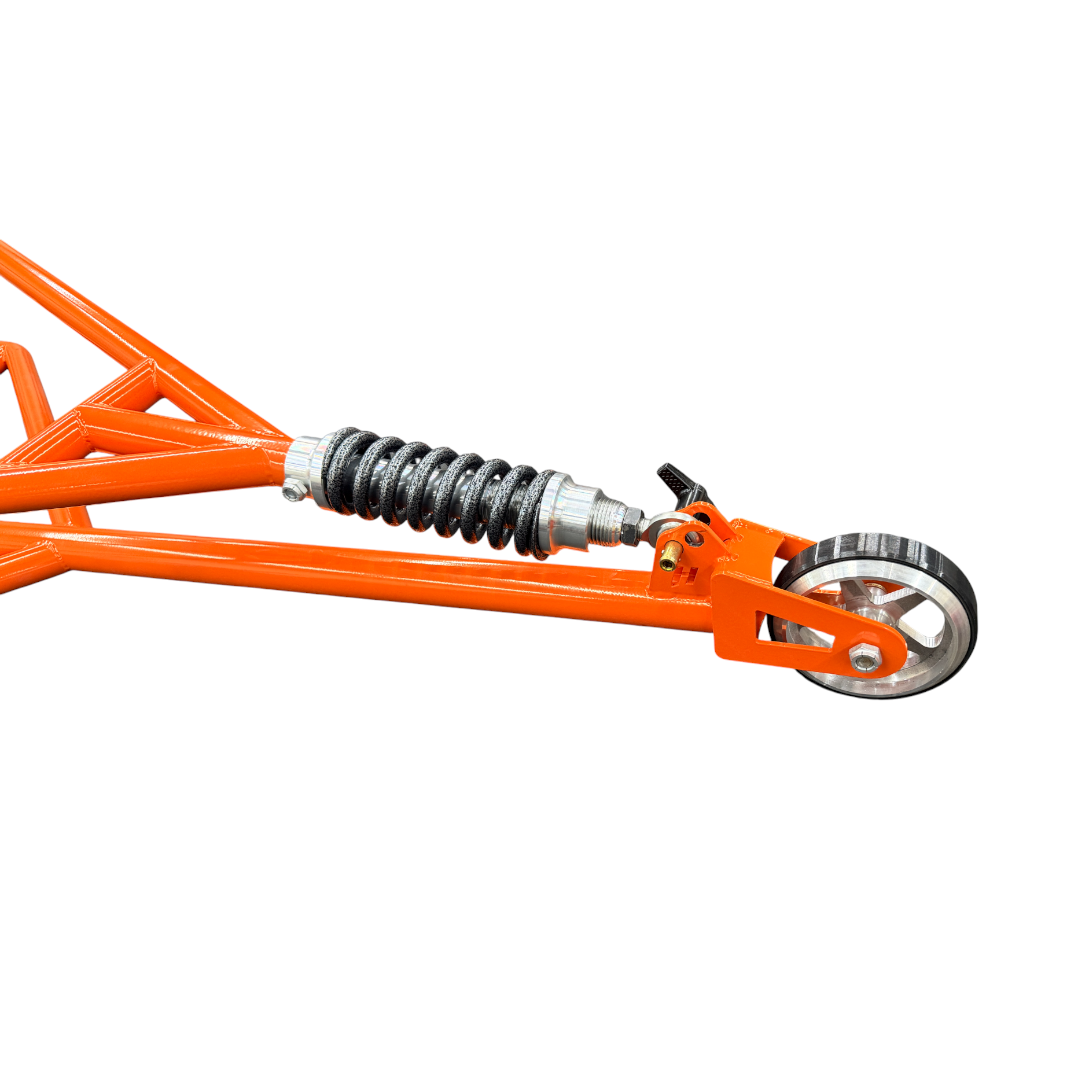

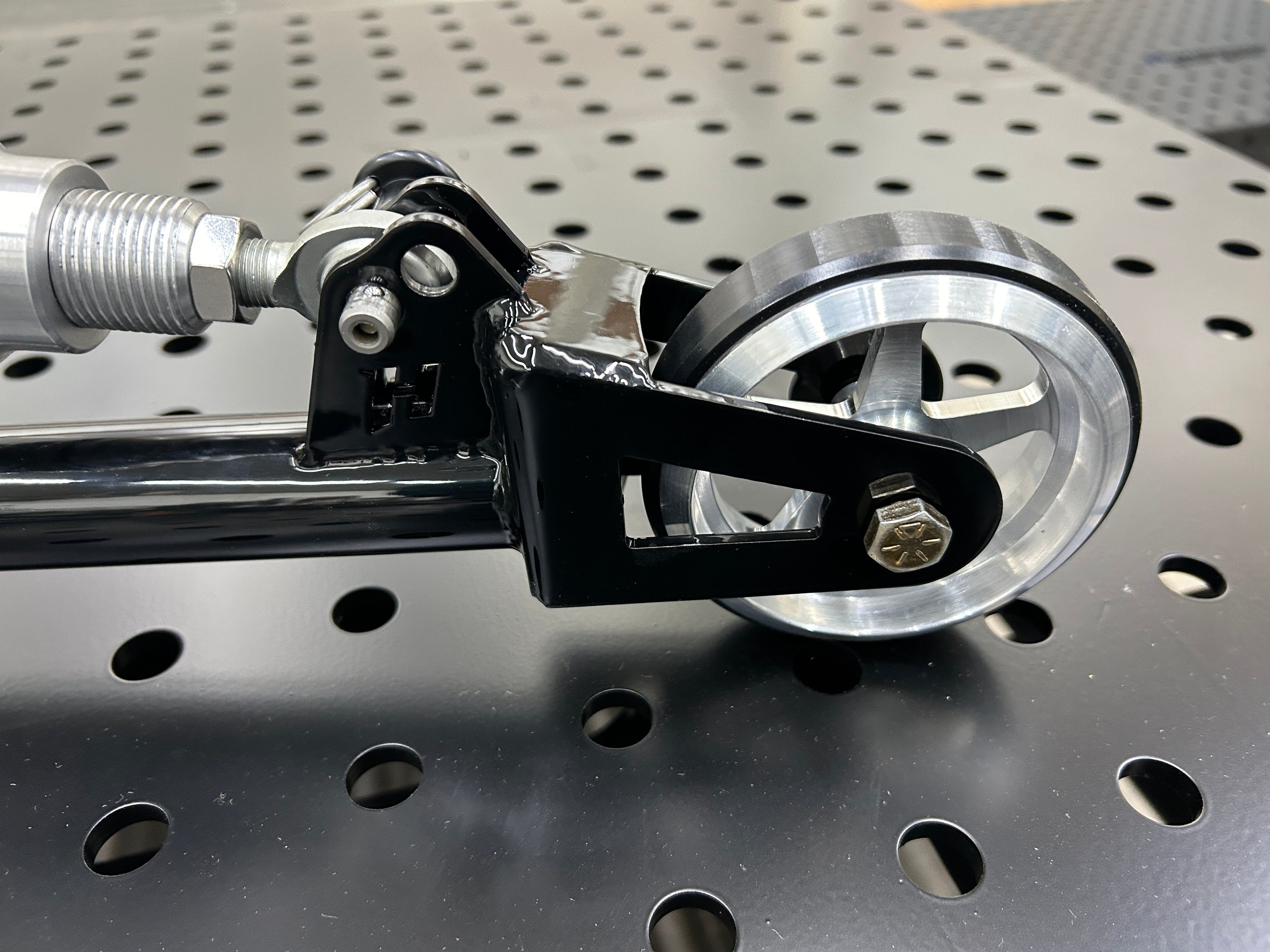

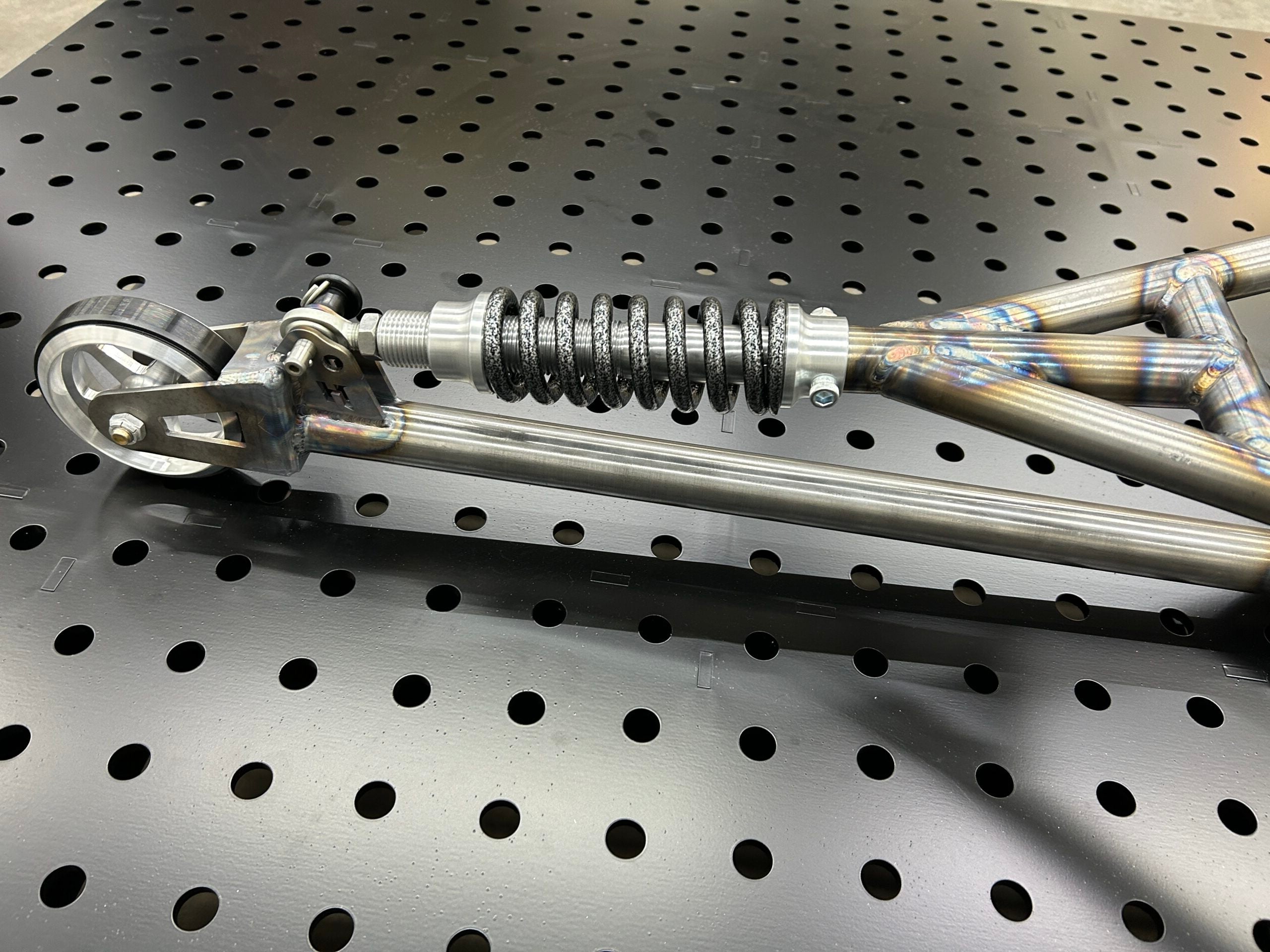

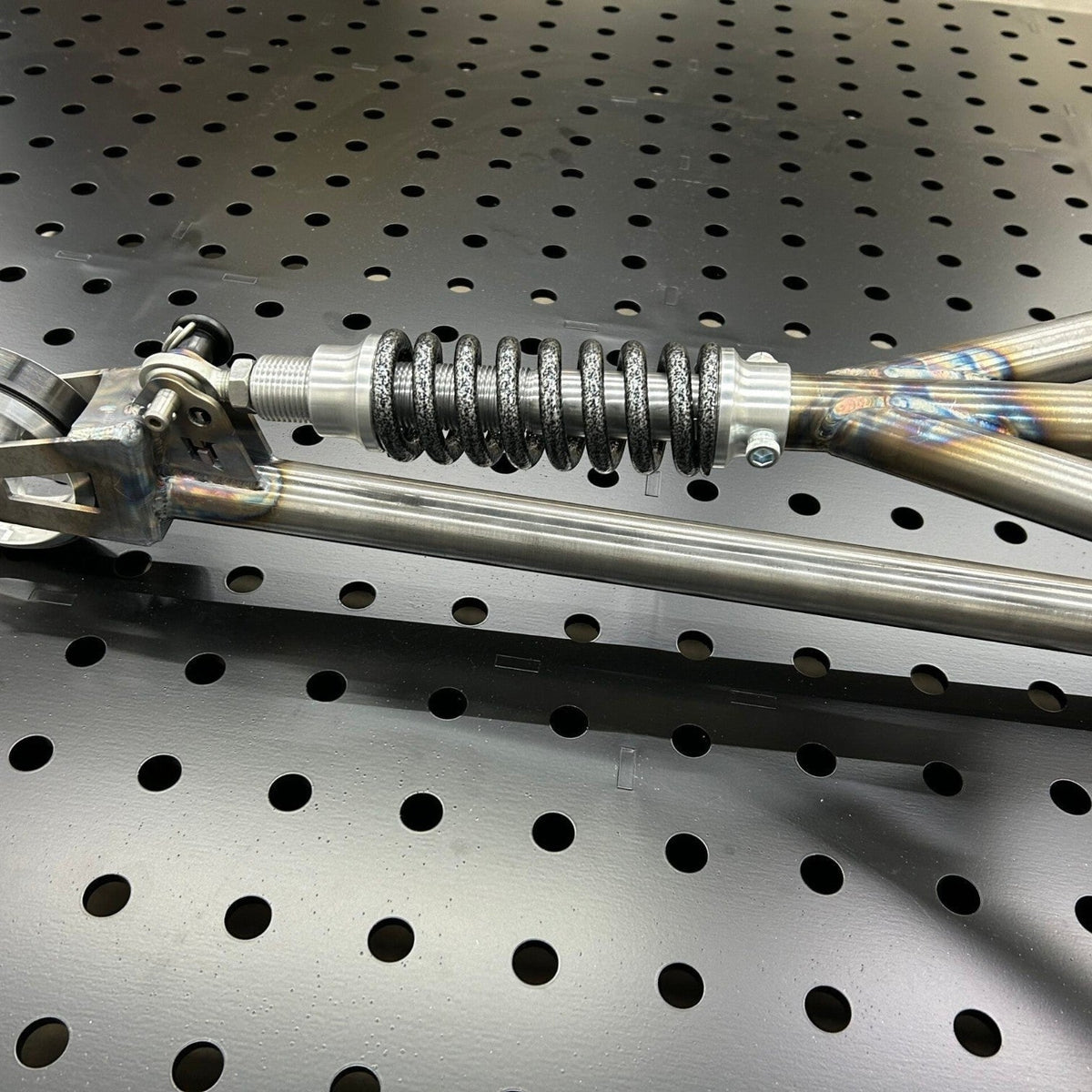

At the heart of the system is our in-house designed spring slider assembly. Rather than using an off-the-shelf slider and spring, we designed the assembly around our own high-compression-rate spring specification. The larger slider assembly provides 4" of travel at the wheel, allowing the wheelie bar to progressively control the car instead of abruptly upsetting the chassis when the wheel contacts the track.

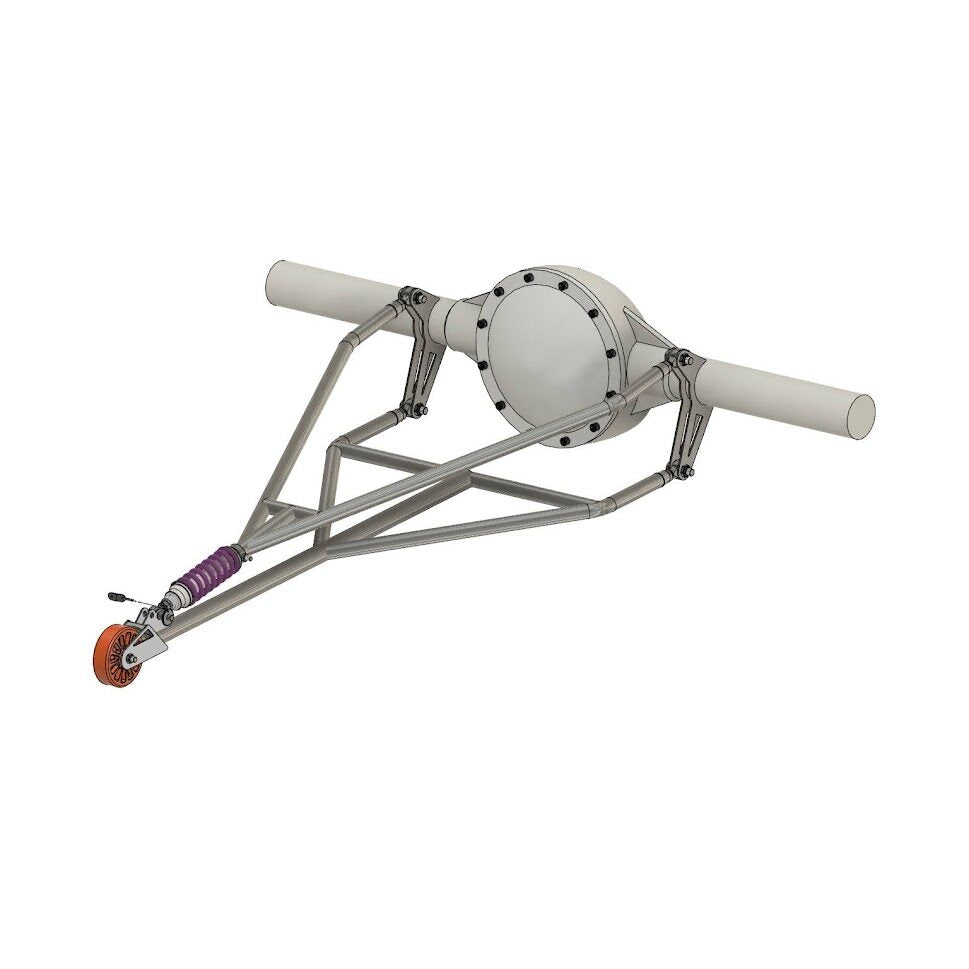

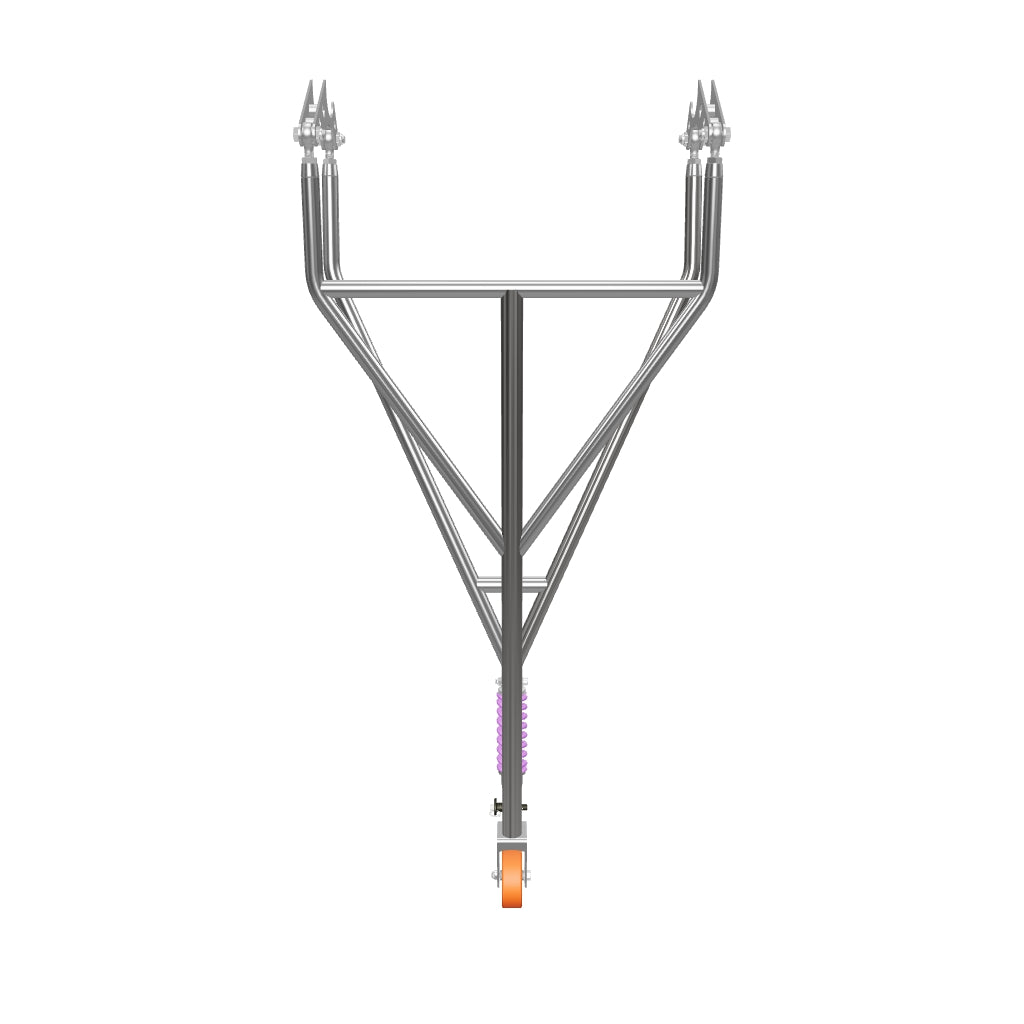

If you see this symbol over a photo, it's actually a 3D viewable file. Click on it and rotate it around to get a 360 degree look!

Features

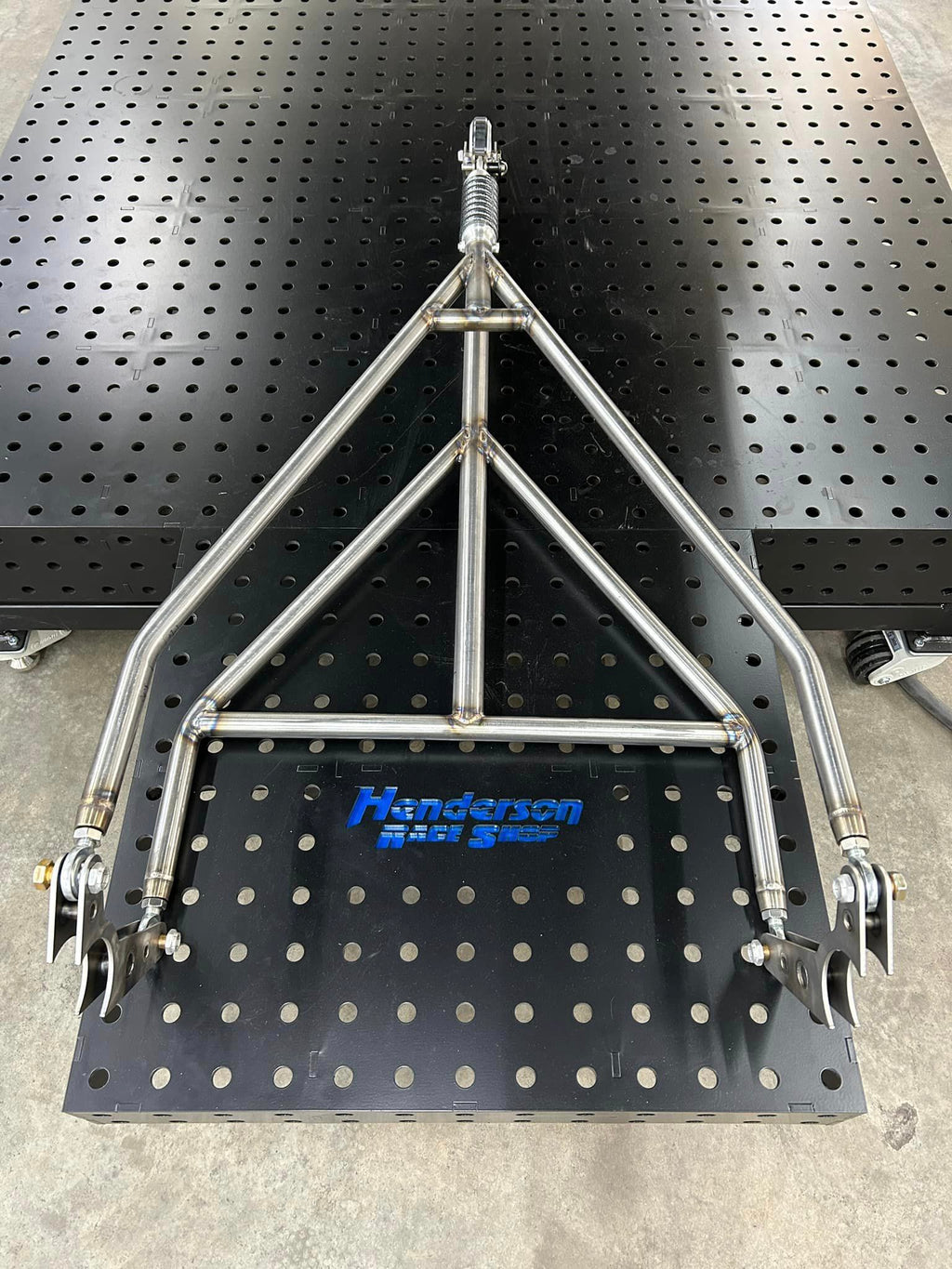

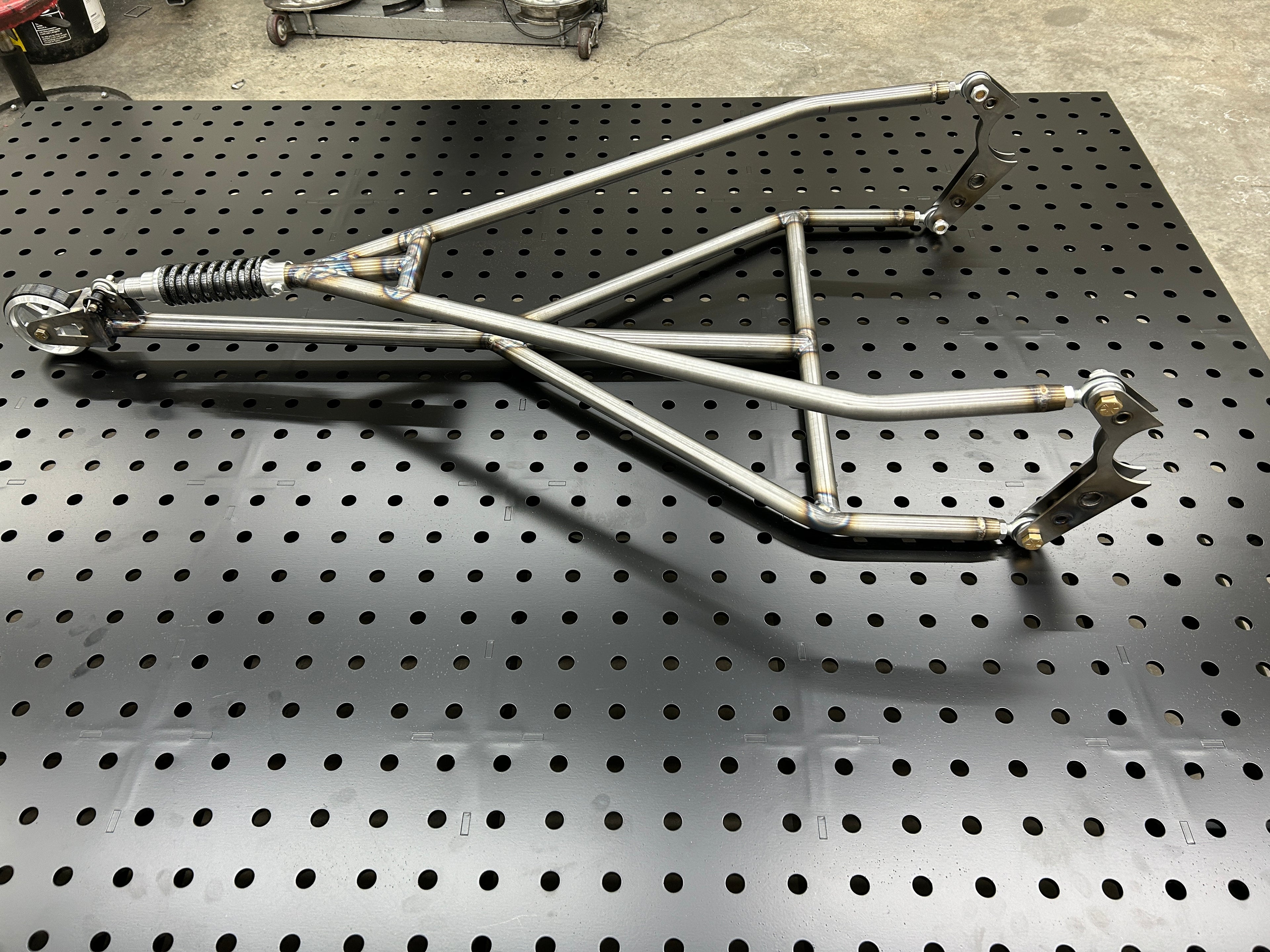

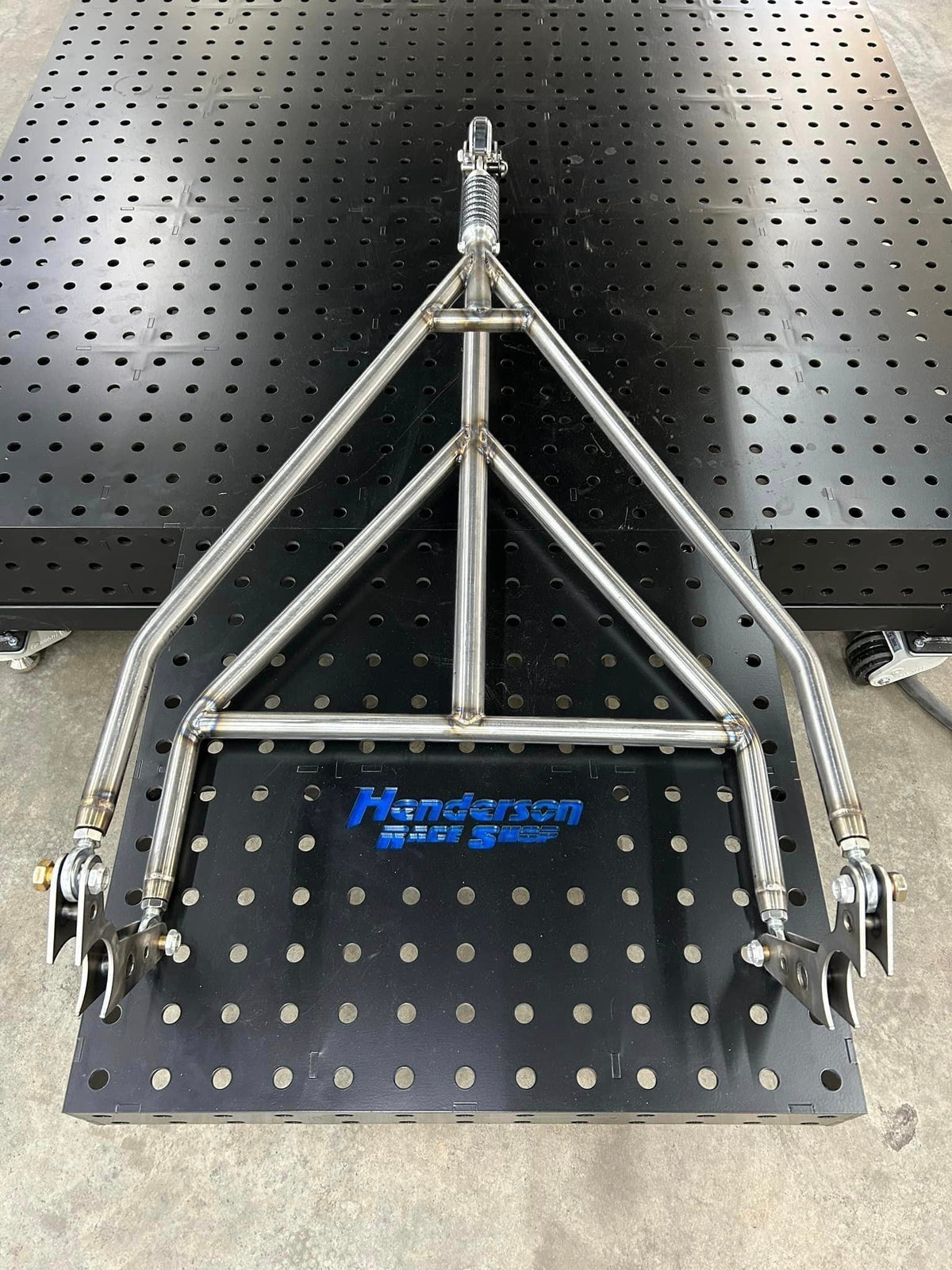

• All chromoly construction

• Fully TIG welded

• HRS-designed heavy-duty spring slider assembly

• HRS-spec high-compression-rate spring

• 4" of travel at the wheel

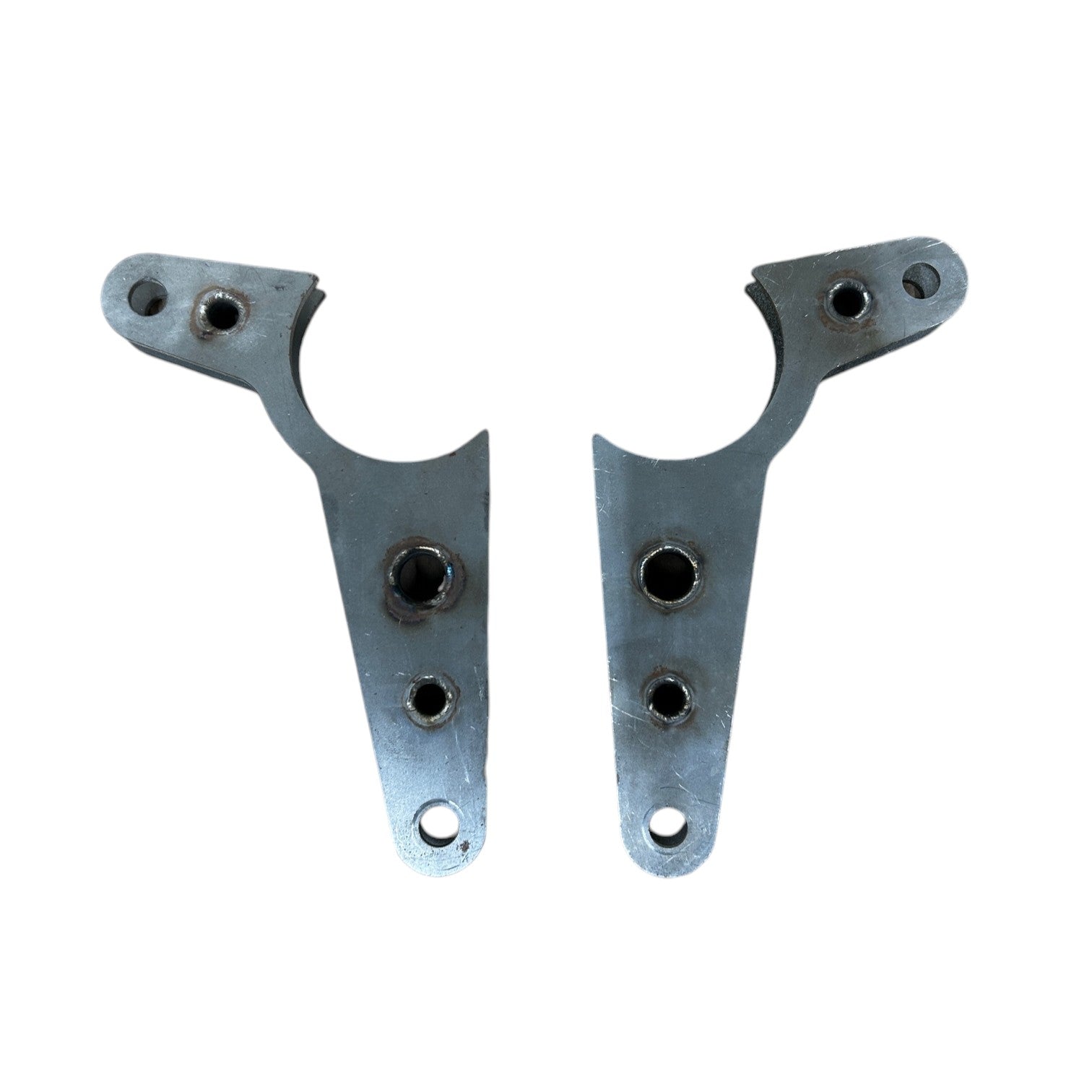

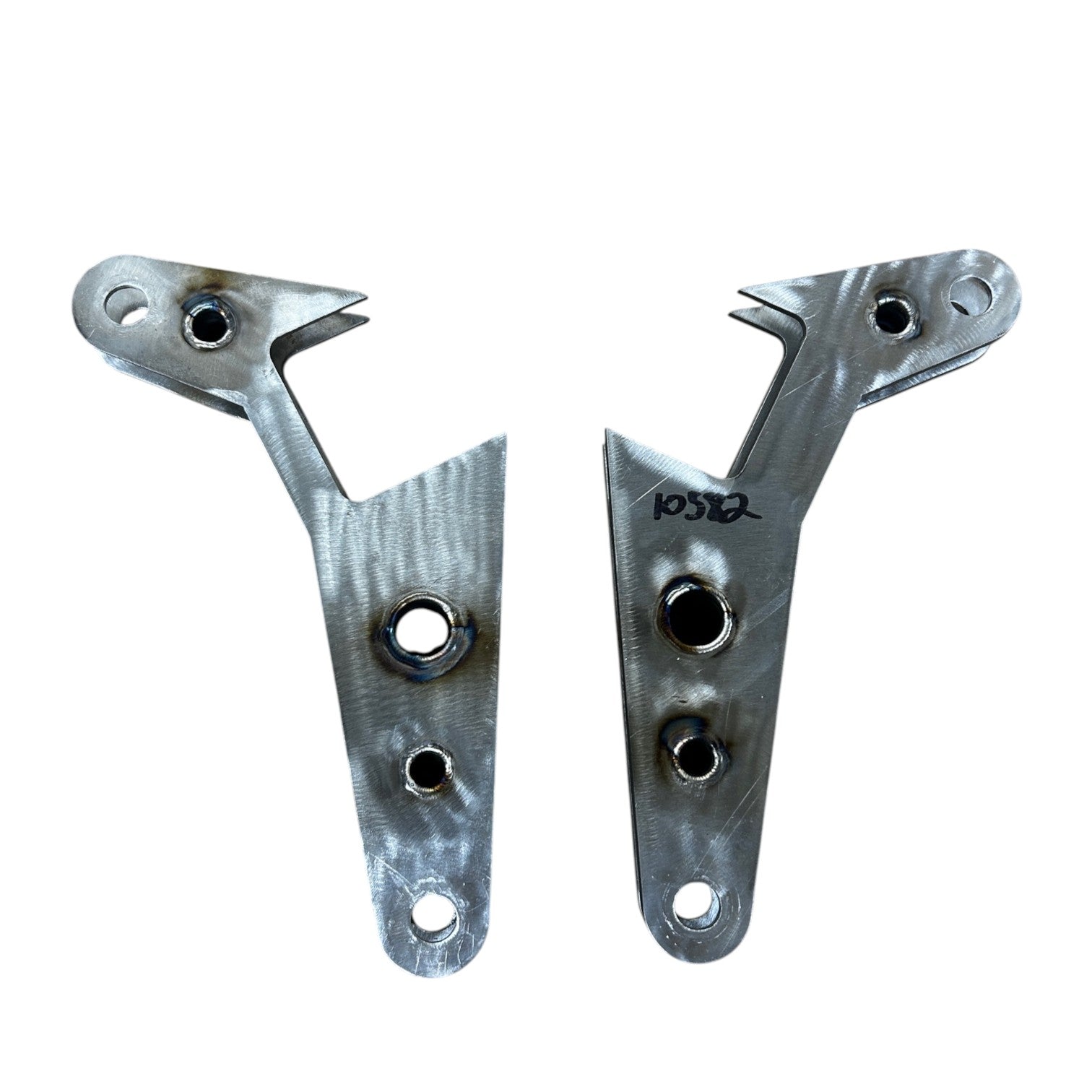

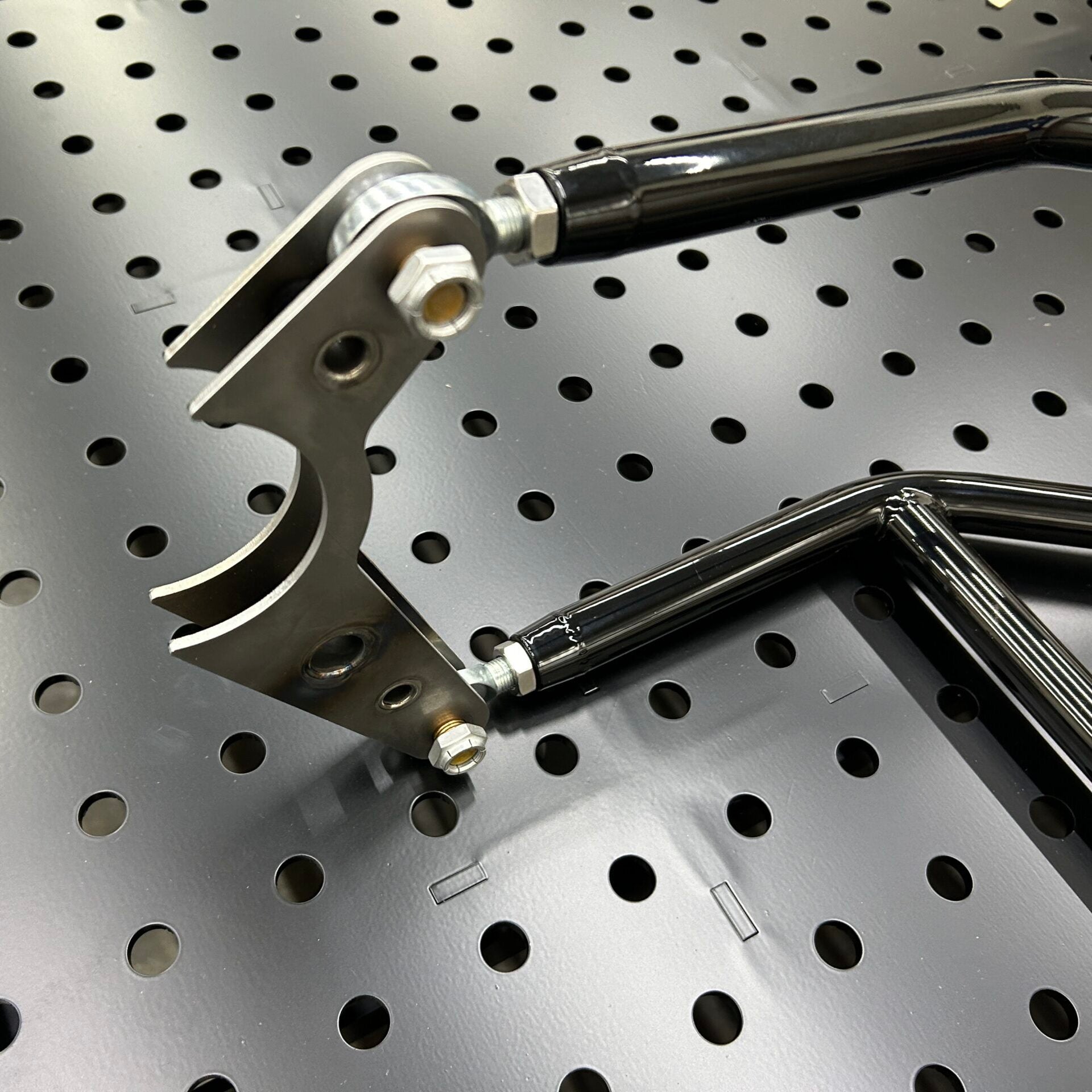

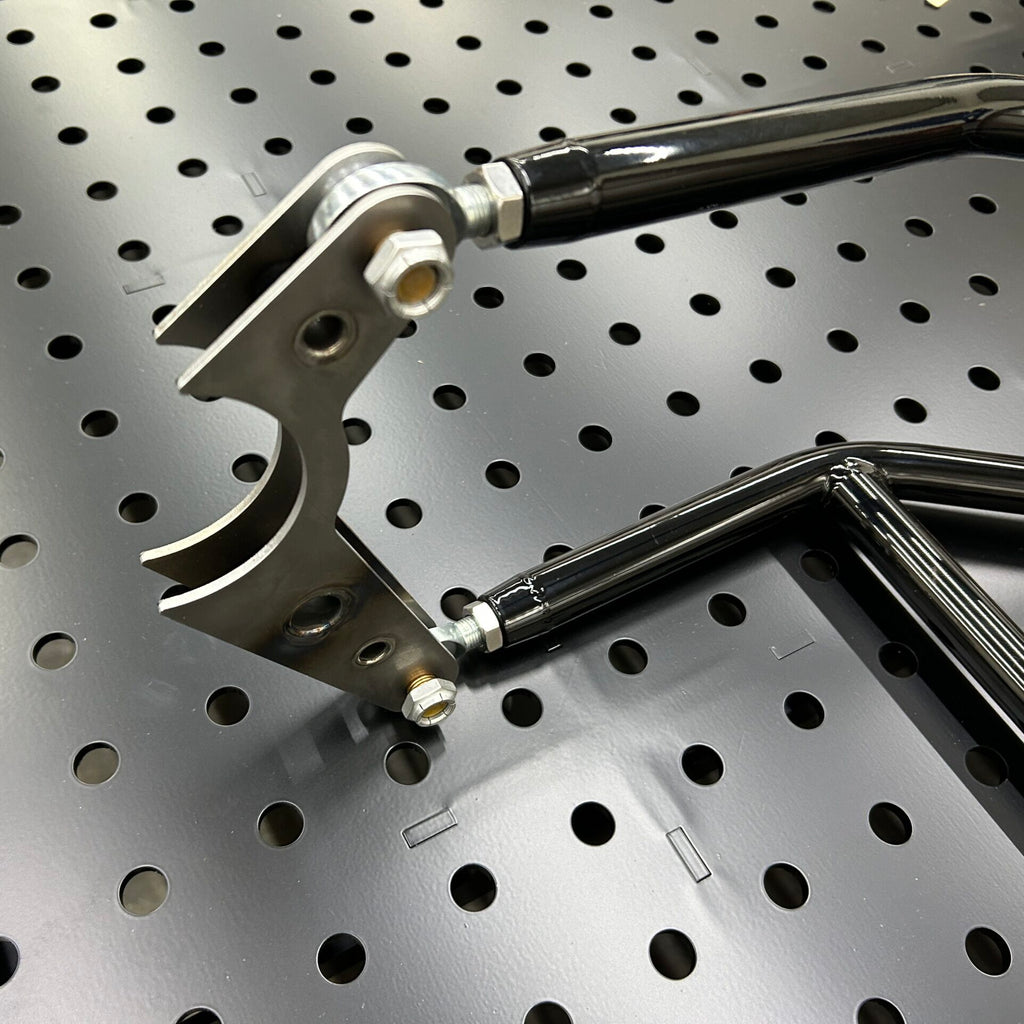

• 10-gauge CRS axle brackets

• Designed for 3" axle housings

• Standard 22" mounting width

• Custom mounting widths available

• Grade 8 hardware throughout

• Mechanical flex-lock nuts for long service life and a clean, professional appearance

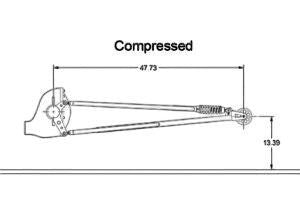

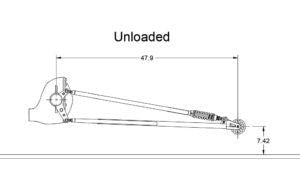

• 48" overall length, measured from axle centerline to wheel

• Available in bare metal or powder coat

Wheelie Bar Setup

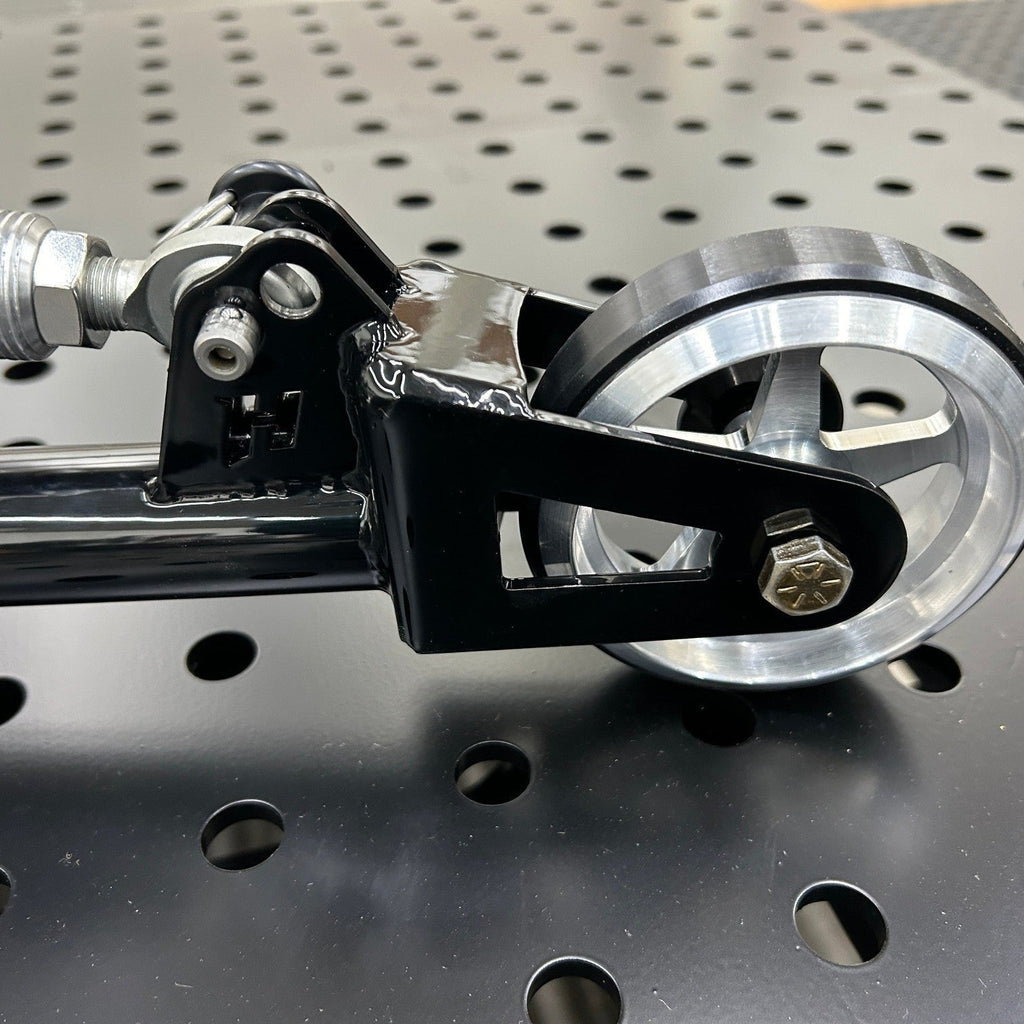

Wheel height should be adjusted so that if the spring slider reaches the end of its available travel, the wheelie bar cannot physically contact the underside of the car.

Proper wheelie bar height and setup will vary depending on the vehicle, suspension, power level, track conditions, and desired launch characteristics.
