These seat mount brackets are designed specifically to install Kirkey Pro Street Series 38 and 55 High-Back seats in the following 1994–2004 GM S-Series vehicles:

  • Chevrolet S-10 Pickup

  • Chevrolet Blazer

  • GMC Sonoma

  • GMC Jimmy

Unlike many competing brackets, these mounts are designed to fit under the seat, providing a cleaner, lower-profile installation.

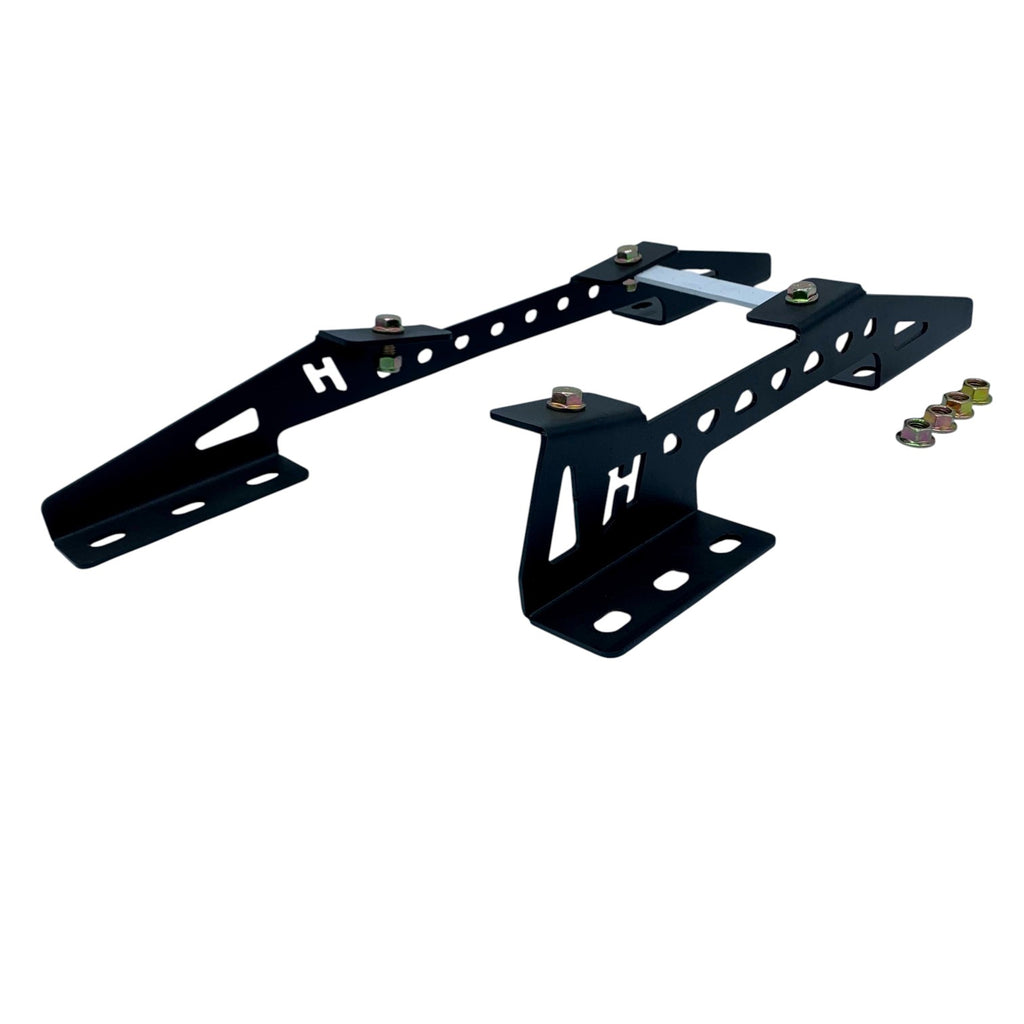

Manufactured from CNC plasma-cut 11-gauge steel and finished in a durable black textured powder coat, these brackets are built for strength, durability, and years of dependable service. Multiple floor mounting holes provide up to 3 inches of front-to-back seat adjustment, allowing you to fine-tune your seating position.

The upper mounting holes can be enlarged to accept Dzus® fasteners for quick seat removal.

Features

  • Fits Kirkey Pro Street Series 38 and 55 High-Back seats

  • Designed for:

    • 1994–2004 Chevrolet S-10

    • 1994–2004 Chevrolet Blazer

    • 1994–2004 GMC Sonoma

    • 1994–2004 GMC Jimmy

  • Hidden under-seat design for a clean installation

  • CNC plasma-cut from 11-gauge steel

  • Durable black textured powder-coated finish

  • Up to 3" of front-to-back seat adjustment

  • Compatible with Dzus fasteners (with hole enlargement)

  • Includes Grade 8 mounting hardware for seat and floor installation

  • Sold as one pair (enough for one seat)

  • Made in the USA

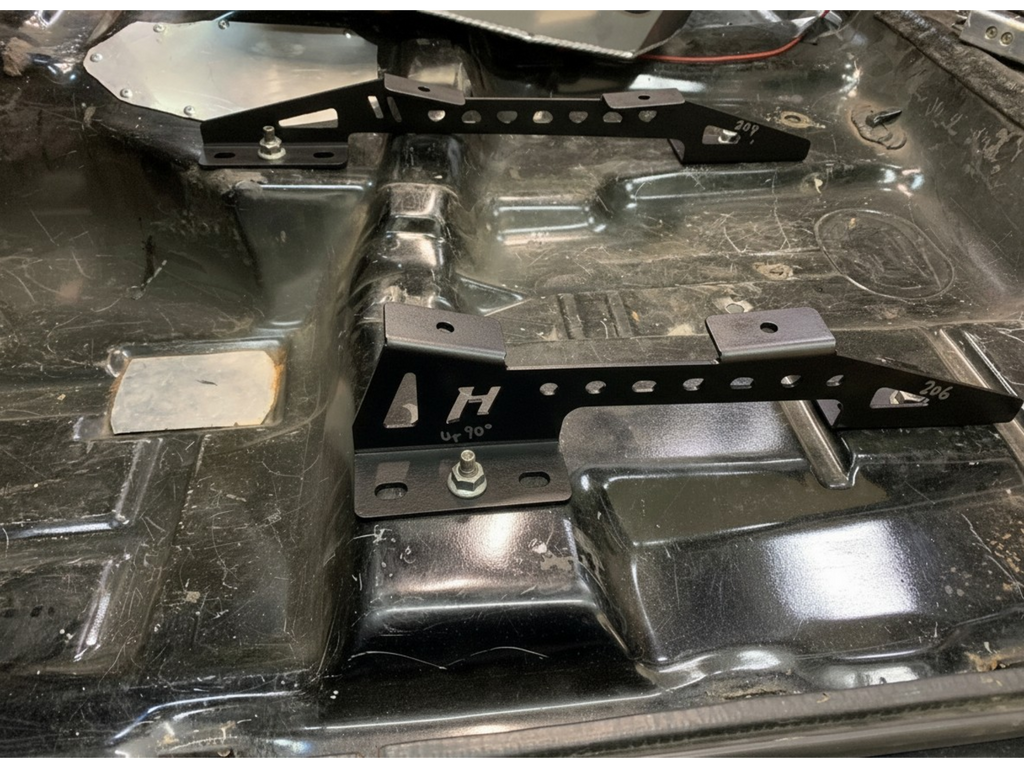

Installation Notes

  • The passenger-side inner bracket may require minor floor clearance depending on the factory mounting hole location.

  • On some vehicles, the inside rear seat mounting stud was relocated farther inboard by the factory. If your vehicle is equipped this way, install the inner bracket using the front factory stud, then drill the rear mounting hole and secure it with a bolt. A factory dimple in the floor marks the typical rear stud location.

If your vehicle is equipped with a roll bar or roll cage, the seat back should be properly supported in accordance with current NHRA rules.

HRS Bolt-on Seat Back Brace

Click the links below for popular items you will want with your seat mounts!

Weld-in Floor Mount for 5 Point Harness Submarine Belt

Kirkey Seats and covers

Seat Bracket Bolted Harness Mount Set

Bolt-In 5 Point To Floor Adapter

5 Point Harness Weld Bung

Install Video

https://youtu.be/NkW6tLWmTBg

Disclaimer

Mounts come black texture powder coated!
