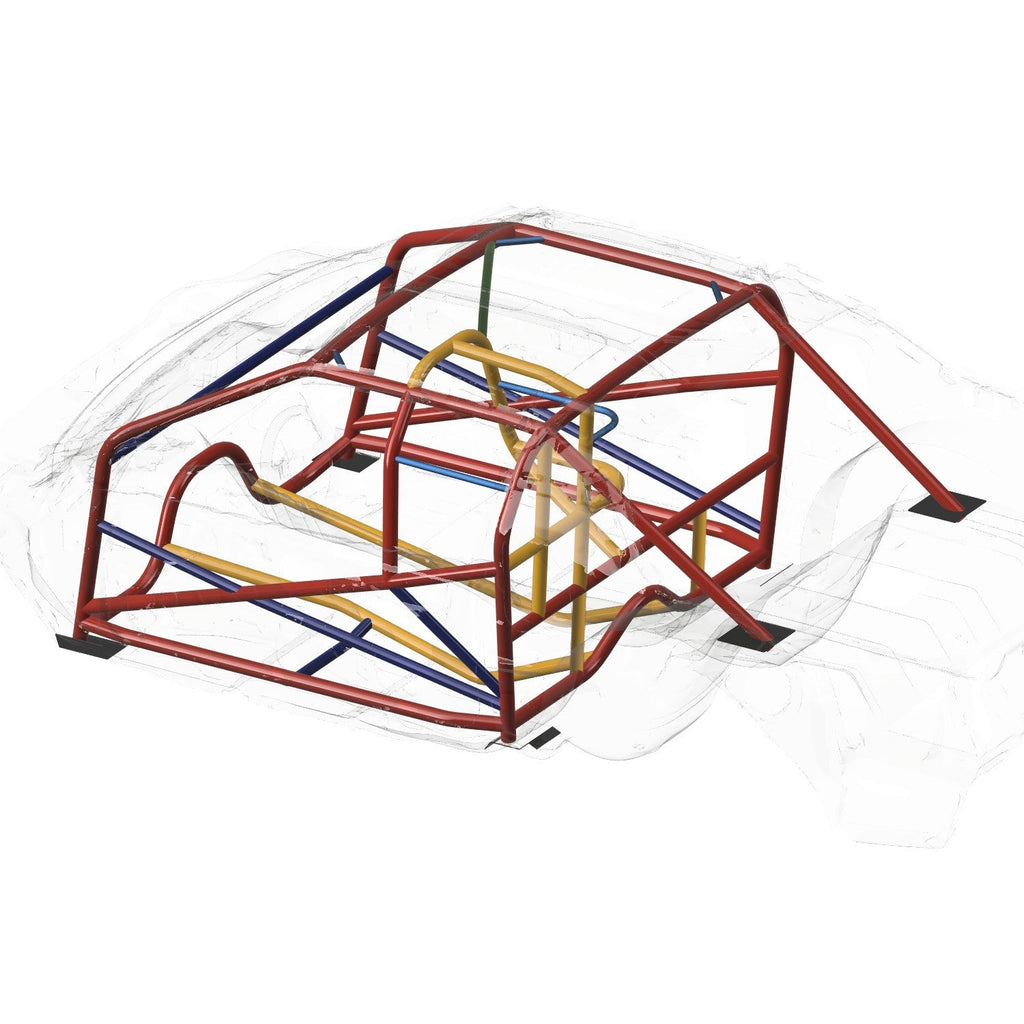

  • Henderson Race Shop Store 25.5 roll cage kit for 1982-1992 Camaro and Firebird with T-Tops, 3D CAD design view.
  • Henderson Race Shop 25.5 roll cage installed in a black 1982-1992 Camaro with T-Tops, showing interior tube layout.

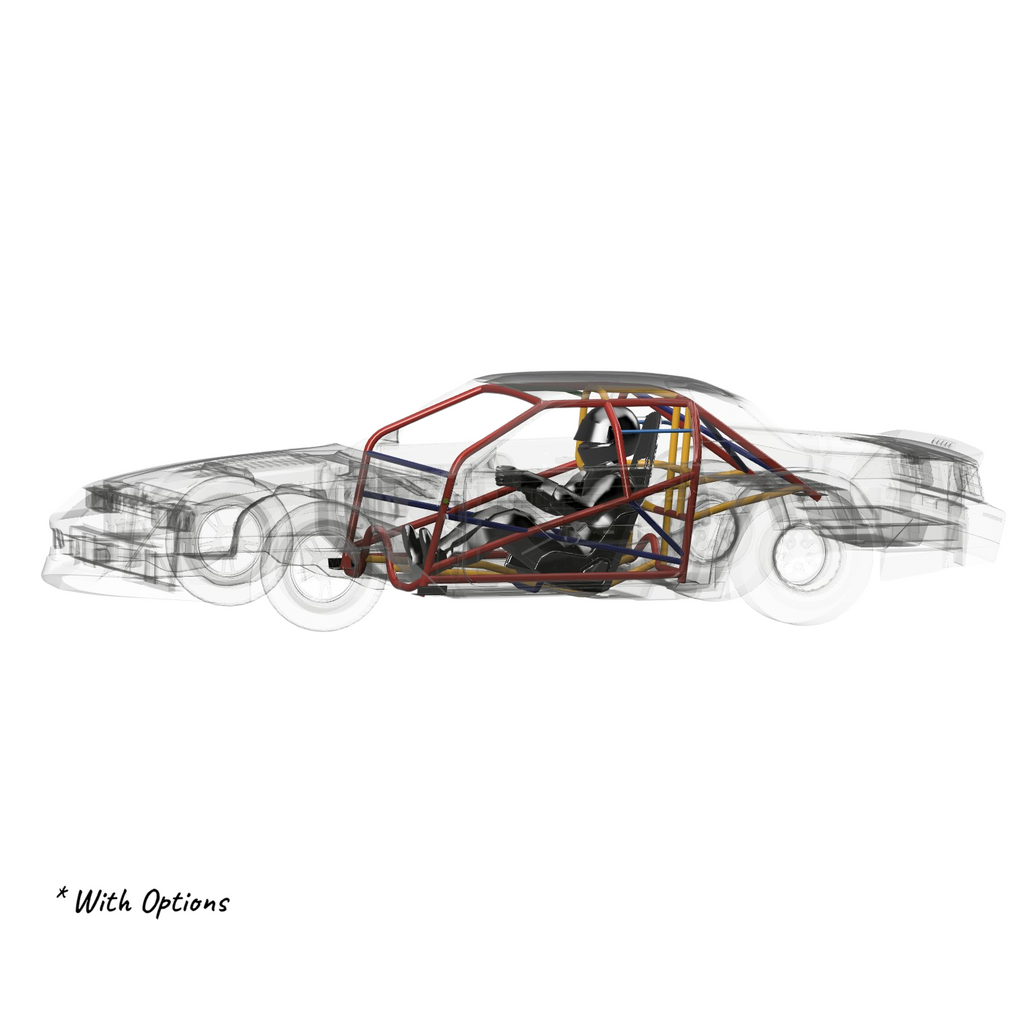

  • Henderson Race Shop Store 25.5 roll cage kit for 1982-1992 Camaro and Firebird shown in a 3D CAD wireframe model.

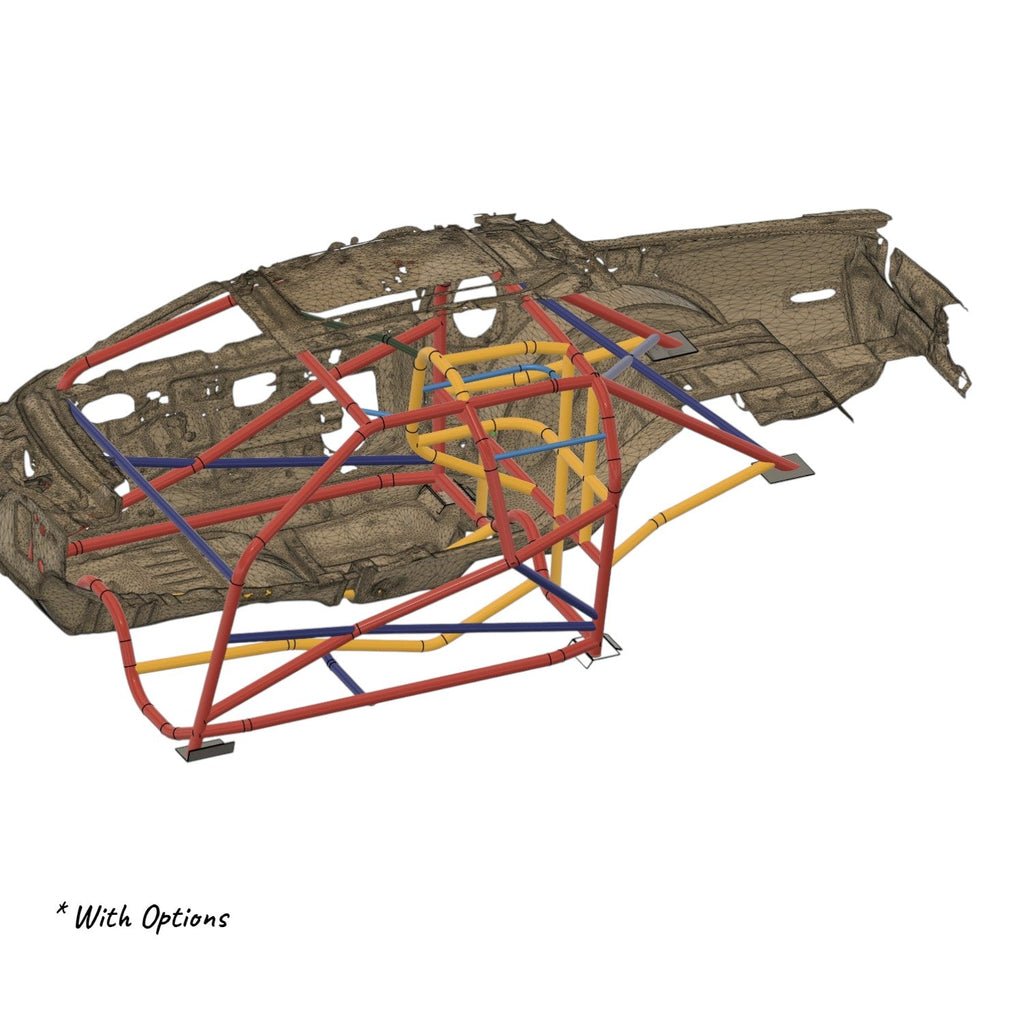

  • Henderson Race Shop 25.5 roll cage kit for 1982-1992 Camaro and Firebird, shown in a 3D CAD design view.
  • Henderson Race Shop Store 25.5 roll cage kit for 1982-1992 Camaro and Firebird, featuring 4130 chromoly steel tubing.
  • Henderson Race Shop Store 25.5 roll cage CAD design for 1982-1992 Camaro and Firebird with T-Tops
  • Henderson Race Shop 25.5 roll cage kit for 1982-1992 Camaro and Firebird shown in a 3D CAD wireframe model.

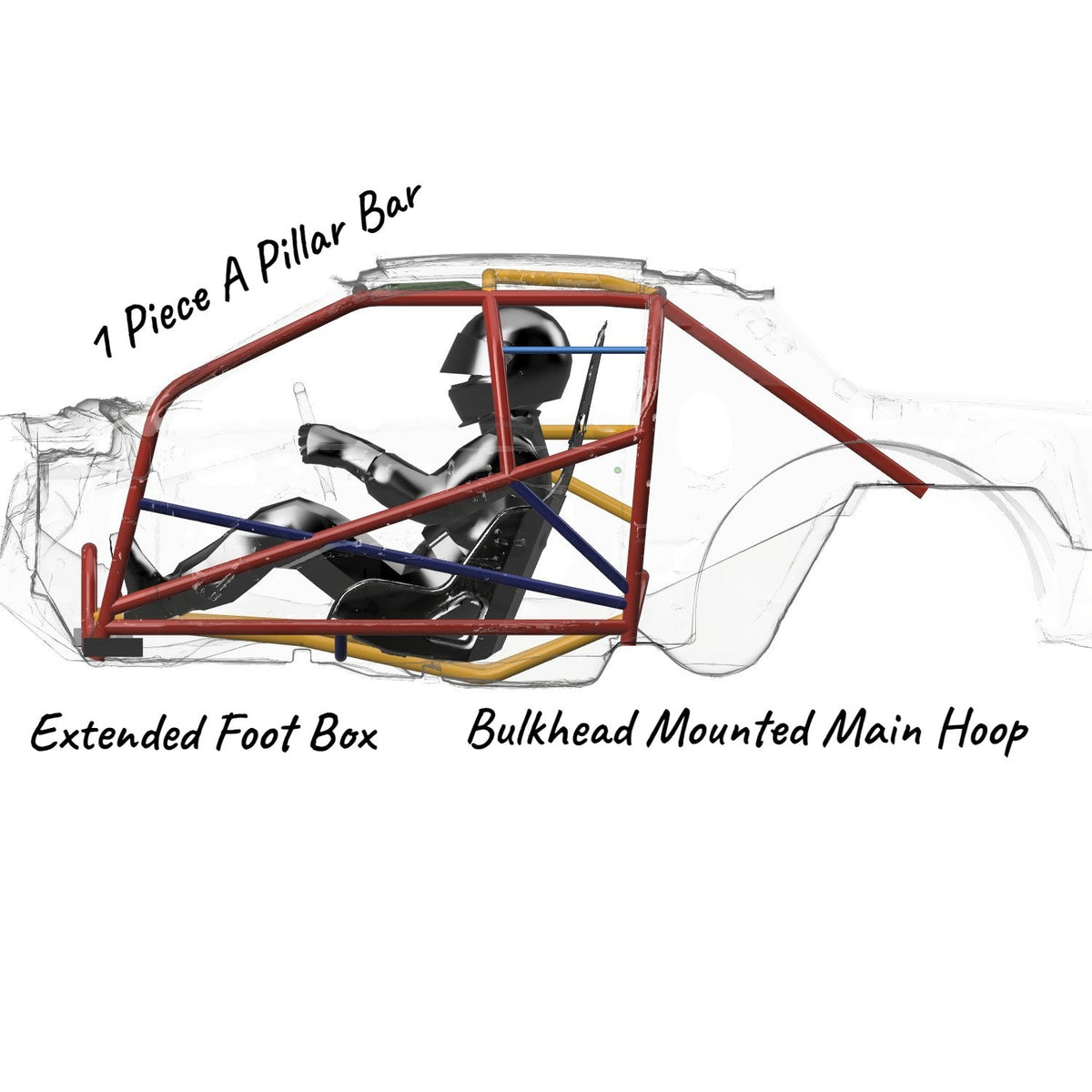

  • Henderson Race Shop 25.5 roll cage CAD design for 1982-1992 Camaro and Firebird showing above-floor structure.

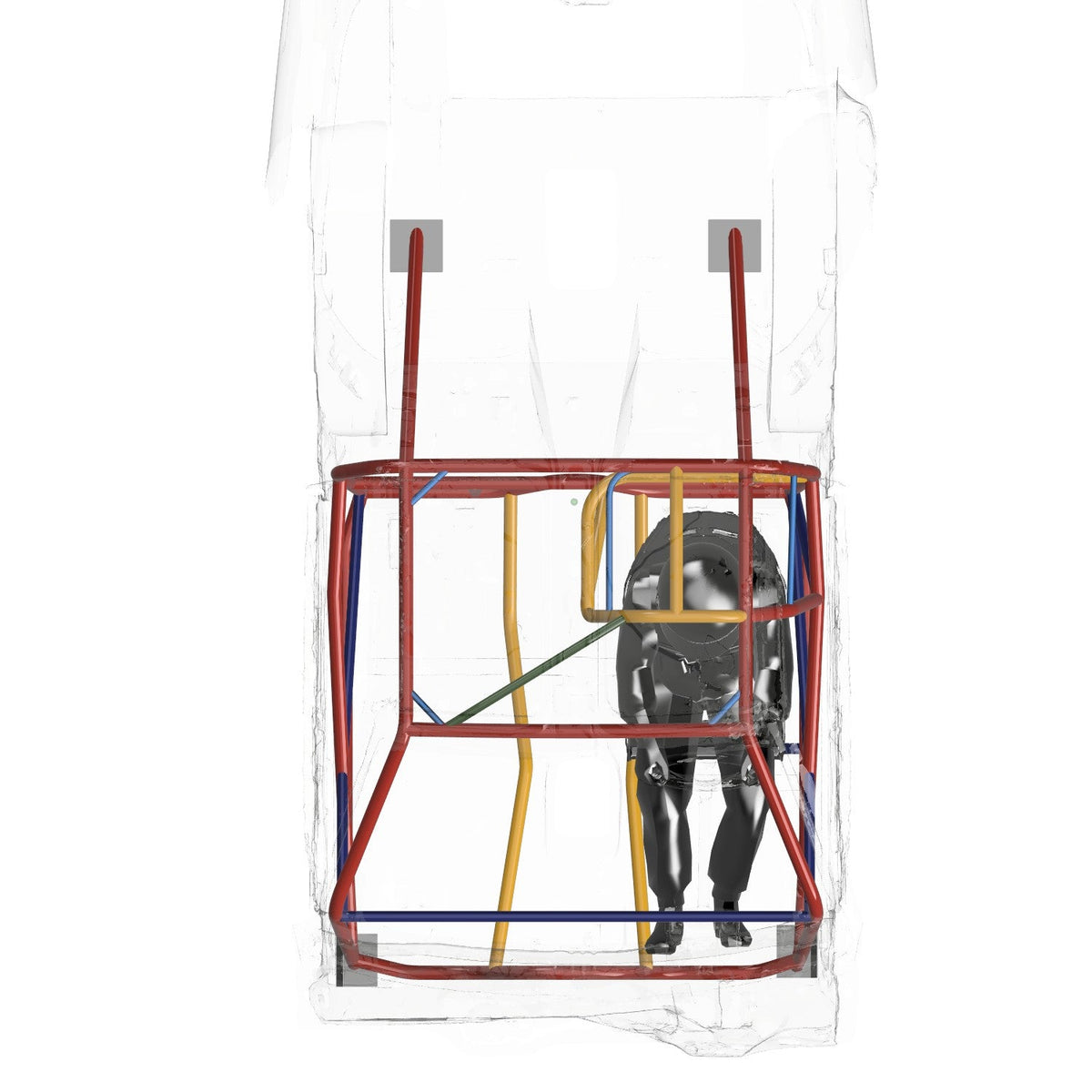

  • Henderson Race Shop Store 25.5 roll cage kit for 1982-1992 Camaro and Firebird, featuring 4130 chromoly CAD design.
  • Henderson Race Shop Store 25.5 roll cage kit for 3rd gen Camaro and Firebird showing rolled main hoop and roof bar.
  • Henderson Race Shop Store 25.5 roll cage upgrade showing rear X-brace and corner braces in a 3D CAD design view.
  • Henderson Race Shop Store 25.5 roll cage kit for 1982-1992 Camaro and Firebird, featuring 4130 chromoly tubing.

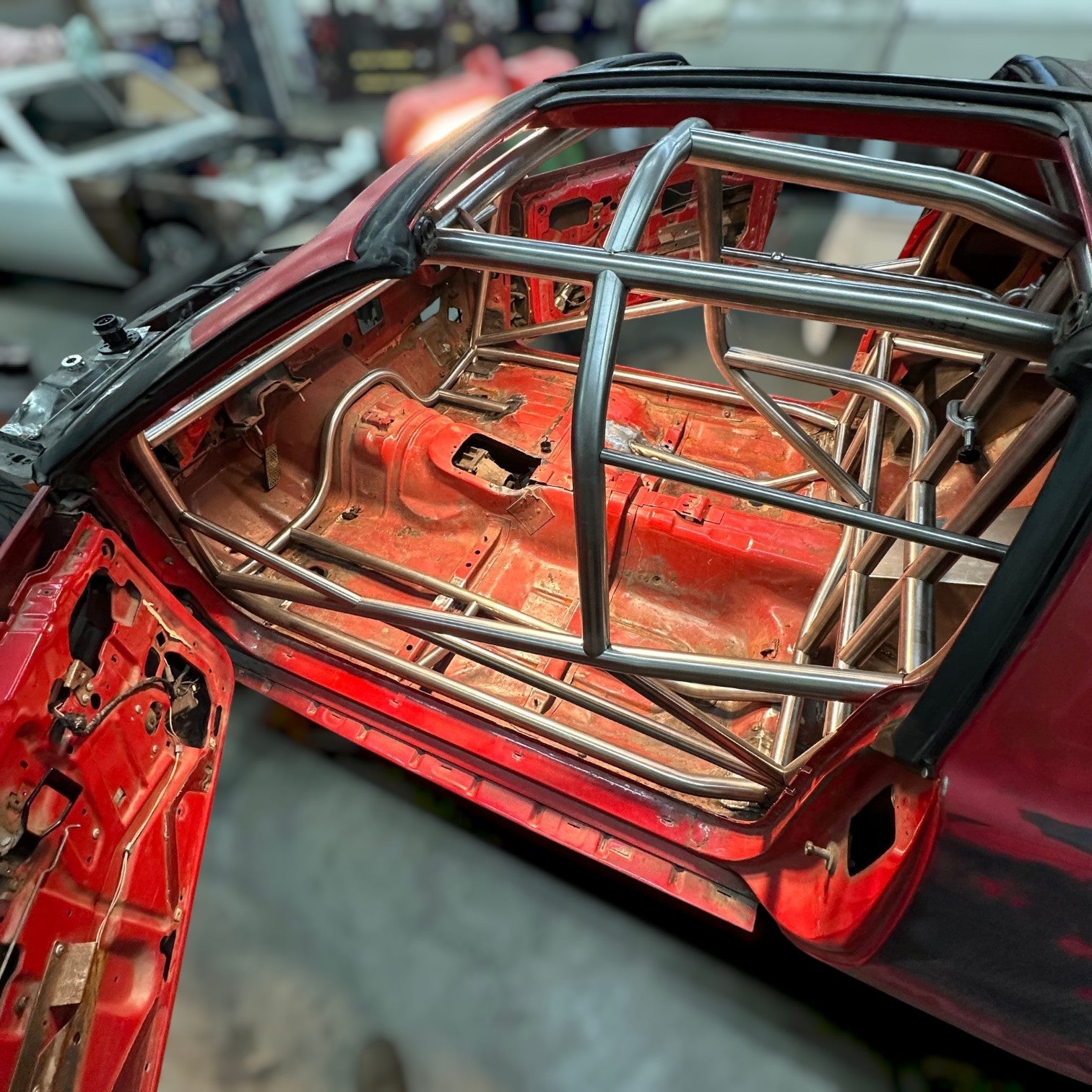

  • Henderson Race Shop 25.5 roll cage kit installed in a red 1982-1992 Camaro or Firebird interior with T-tops.

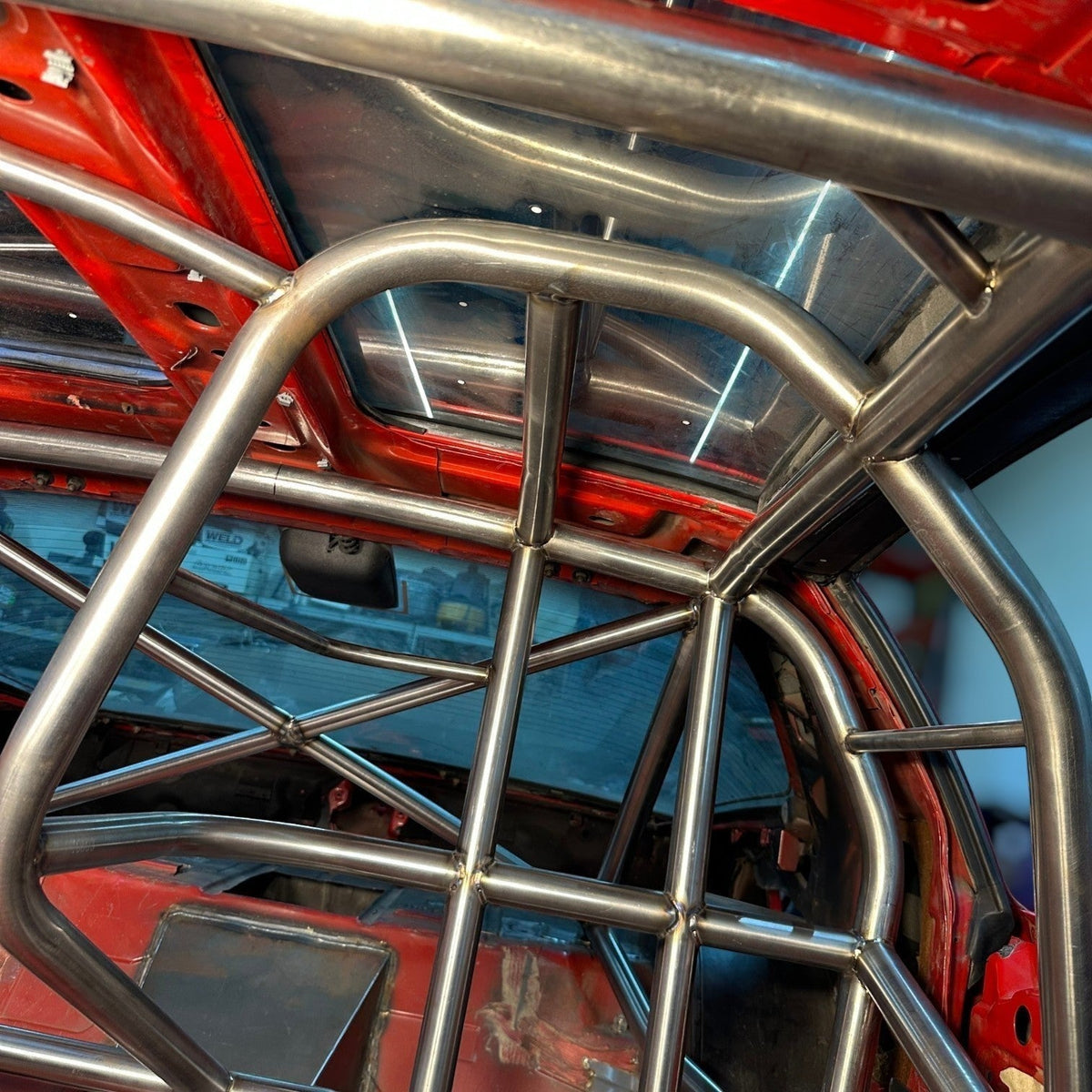

  • Henderson Race Shop 25.5 roll cage kit installed in a red 1982-1992 Camaro or Firebird with T-Tops

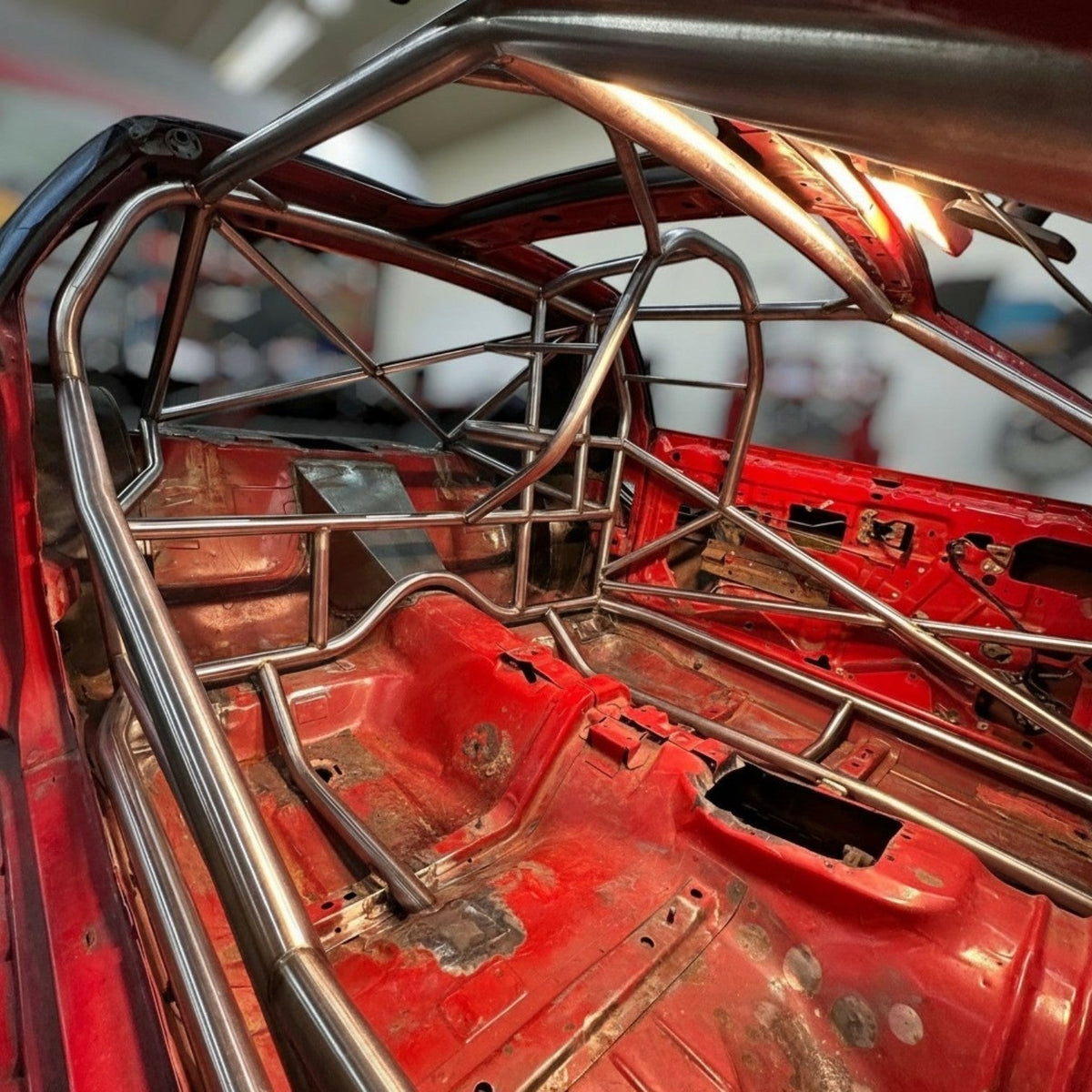

  • Henderson Race Shop Store 25.5 roll cage kit installed in a red 1982-1992 Camaro or Firebird with T-Tops
  • Henderson Race Shop Store 25.5 roll cage kit installed in a red 1982-1992 Camaro or Firebird with T-Tops

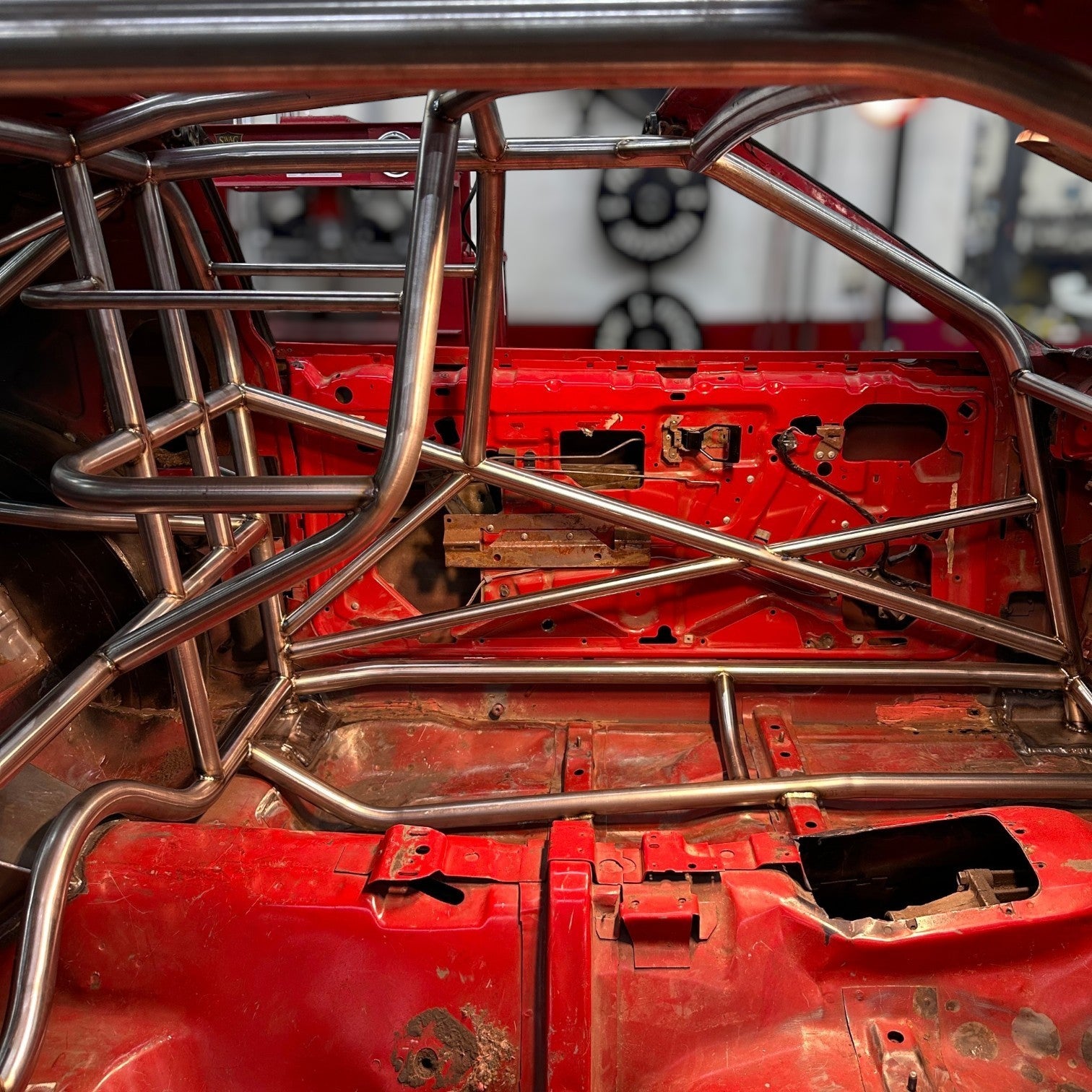

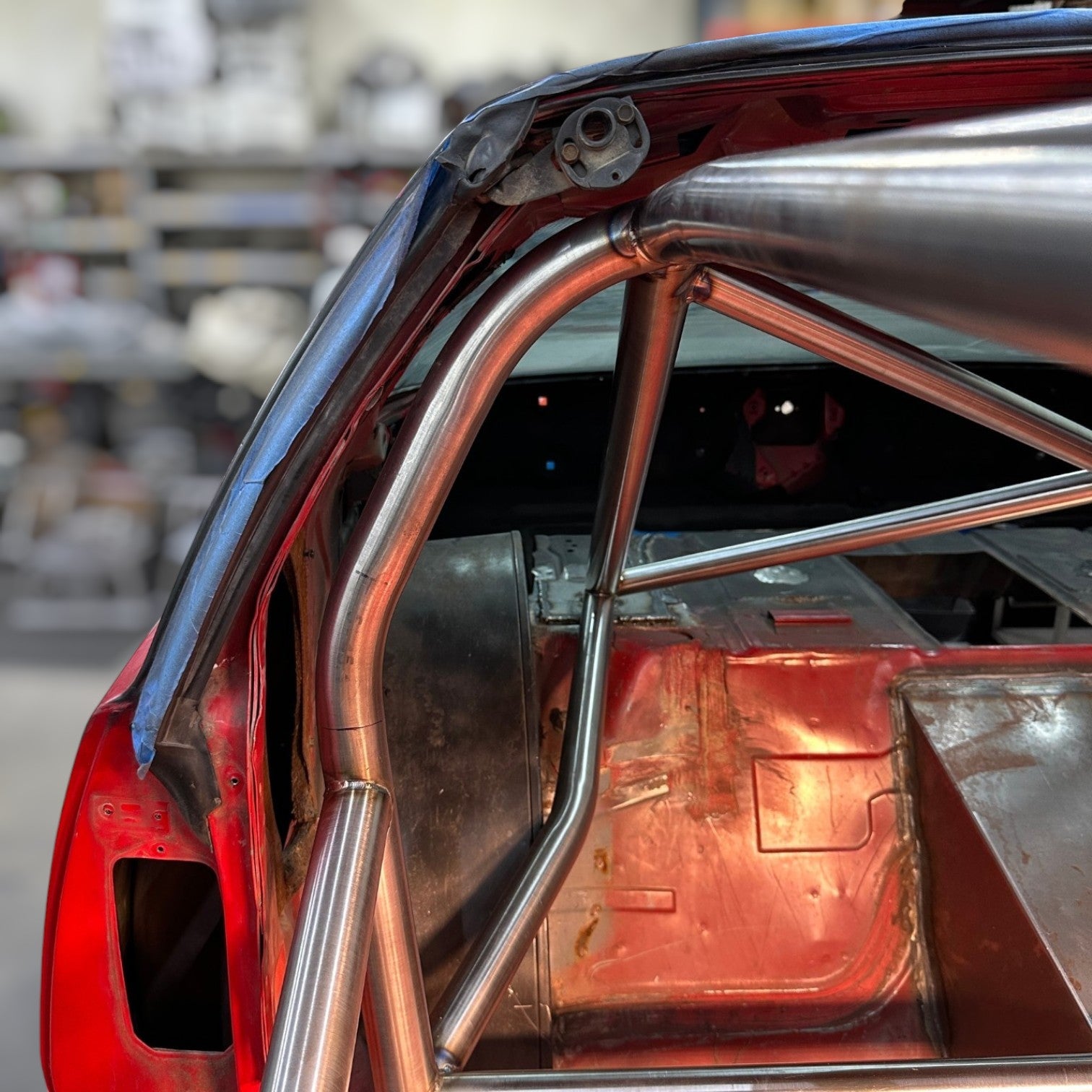

  • Henderson Race Shop 25.5 roll cage installed in a 3rd gen Camaro or Firebird, showing above-floor tubing and T-top fit.
  • Henderson Race Shop Store 25.5 roll cage installed in a red 3rd Gen Camaro or Firebird with factory T-Tops
  • Henderson Race Shop Store 4130 chromoly roll cage tube featuring a precision etched saddle mark for easy installation.
  • Henderson Race Shop Store 4130 chromoly roll cage tube featuring a laser-etched part number for easy assembly identification.

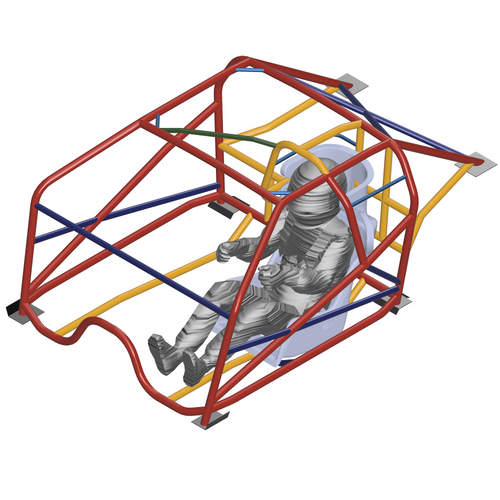

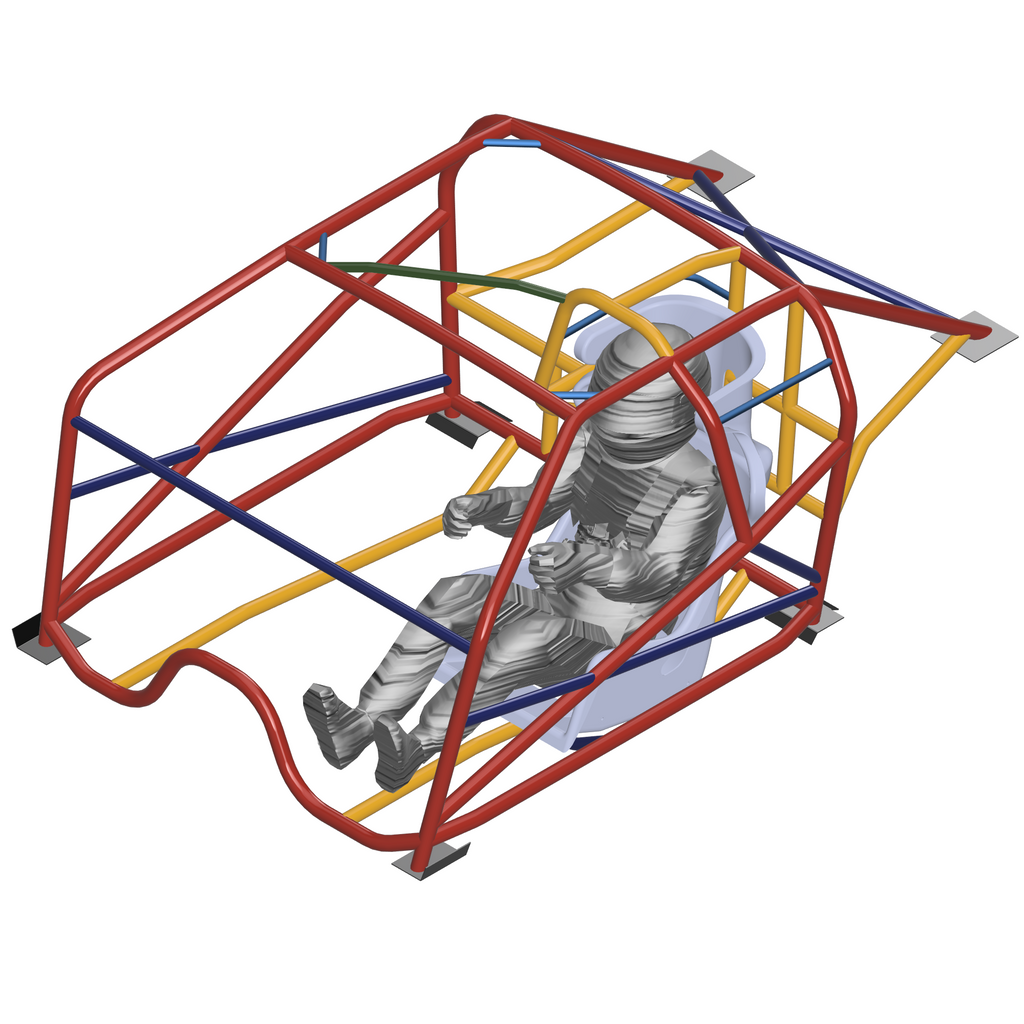

  • Henderson Race Shop 25.5 roll cage kit for 1982-1992 Camaro and Firebird, featuring a driver in a racing seat.
  • Henderson Race Shop Store 25.5 roll cage kit for 1982-1992 Camaro and Firebird with T-Tops, 3D CAD design view.
  • Henderson Race Shop 25.5 roll cage installed in a black 1982-1992 Camaro with T-Tops, showing interior tube layout.
  • Henderson Race Shop Store 25.5 roll cage kit for 1982-1992 Camaro and Firebird shown in a 3D CAD wireframe model.
  • Henderson Race Shop 25.5 roll cage kit for 1982-1992 Camaro and Firebird, shown in a 3D CAD design view.
  • Henderson Race Shop Store 25.5 roll cage kit for 1982-1992 Camaro and Firebird, featuring 4130 chromoly steel tubing.
  • Henderson Race Shop Store 25.5 roll cage CAD design for 1982-1992 Camaro and Firebird with T-Tops
  • Henderson Race Shop 25.5 roll cage kit for 1982-1992 Camaro and Firebird shown in a 3D CAD wireframe model.
  • Henderson Race Shop 25.5 roll cage CAD design for 1982-1992 Camaro and Firebird showing above-floor structure.
  • Henderson Race Shop Store 25.5 roll cage kit for 1982-1992 Camaro and Firebird, featuring 4130 chromoly CAD design.
  • Henderson Race Shop Store 25.5 roll cage kit for 3rd gen Camaro and Firebird showing rolled main hoop and roof bar.
  • Henderson Race Shop Store 25.5 roll cage upgrade showing rear X-brace and corner braces in a 3D CAD design view.
  • Henderson Race Shop Store 25.5 roll cage kit for 1982-1992 Camaro and Firebird, featuring 4130 chromoly tubing.
  • Henderson Race Shop 25.5 roll cage kit installed in a red 1982-1992 Camaro or Firebird interior with T-tops.
  • Henderson Race Shop 25.5 roll cage kit installed in a red 1982-1992 Camaro or Firebird with T-Tops
  • Henderson Race Shop Store 25.5 roll cage kit installed in a red 1982-1992 Camaro or Firebird with T-Tops
  • Henderson Race Shop Store 25.5 roll cage kit installed in a red 1982-1992 Camaro or Firebird with T-Tops
  • Henderson Race Shop 25.5 roll cage installed in a 3rd gen Camaro or Firebird, showing above-floor tubing and T-top fit.
  • Henderson Race Shop Store 25.5 roll cage installed in a red 3rd Gen Camaro or Firebird with factory T-Tops
  • Henderson Race Shop Store 4130 chromoly roll cage tube featuring a precision etched saddle mark for easy installation.
  • Henderson Race Shop Store 4130 chromoly roll cage tube featuring a laser-etched part number for easy assembly identification.
  • Henderson Race Shop 25.5 roll cage kit for 1982-1992 Camaro and Firebird, featuring a driver in a racing seat.
25.5 "Easy Install" Cage, 1982-1992 Camaro and Firebird with T-Tops

25.5 "Easy Install" Cage, 1982-1992 Camaro and Firebird with T-Tops

Door Bar Layout (See visuals in 1st photo after selecting)
Rear Bar Layout
Add Rear X and Corner Braces? (clears mini tubs)
$3,295.95 USD
$3,295.95 USD

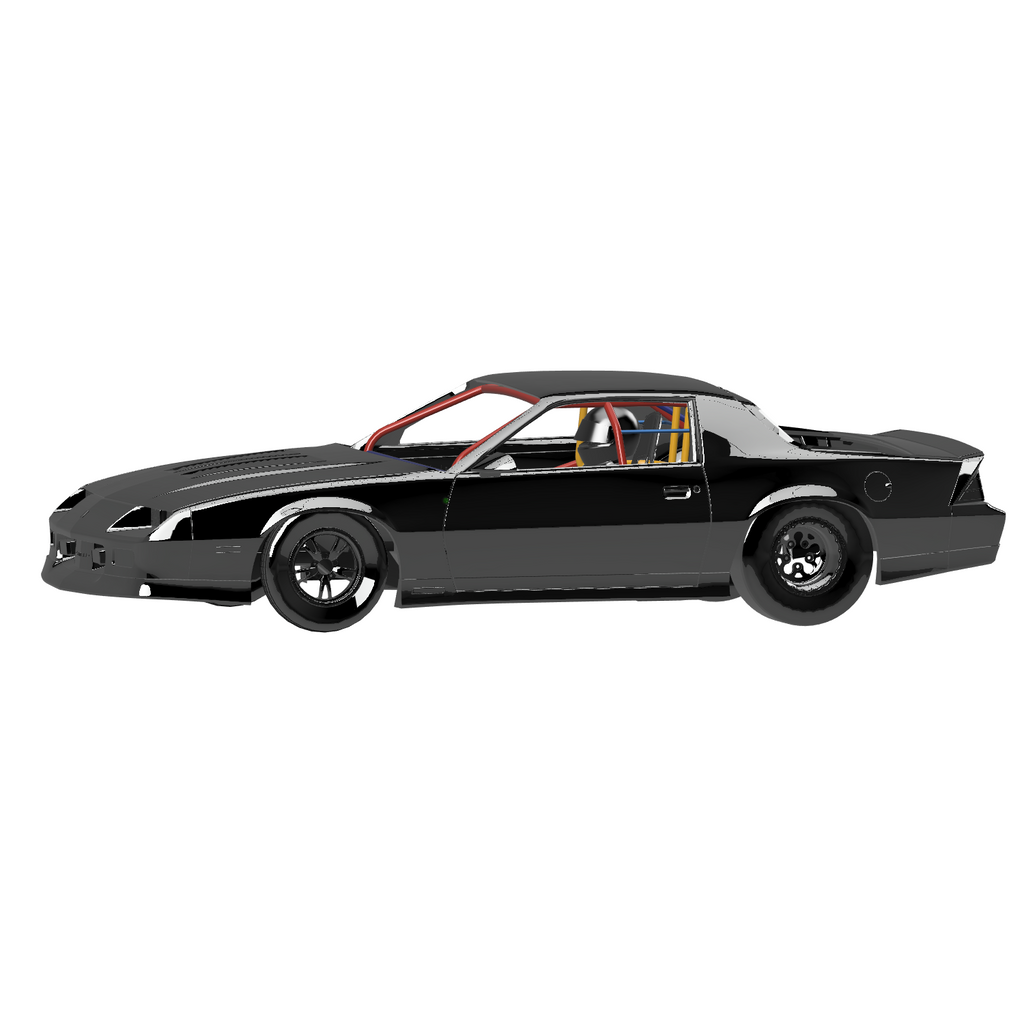

Check out our HRS "Easy install" 25.5 cage!  Designed to get you 7.50 rated without the unnecessary bars or work of cutting the floor or welding a bunch of structure below it.  This style of cage puts almost all the floor structure above the floor so you can install it in your garage like a 8.50 cage.  This kit fits a 1982-1992 Camaro and Firebird with factory T-Tops.  It has the A-Pillar bars routed thru the dash and will certify 25.5 (7.50 seconds at 3600 lbs max). T-Tops still fully functional.  Must have OEM Door hinge pillars, firewall, floors and rockers other wise bars will have to be added to this kit.

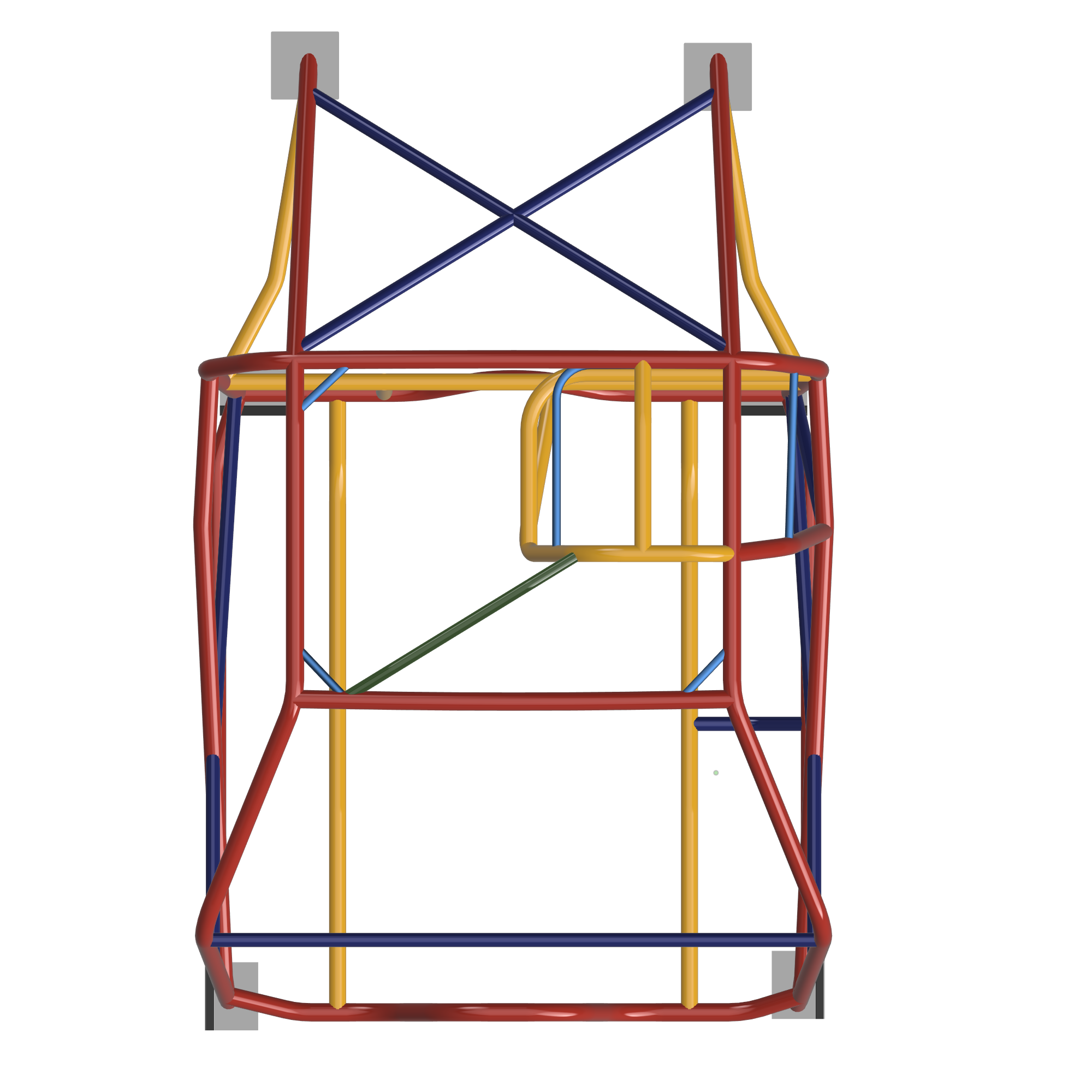

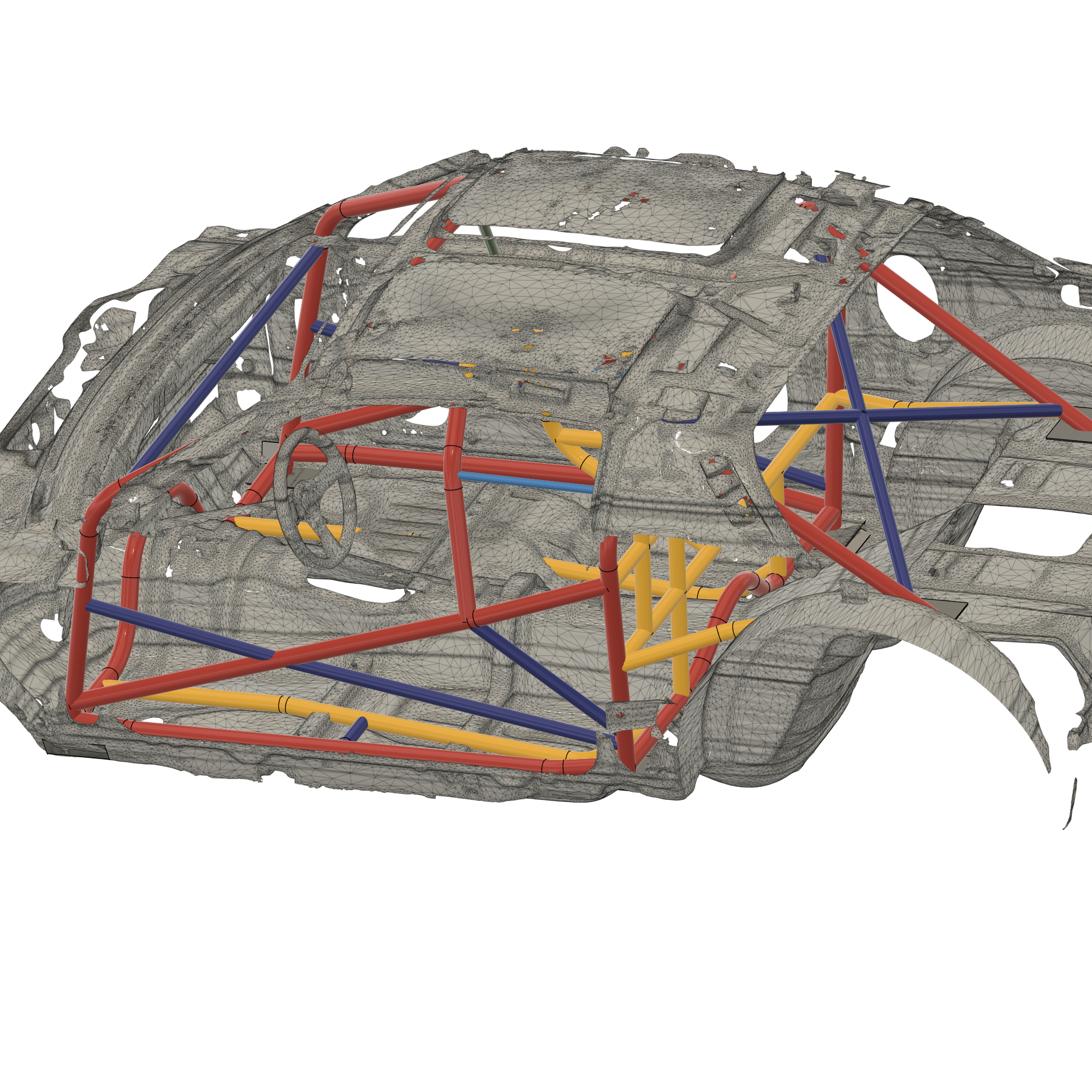

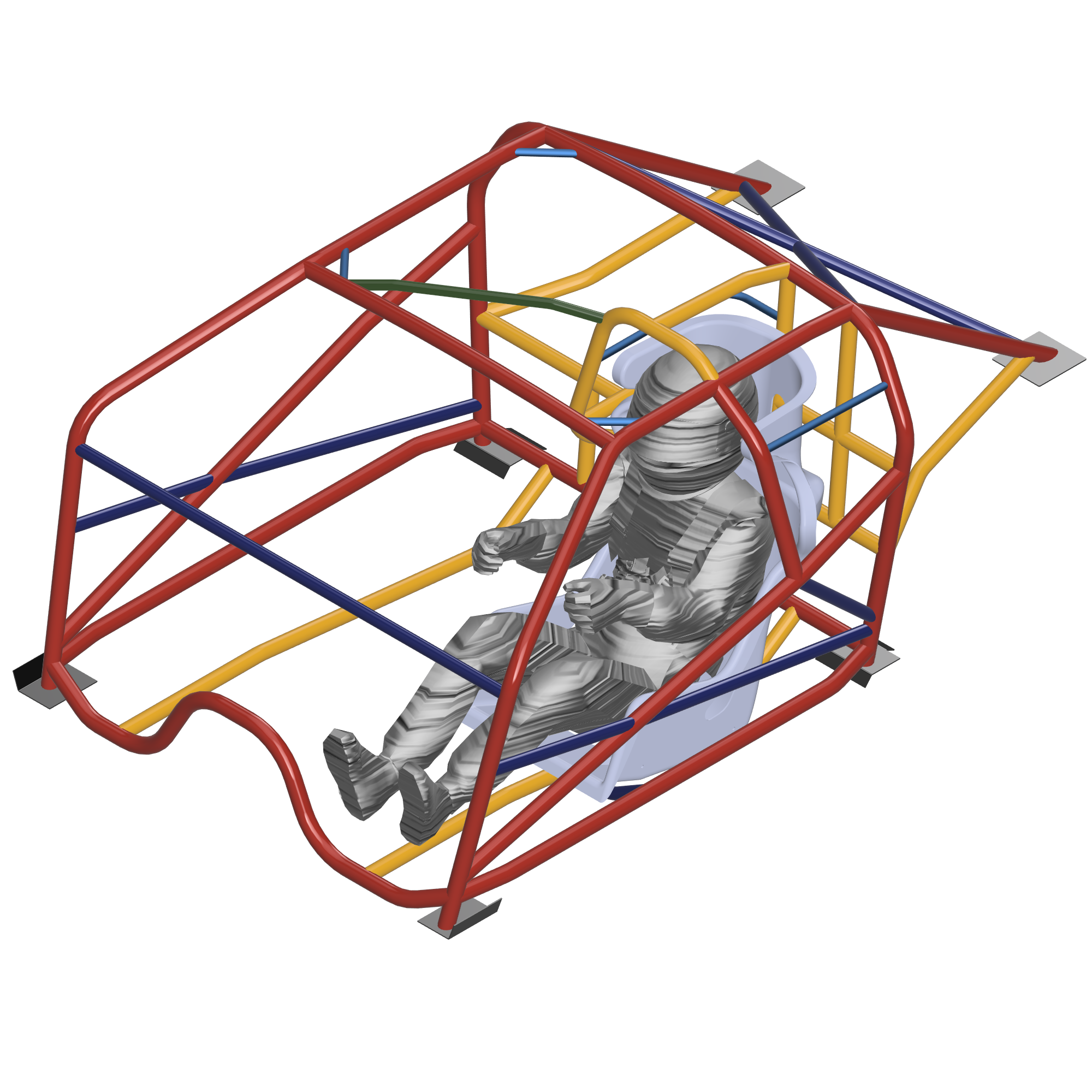

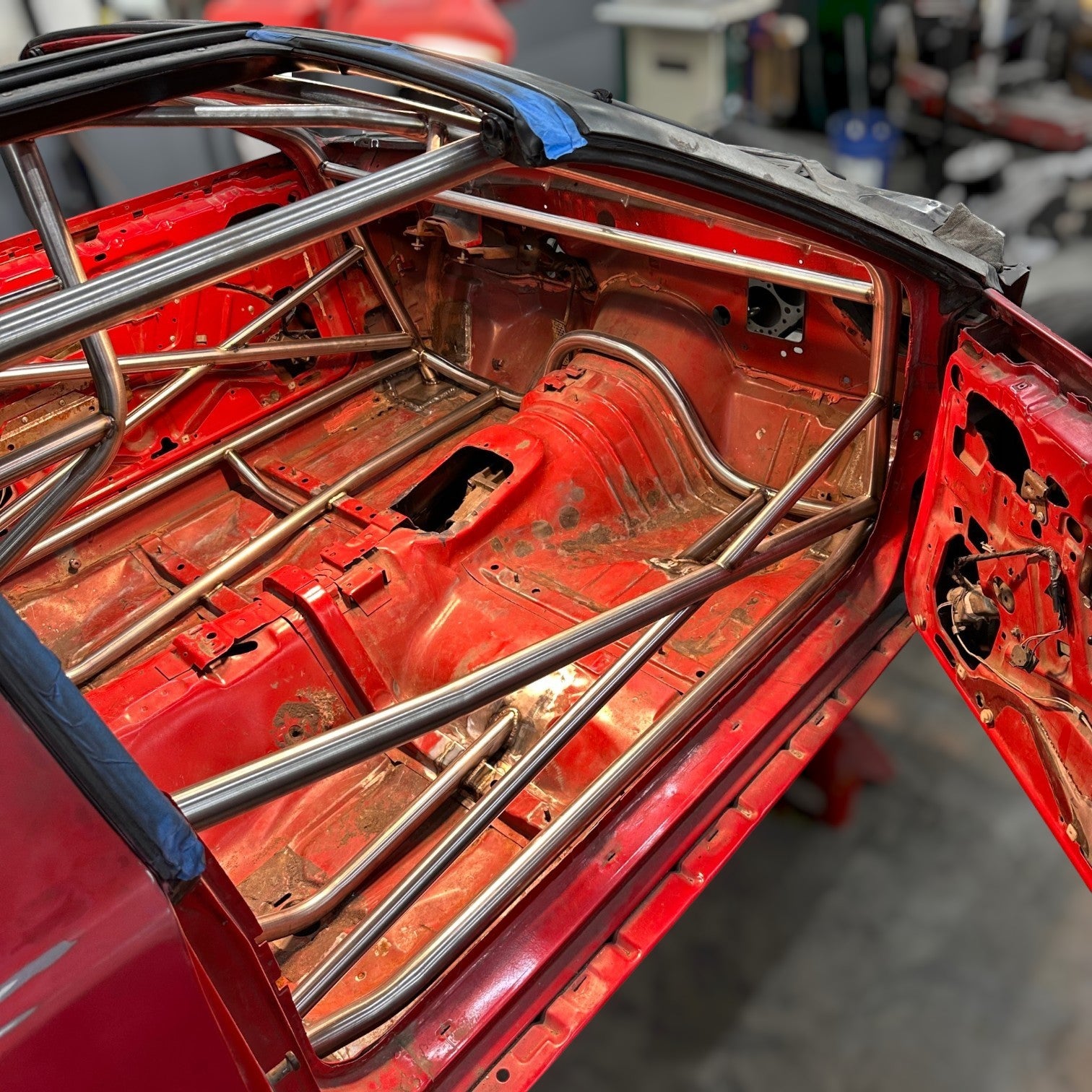

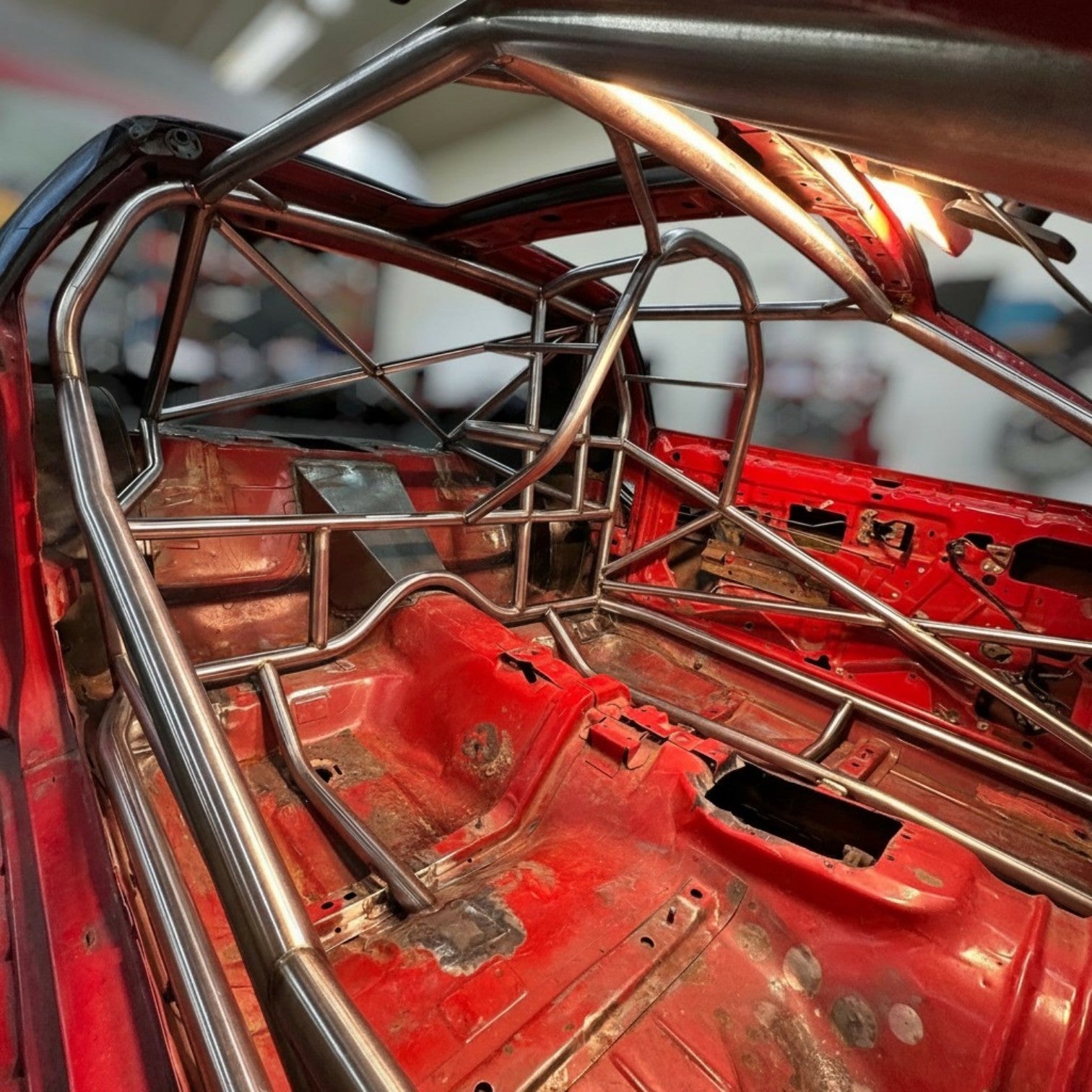

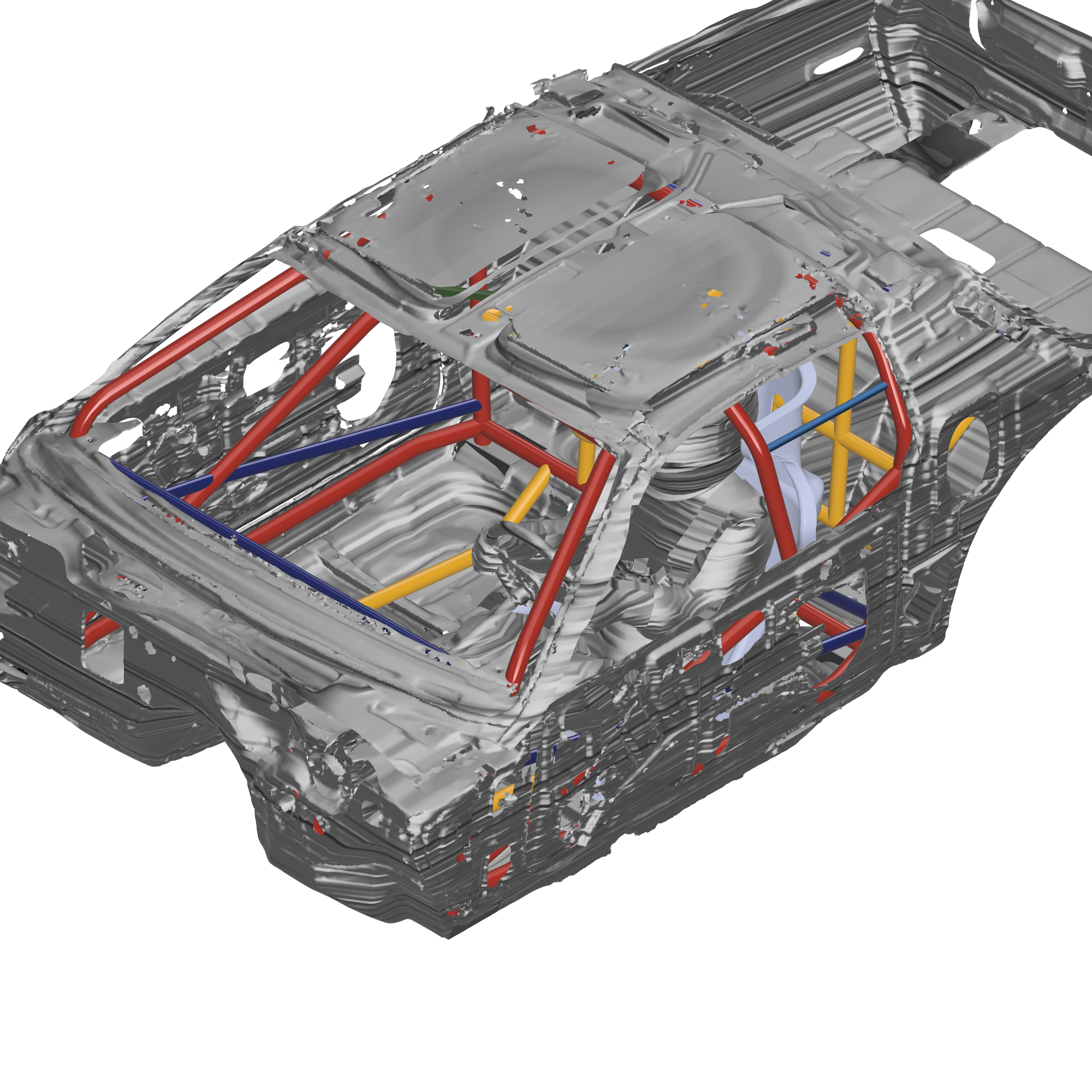

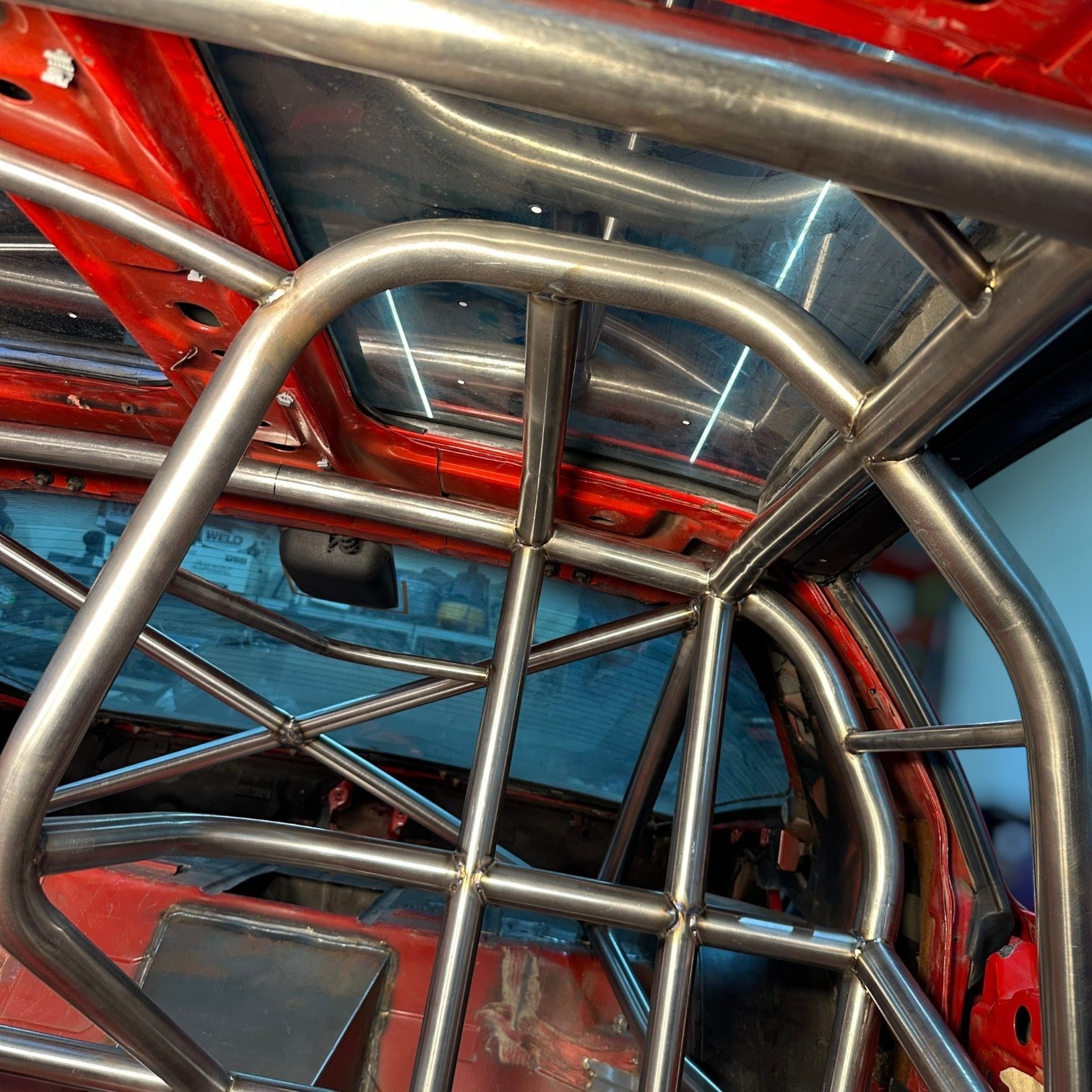

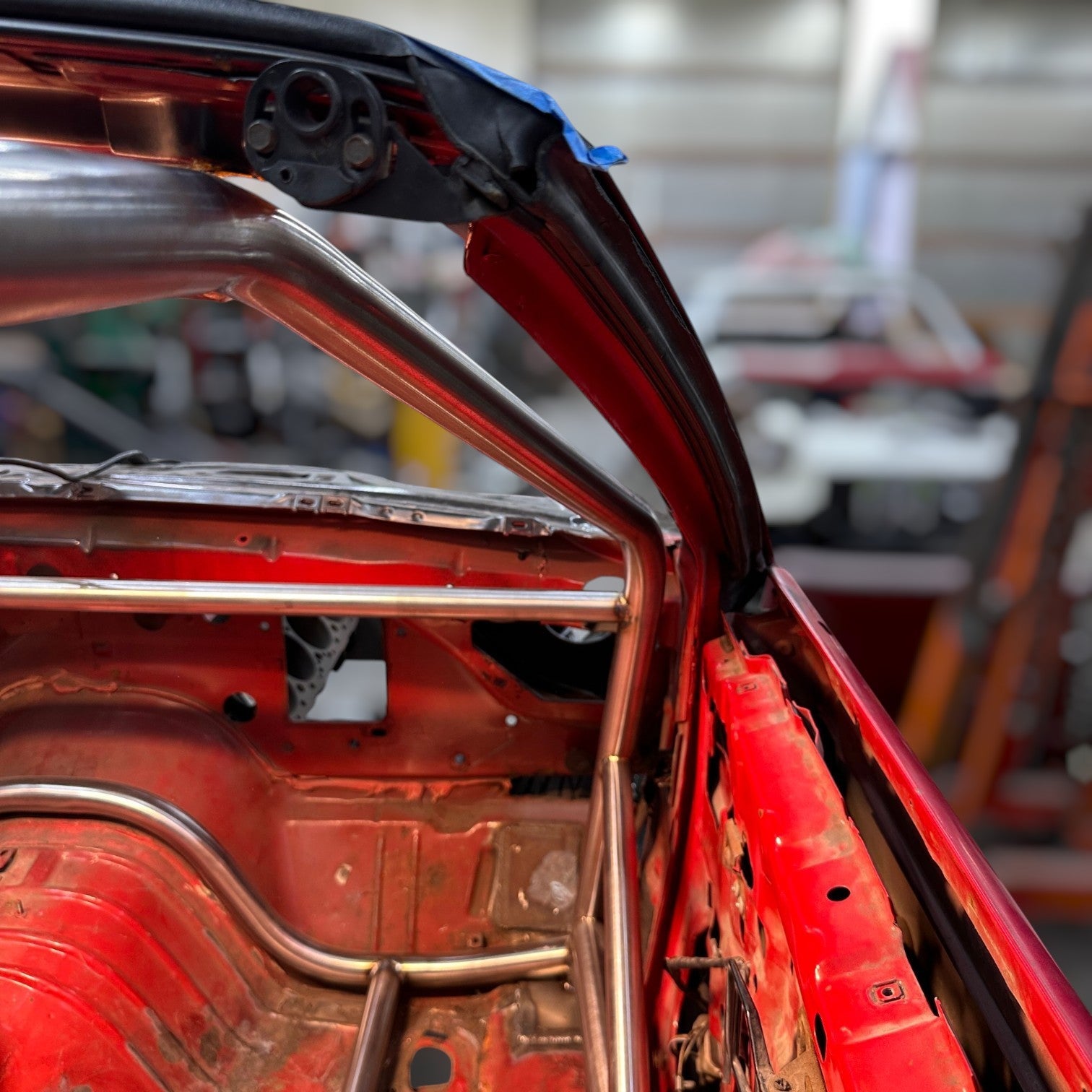

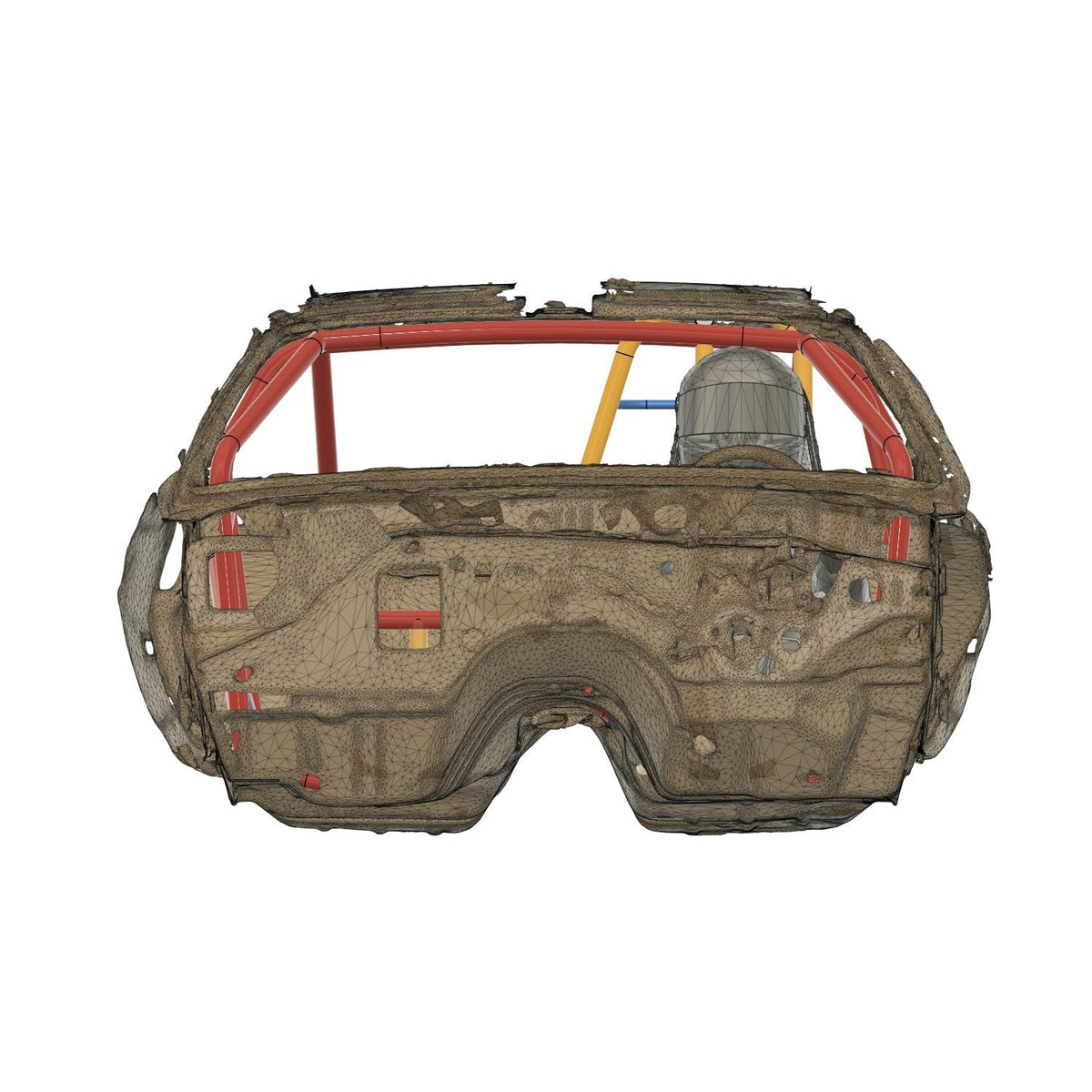

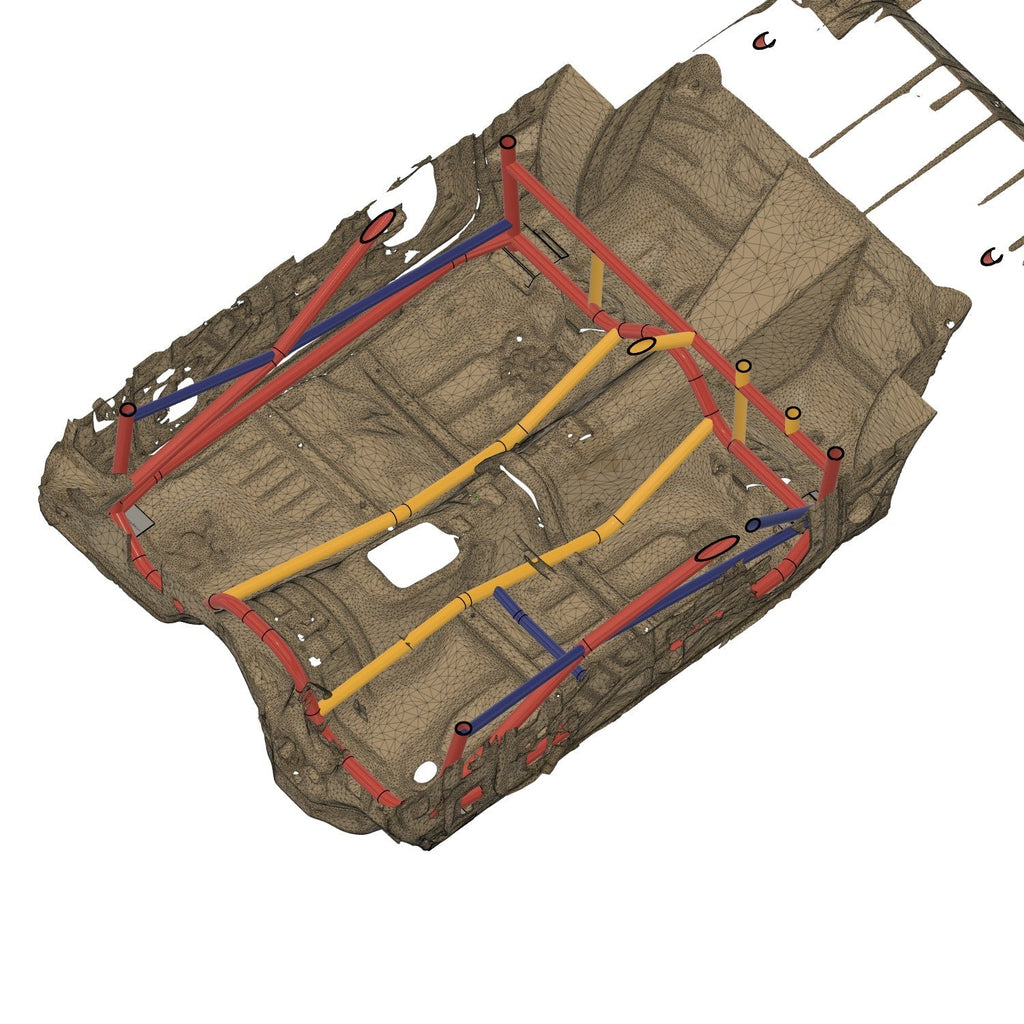

This cage now installs 100% above the floor!  We updated the design to move the inner frame rails completely above the floor to make it even easier for you to build.  Reference all the 3D CAD photos vs the install shots.

HRS 3rd Gen T Top Cage Kit

It is designed to have a tight fit to the roof, A-pillars and doors.  It will be built almost entirely in the car but may be dropped down slightly to help weld it if you put access holes under the floor plates.

Trying to decide what level of cage you need for your hot rod?

Selecting A Roll Cage

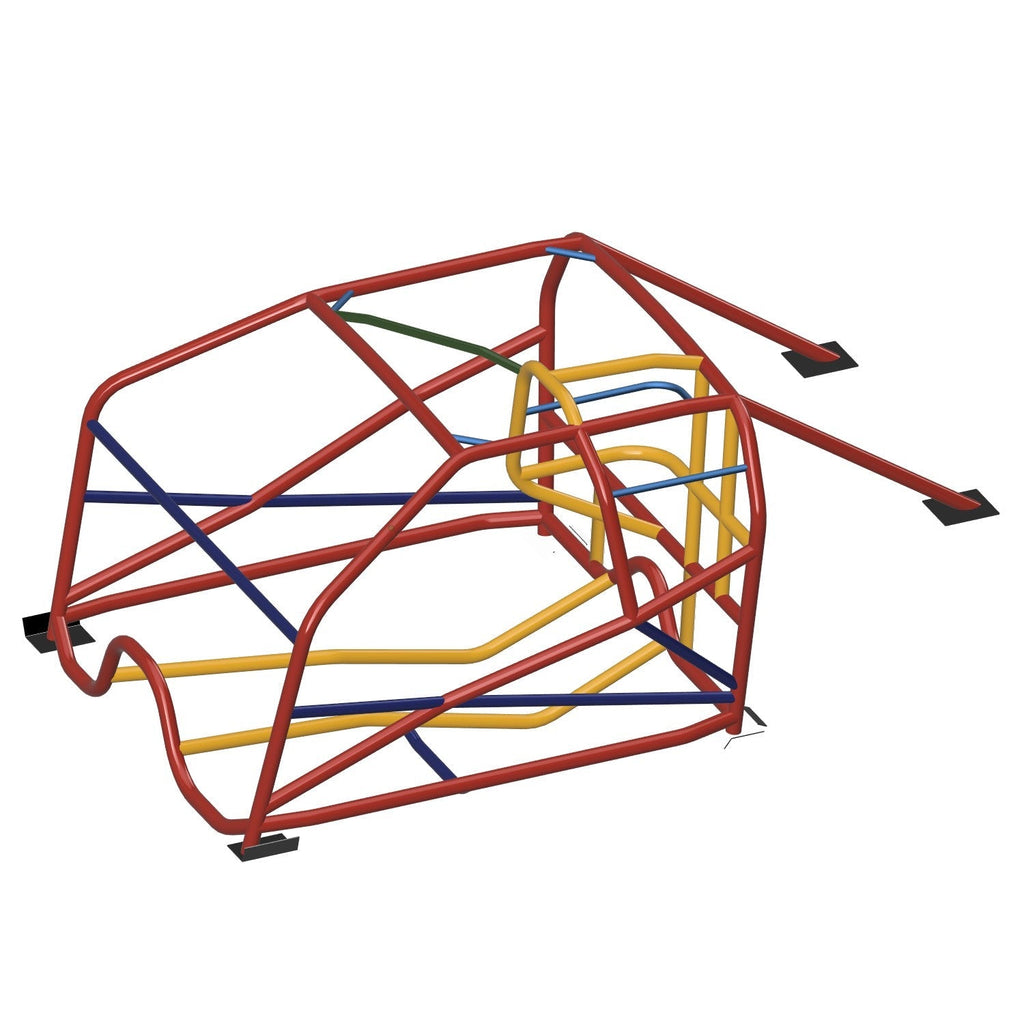

Our Cages are CAD designed from cars we 3D scan to give you a great fit! Only available in 4130 chromoly and should be tig welded.

Configurations Available

  • Door Bars
    • Bent Bars to fit the factory door panel
    • Straight Bars to maximize room for a flat door panel
  • Rear Bars
    • Straight through the rear seat area
    • Bent to clear the rear seat

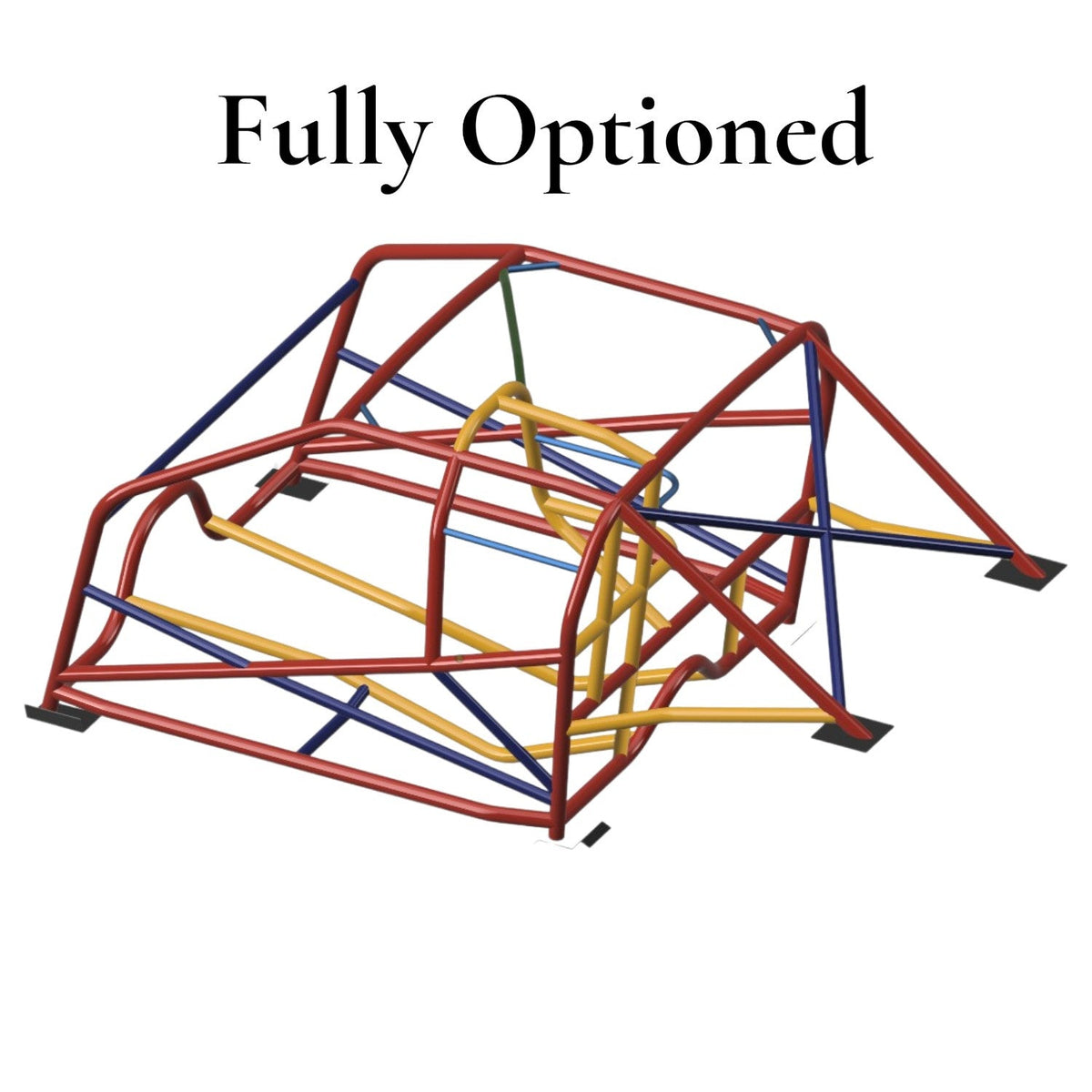

Standard Options

  • Tubes are cnc notched and bent!

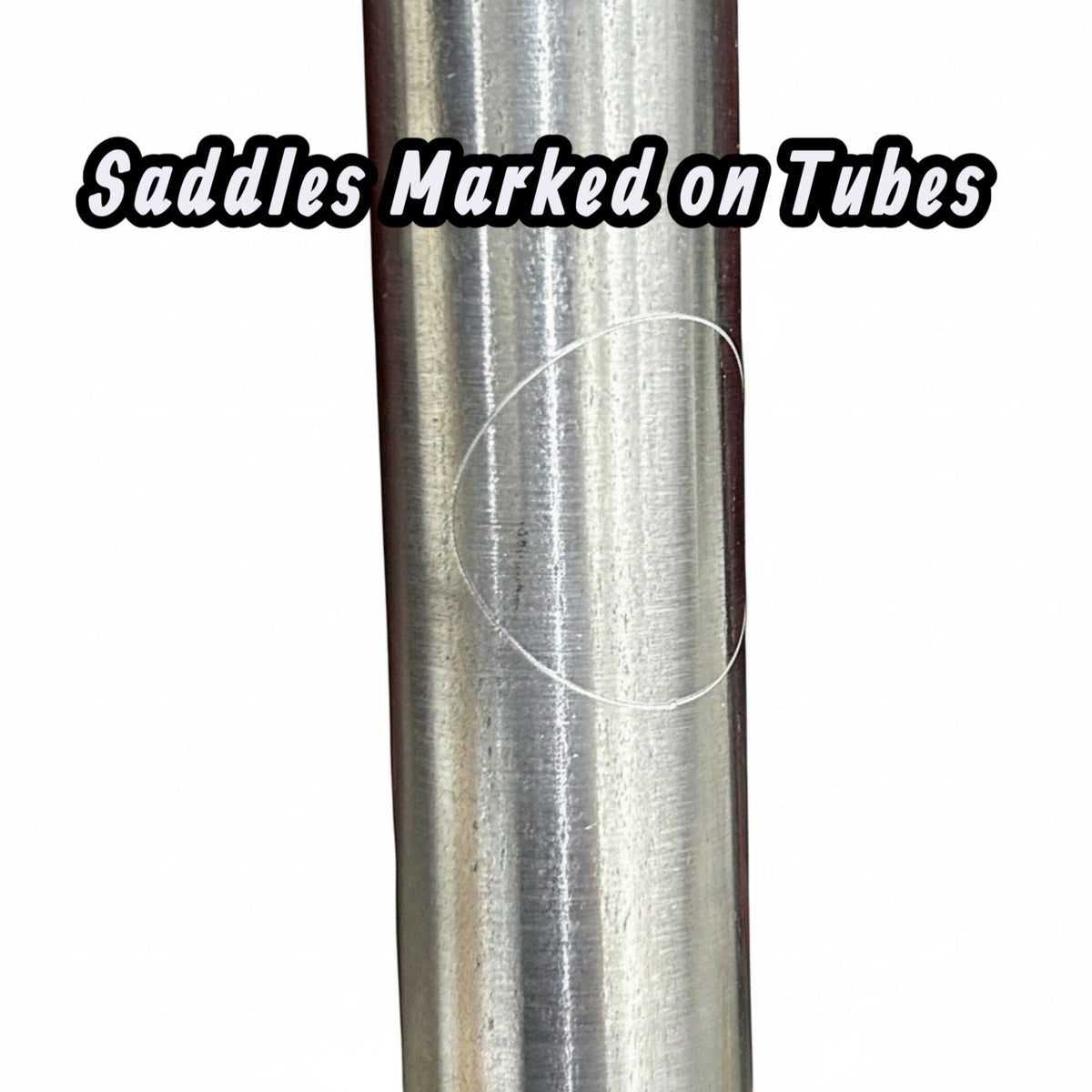

  • We etch the saddle marks into the tubes to show where they land, no measuring! This saves you valuable time fitting the assembly together.
  • We also etch a mark in the middle of the main hoop to quickly center it to your chassis.

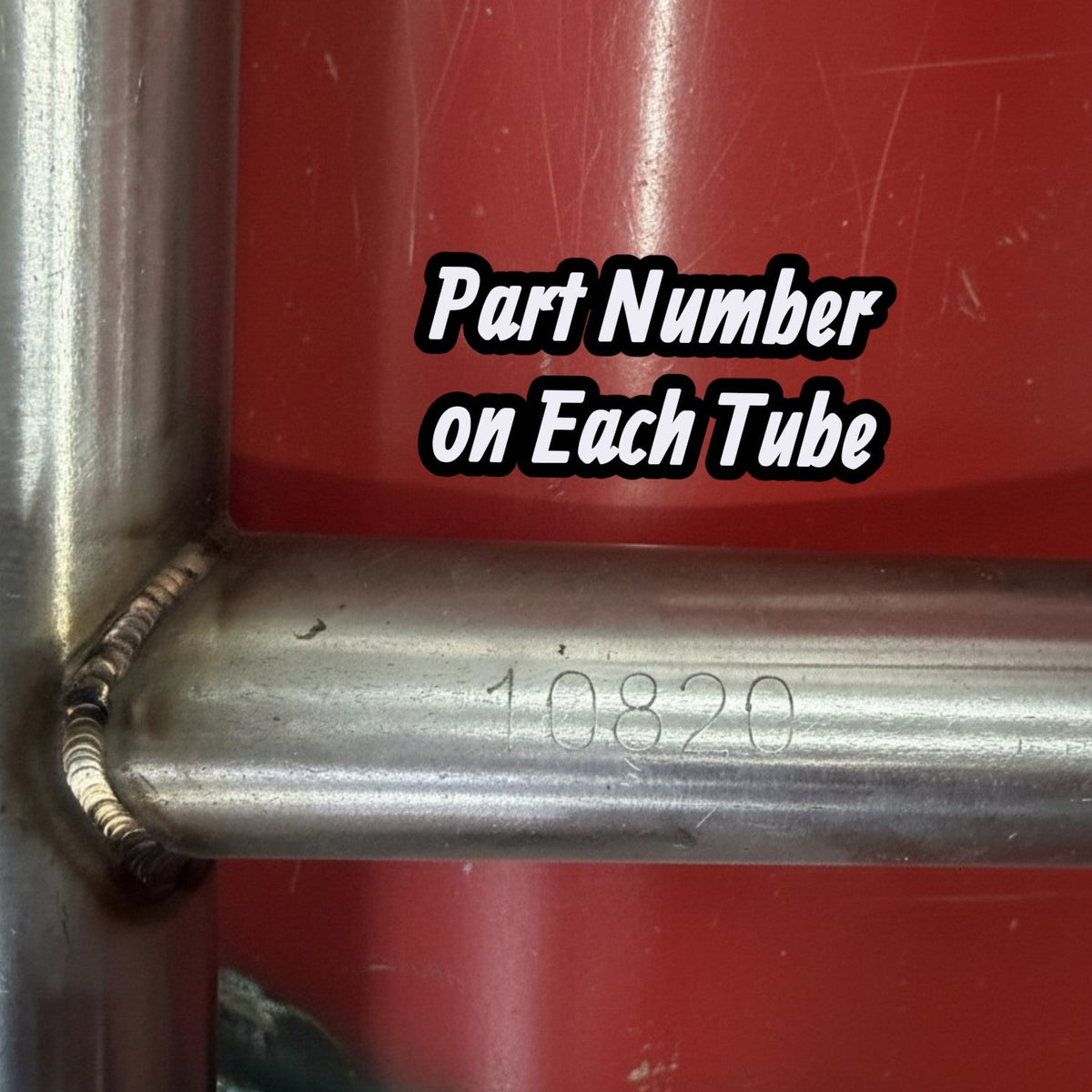

  • Each tube has a specific part number etched in it so you can quickly locate it in you instructions.

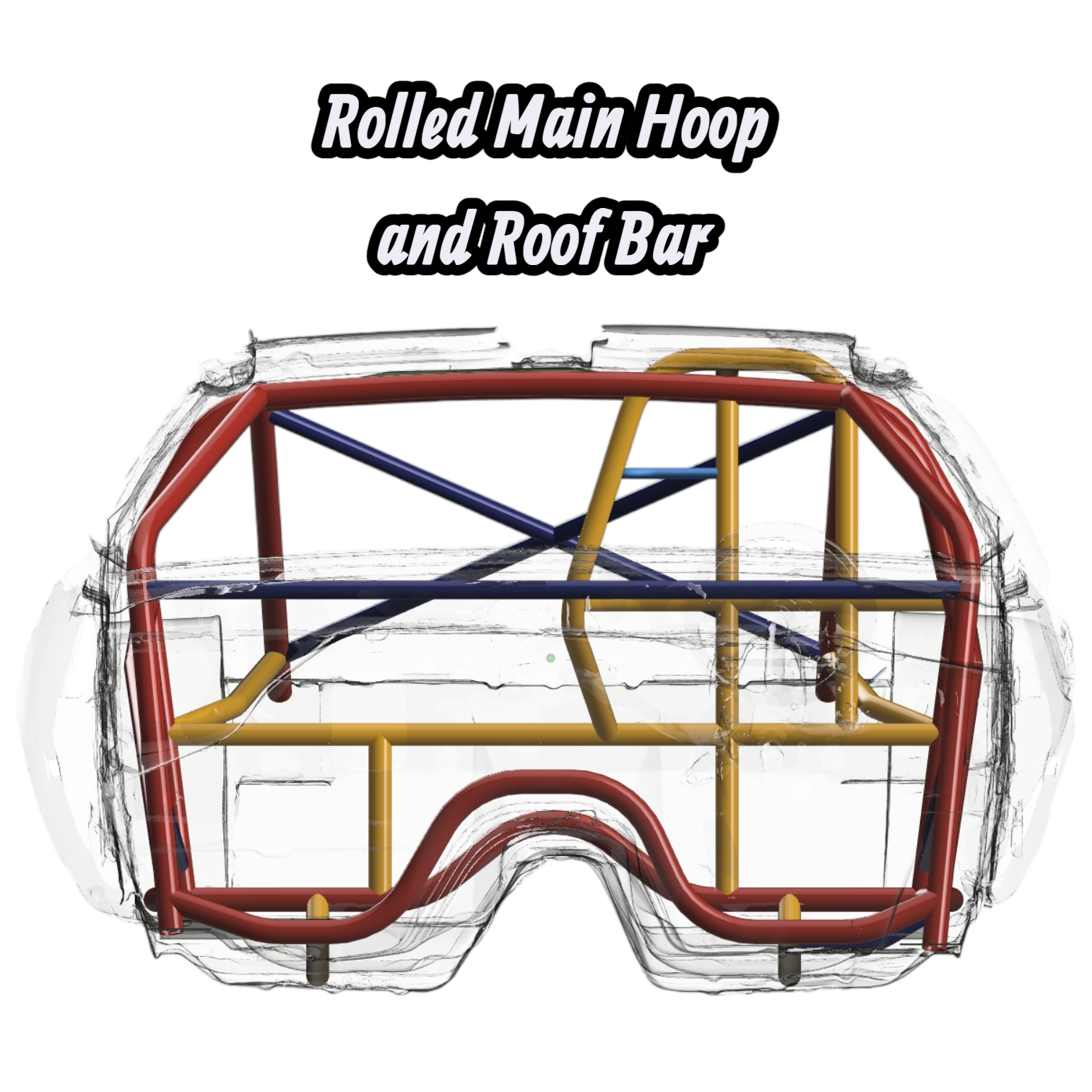

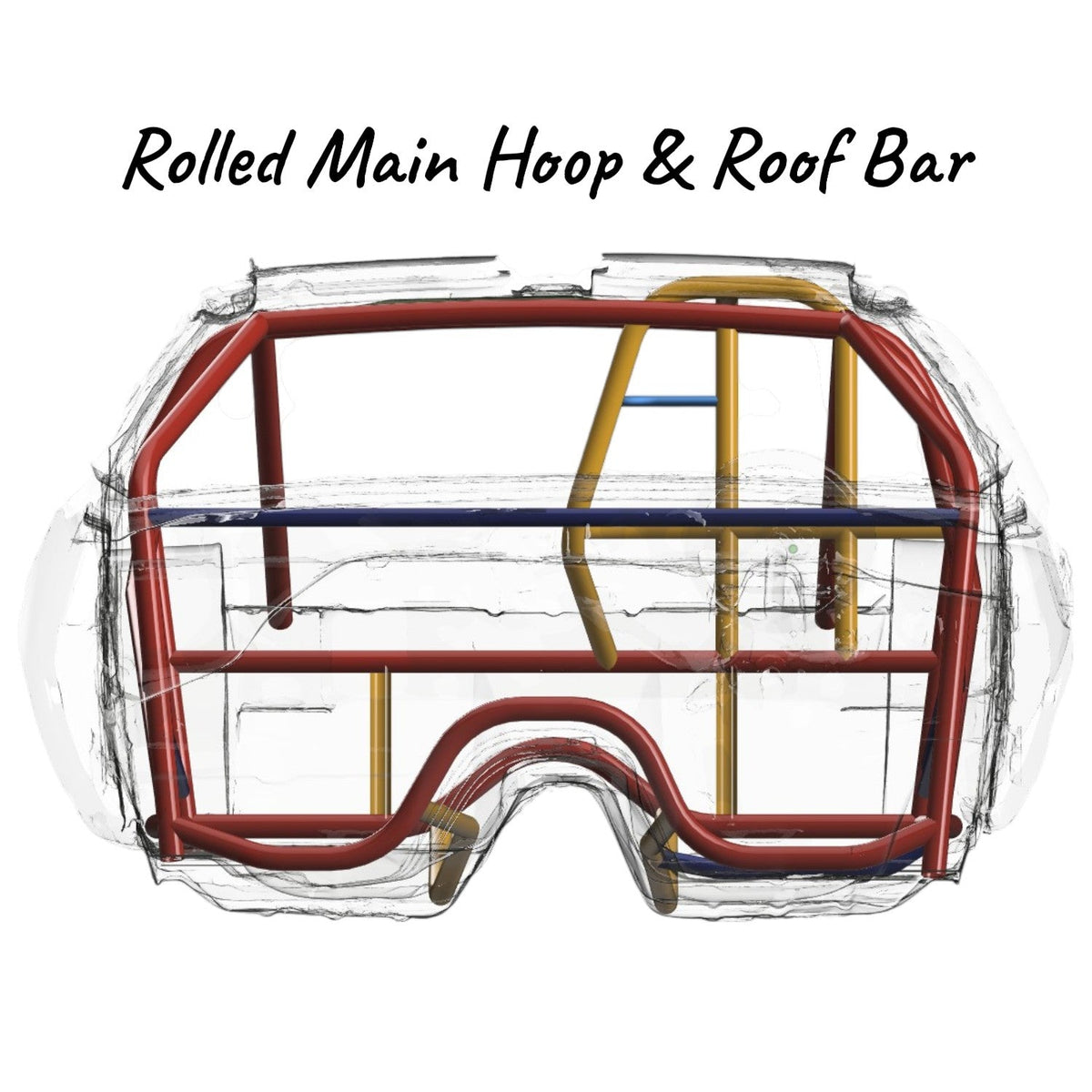

  • Main hoop, roof bar and optional roof diagonal come “rolled” for a natural fit to the roof line.
  • 1-piece A-Pillar bars make is easier to assemble and saves on welding.
  • Comes with Floor Plates.

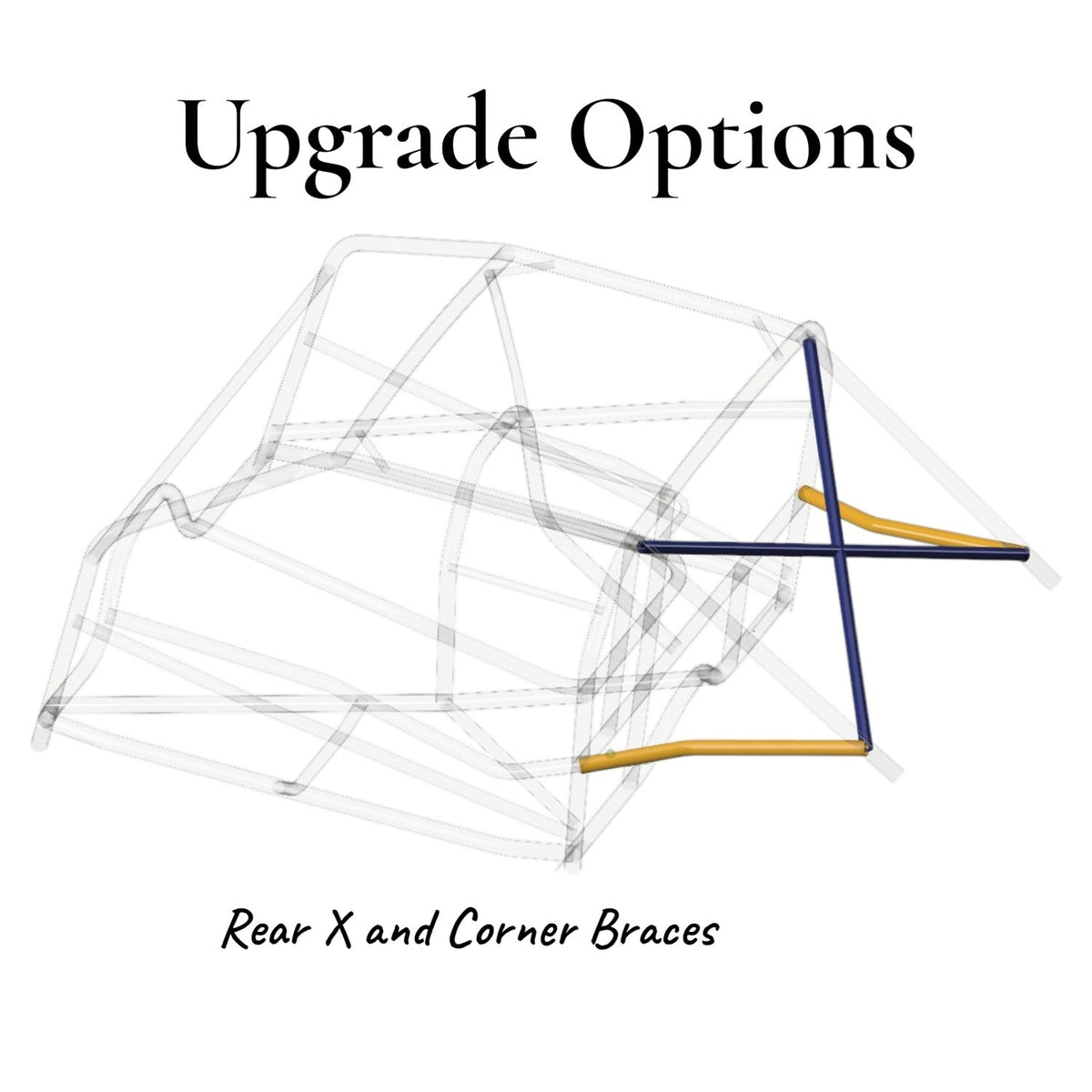

Upgrade Options

  • Corner Brace
    • Ties cage to rear bar by tubs

Additional Options

  • Get your kit “Fully Prepped”
    • Tubes are fully polished are ready to weld. This also makes them ready for paint.
    • Saddles are hand barrel sanded.
    • Inside of tube is sanded near the weld zone.
    • Outside of tube is deburred.
  • Custom floor plates available to make installation easy.
  • Cages can be customized to fit your specific needs, check the drop downs or contact us.

Click the link below for popular items you may want with your cage!

Roll Cage Accessories

Kirkey and Racetech Seats

Shipping

  • We use oversized pallets made to ship your cage.
    • Tubes are banded and screwed to pallet
    • Entire pallet is protected with shrink wrap
    • A packing list is included for tubes ordered
  • We ship flat rate LTL in the US 48 contiguous states,
    • You will need a commercial location with unloading capability
    • Additional charge for residential
    • Custom shipping quotes made for other destinations
  • No returns on roll cage purchases
