Wall Mounted Metal Rack Plans

Wall-Mounted Metal Storage Rack – DXF & STL Digital Files

We originally designed this wall-mounted metal storage rack for our own shop, and it worked so well we decided to make the files available to you.

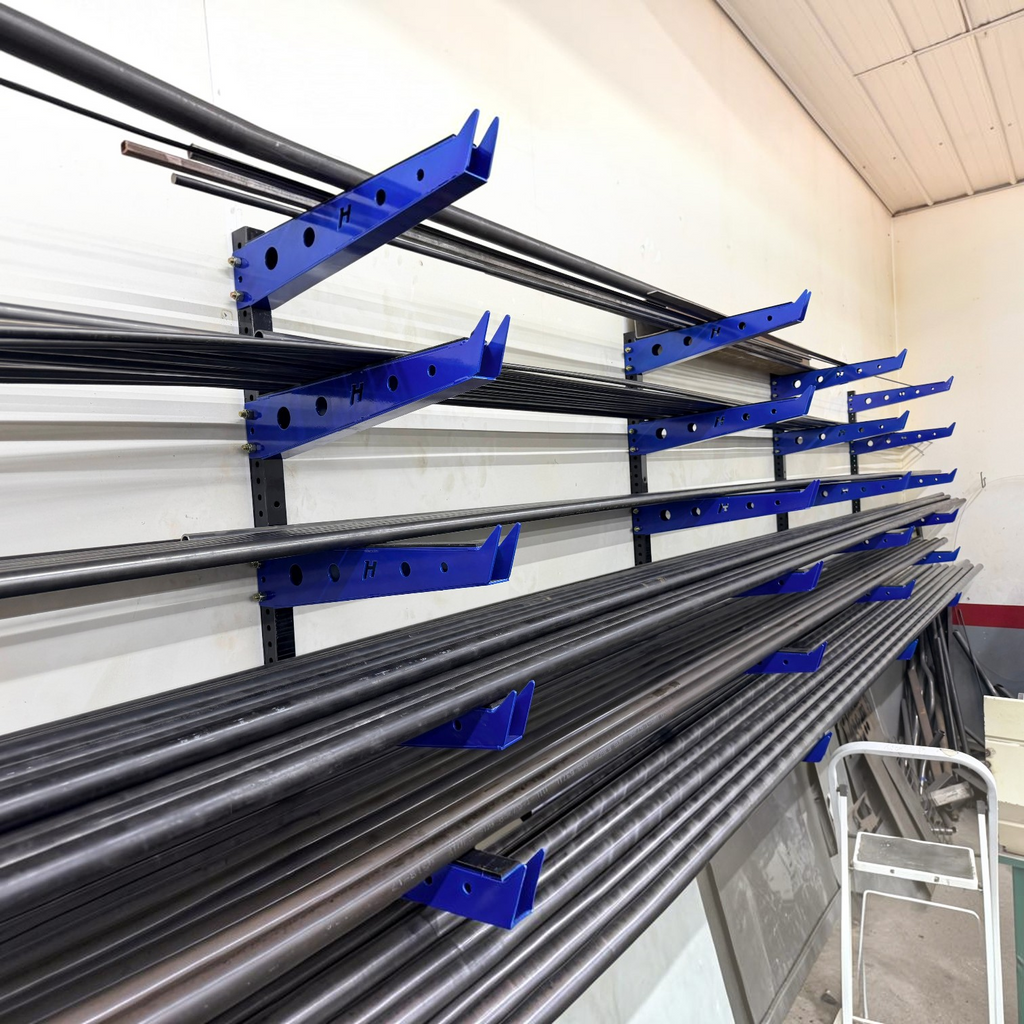

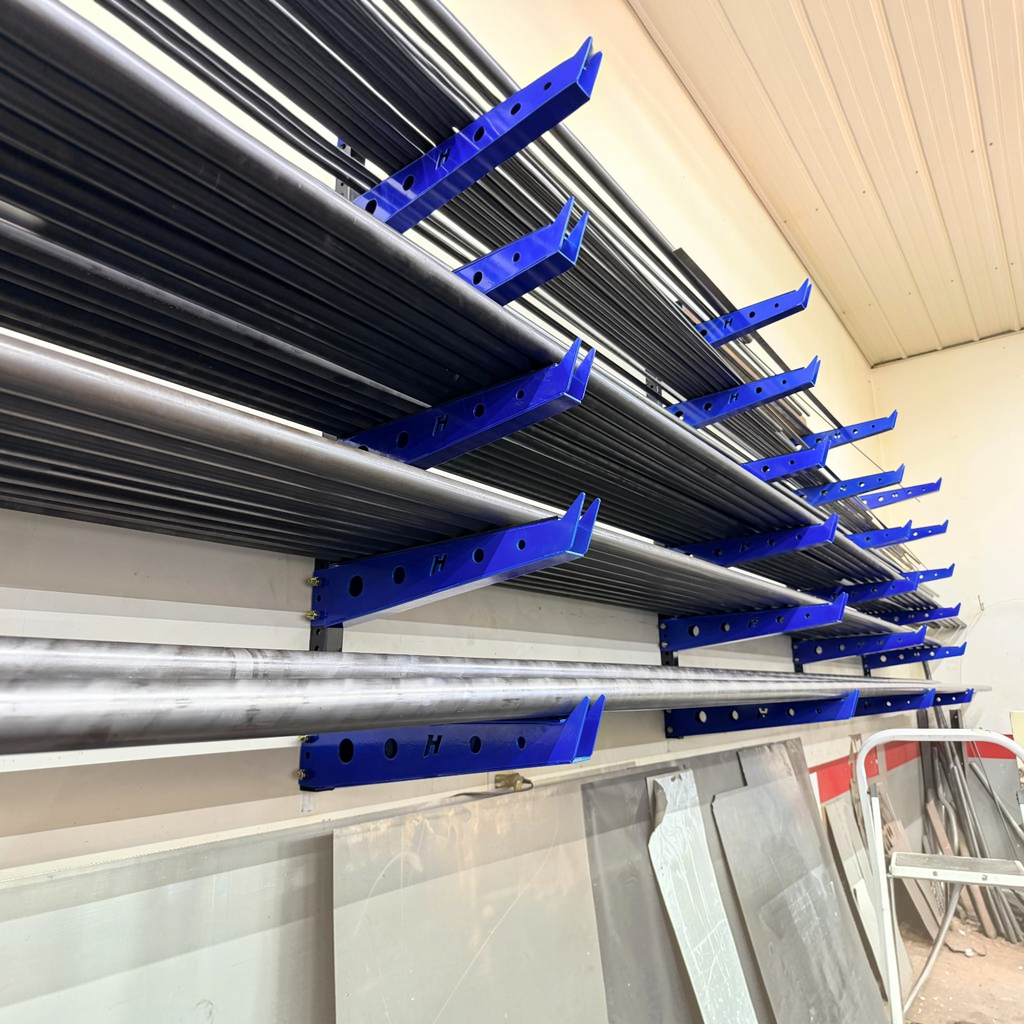

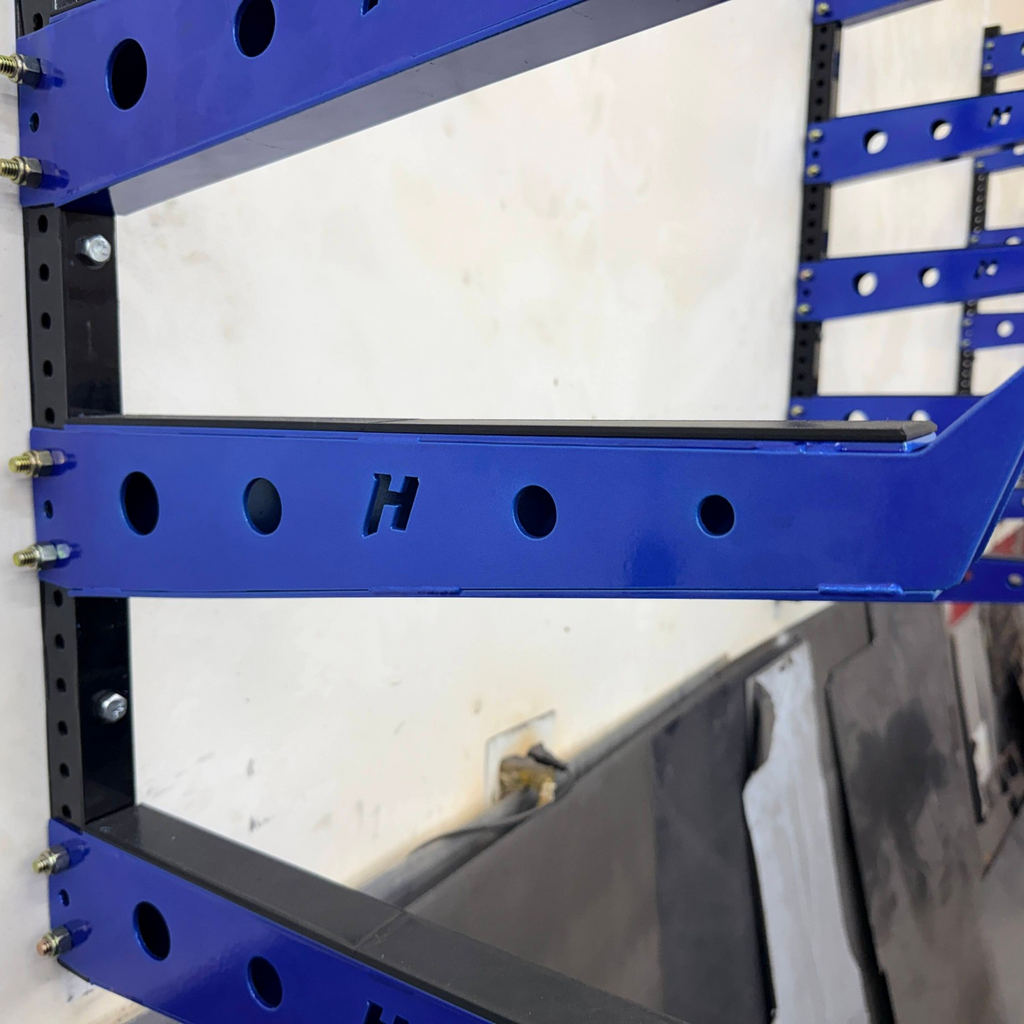

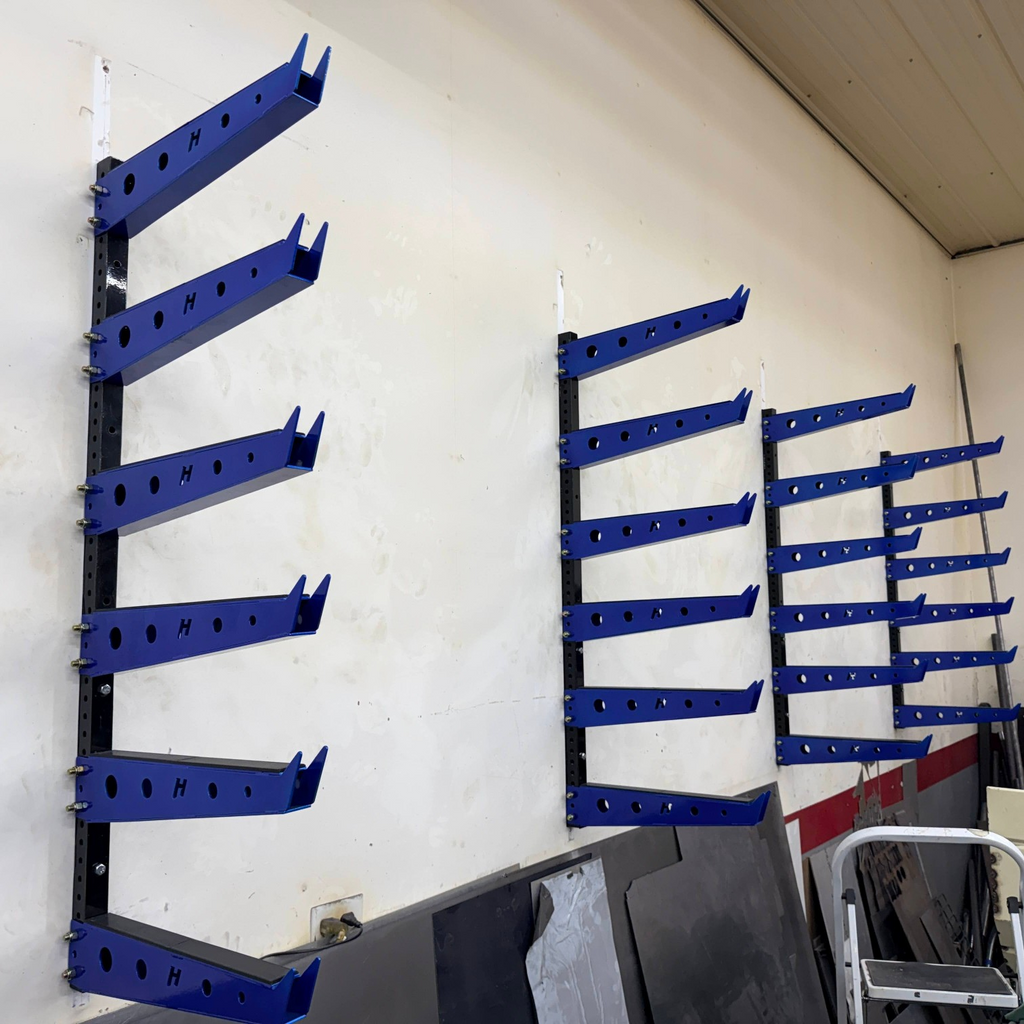

This rack is designed to be fabricated from 11-gauge steel using a CNC plasma table or laser. The 18" arms provide plenty of storage for tubing, sheet metal, trim, lumber, and other long materials while keeping them organized and off the shop floor.

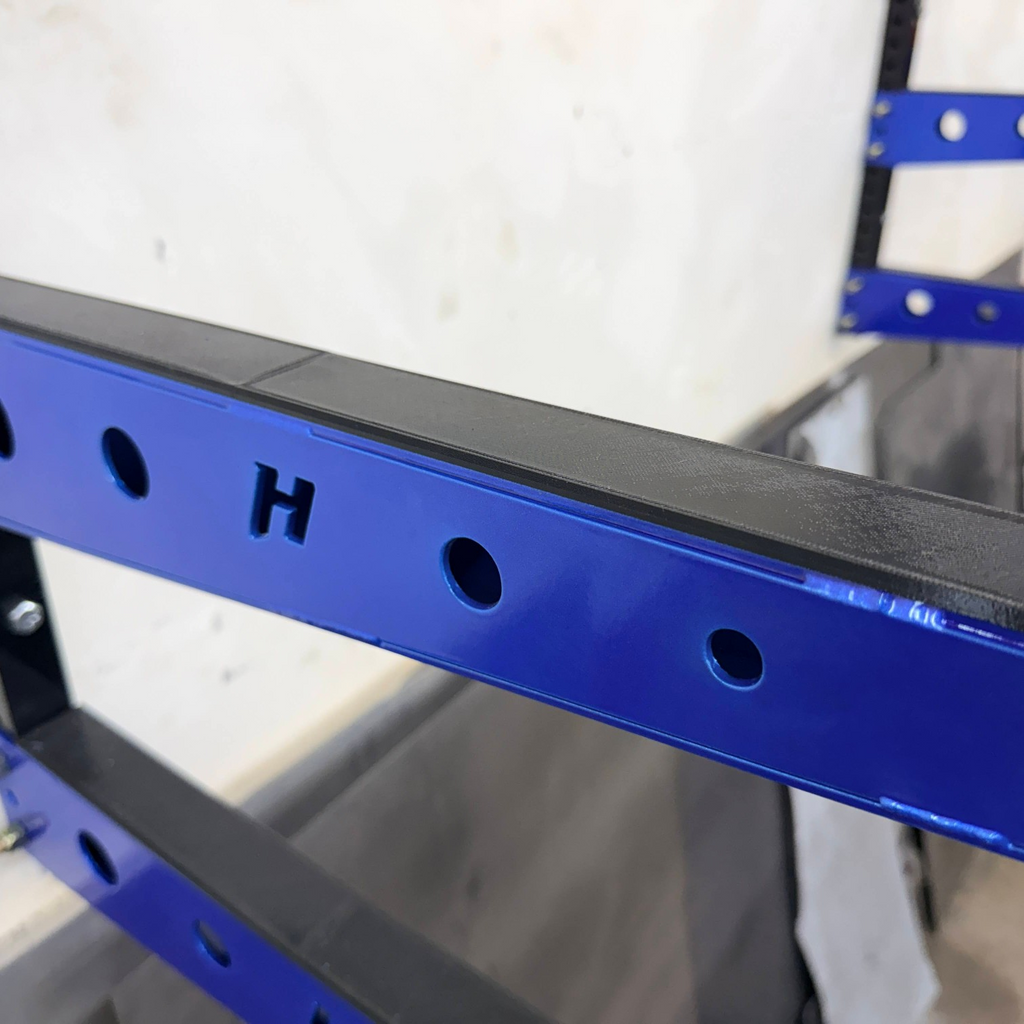

Your download also includes an STL file for 3D-printable protective arm covers. We print ours from TPU and attach them with adhesive tape to help protect stored material from direct metal-to-metal contact.

Included Files

• DXF files for the rack arms and wall-mounted uprights

• STL file for the protective arm covers

• Designed for CNC plasma or laser cutting

• Designed around 11-gauge steel

• 18" long storage arms

• Protective covers designed to be 3D printed from TPU

• Covers can be secured using adhesive tape

• Designed and used in our own shop

DIGITAL PRODUCT — NO PHYSICAL PRODUCT WILL BE SHIPPED.

After purchase, you will receive the files needed to fabricate your own rack. Cutting, forming, welding, hardware, 3D printing, and installation are the responsibility of the purchaser.

Important: The rack's load capacity depends on the material, fabrication quality, mounting hardware, wall construction, spacing, and installation.
