Transmission Output Splined Alignment Tool

Transmission Output Shaft Plug & Handle

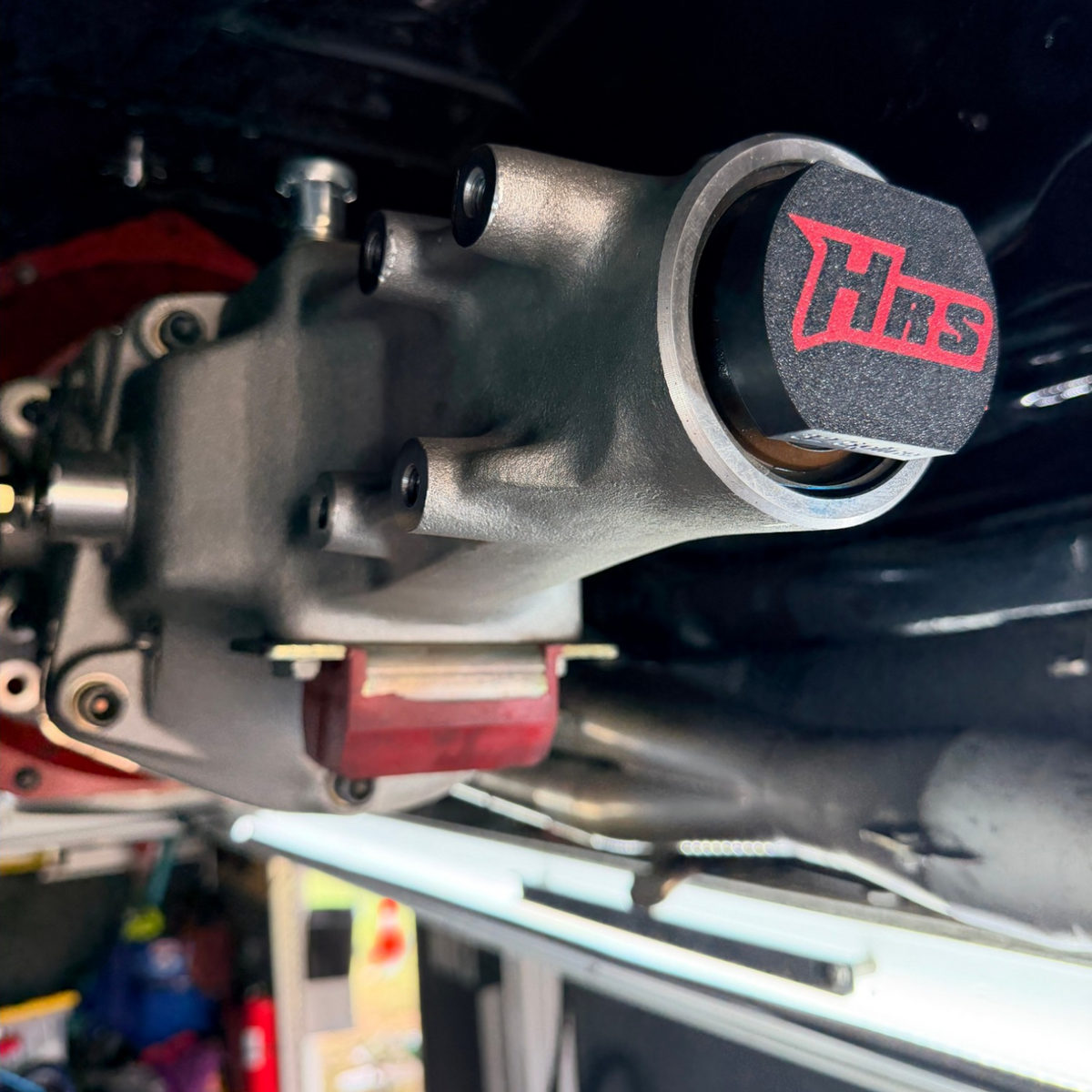

Designed and 3D printed for a direct fit on your transmission output shaft, this simple tool serves multiple purposes in the shop, during storage, and when installing your transmission.

Unlike a basic transmission plug, the internal profile is splined to engage the output shaft, allowing you to rotate the transmission output by hand. This makes it especially useful when trying to align the input shaft during transmission installation.

Features

• Helps prevent transmission fluid leaks during storage or transport
• Doubles as a convenient carry and handling aid

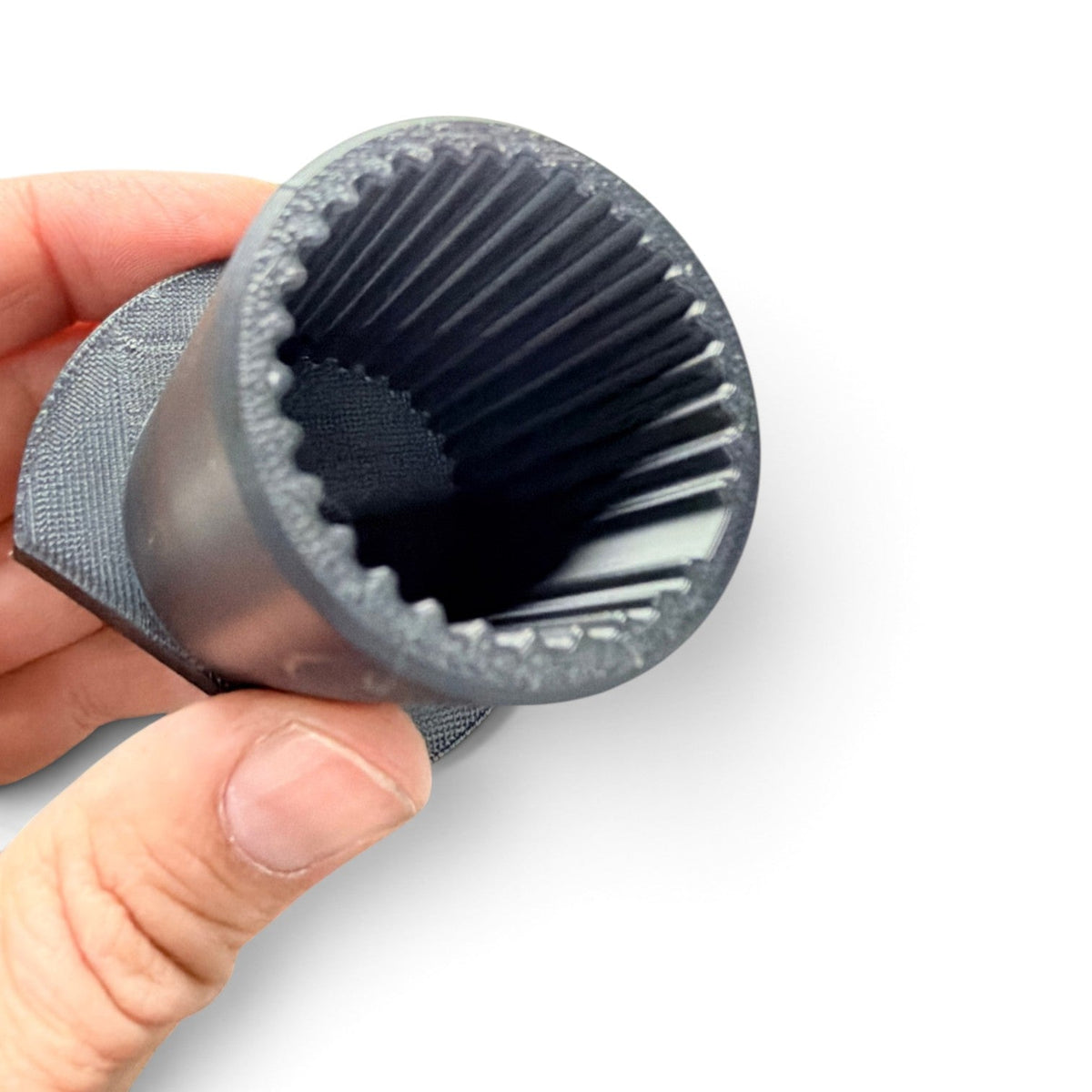

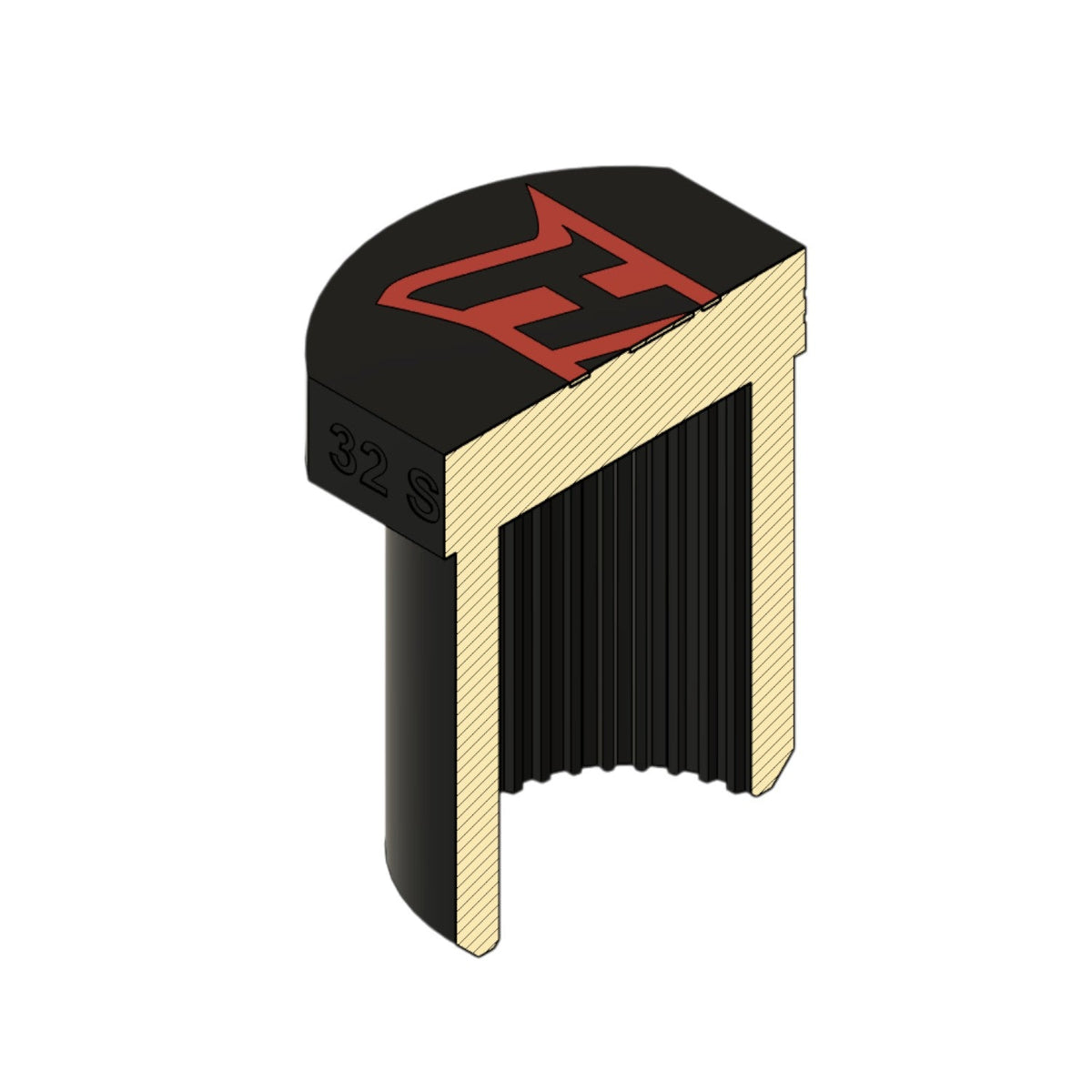

• Internally splined to engage the transmission output shaft
• Allows you to rotate the output shaft by hand to help align the input during installation
• Direct-fit design locates on the proper yoke/output shaft diameter

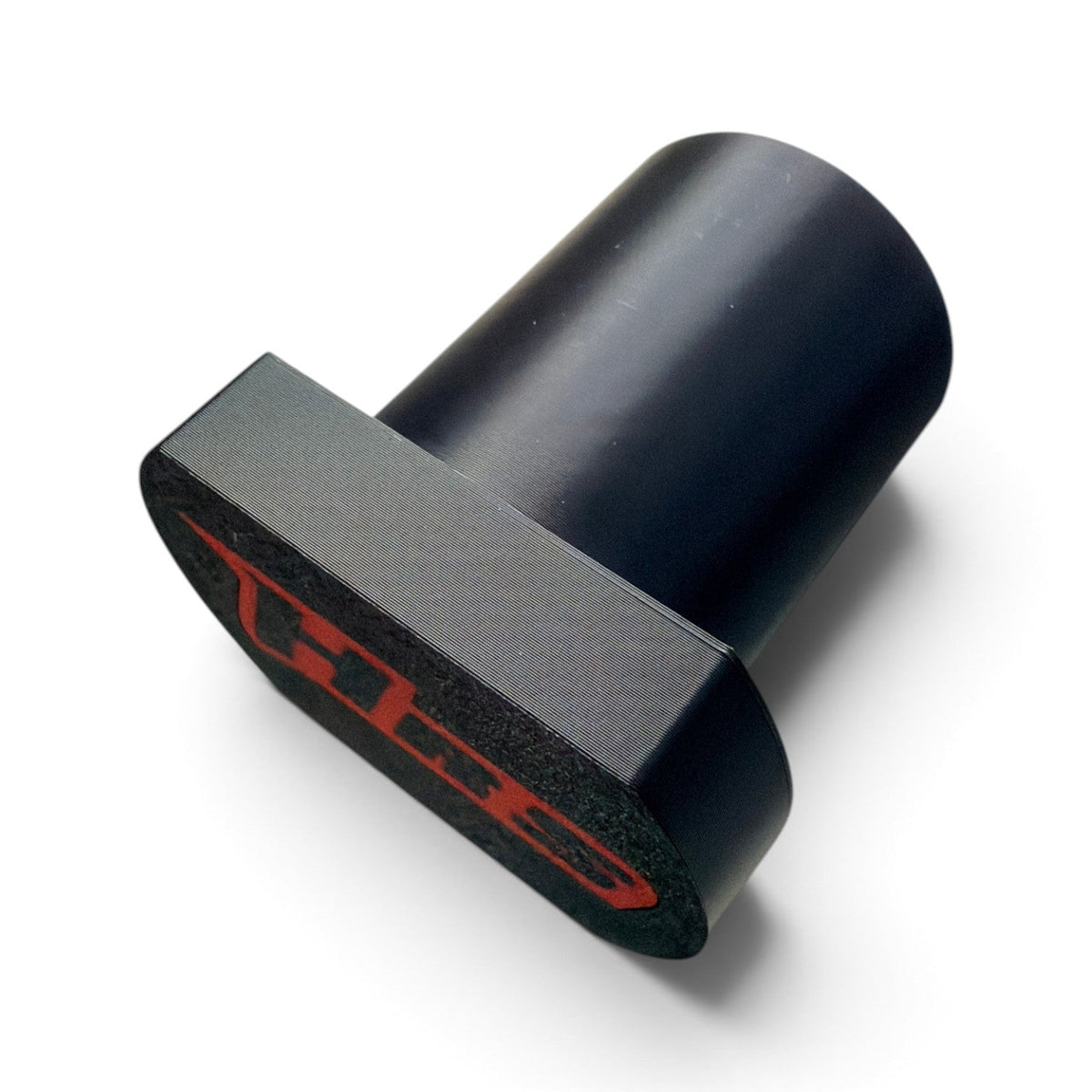

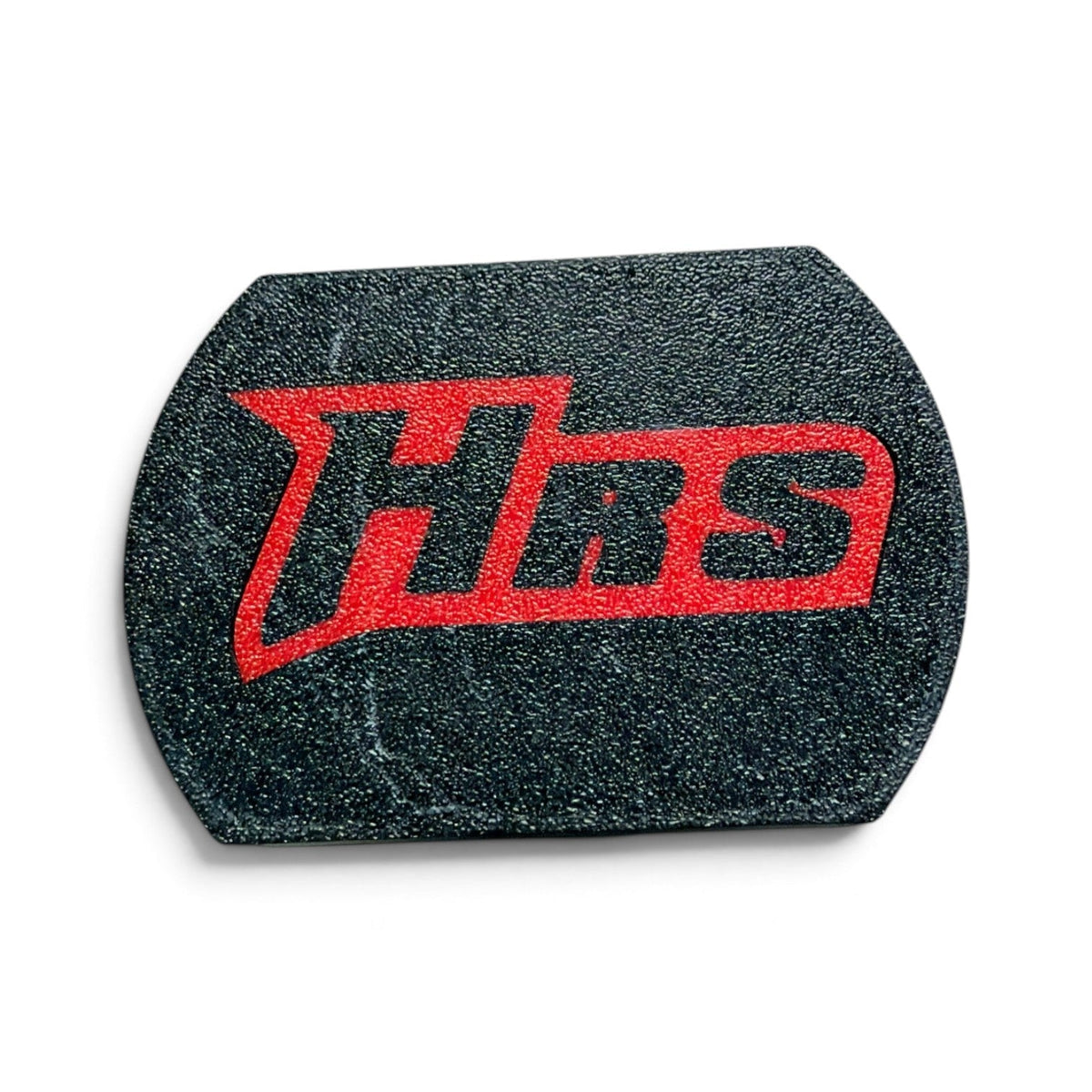

• Large HRS grip makes it easy to install, remove, and turn

Currently Available

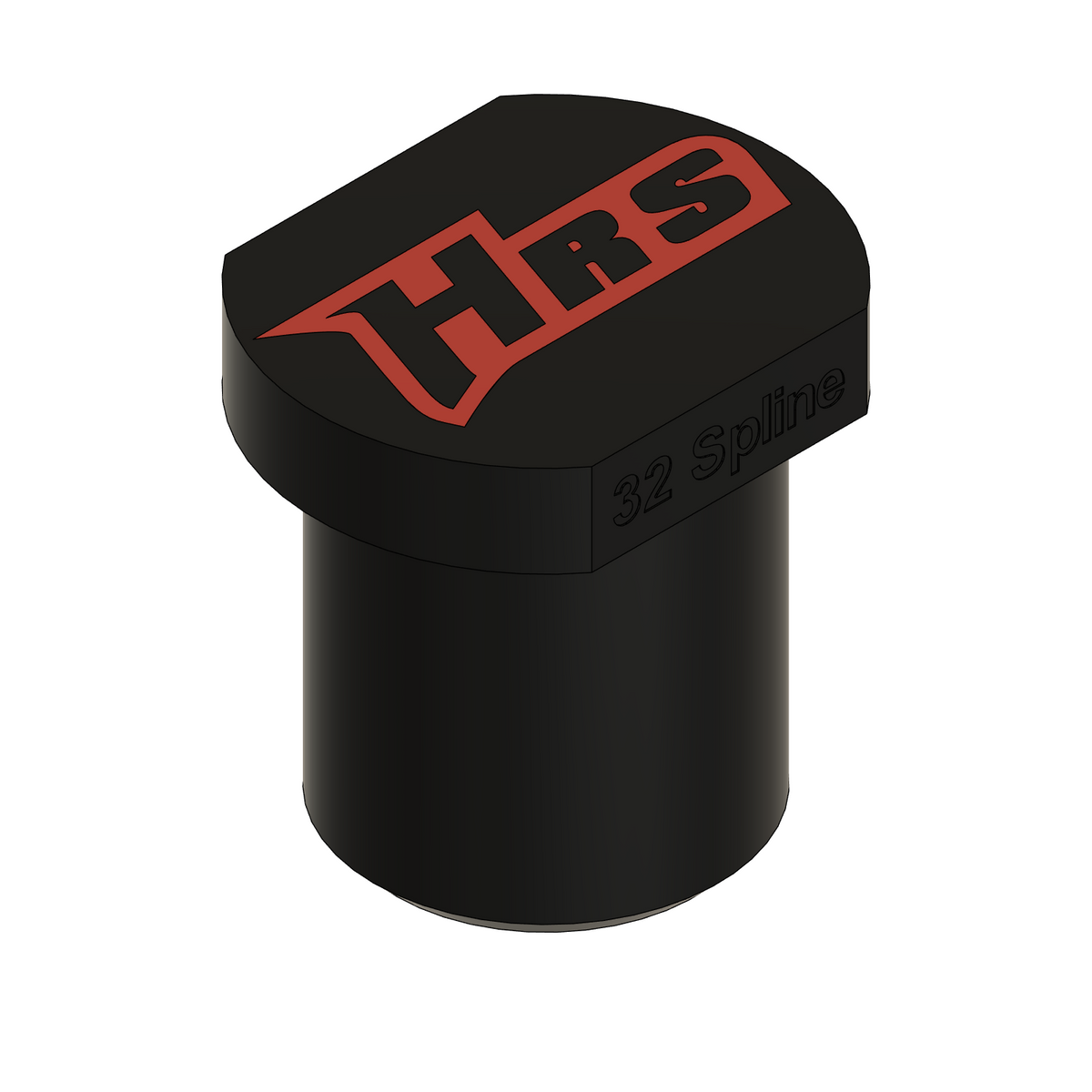

• 32-Spline — Turbo 400-style yoke
• 31-Spline — T56 Magnum / C6-style yoke

Need a different size? We may be able to make one for your application. Please provide your spline count and yoke outside diameter (OD) when ordering or contacting us.

One tool. Three jobs—seal it, carry it, and turn it.
